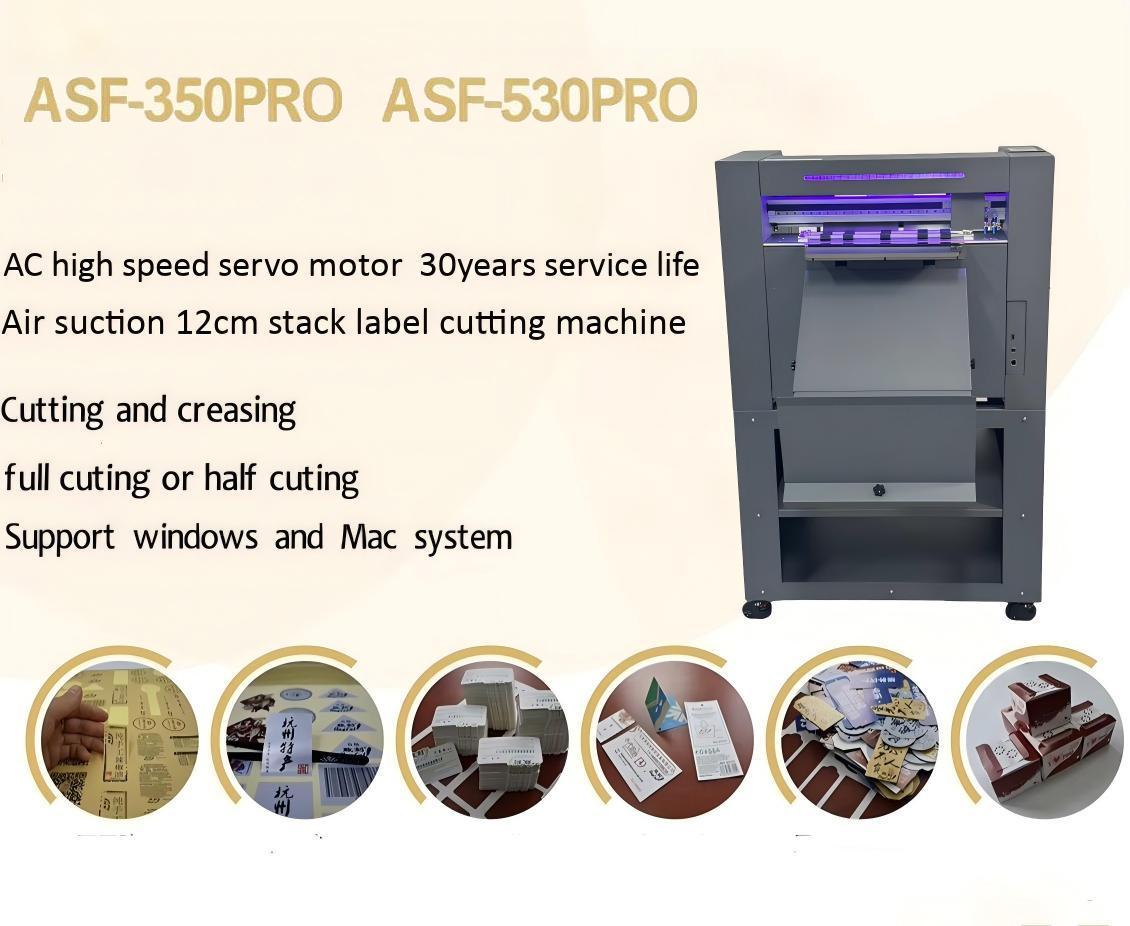

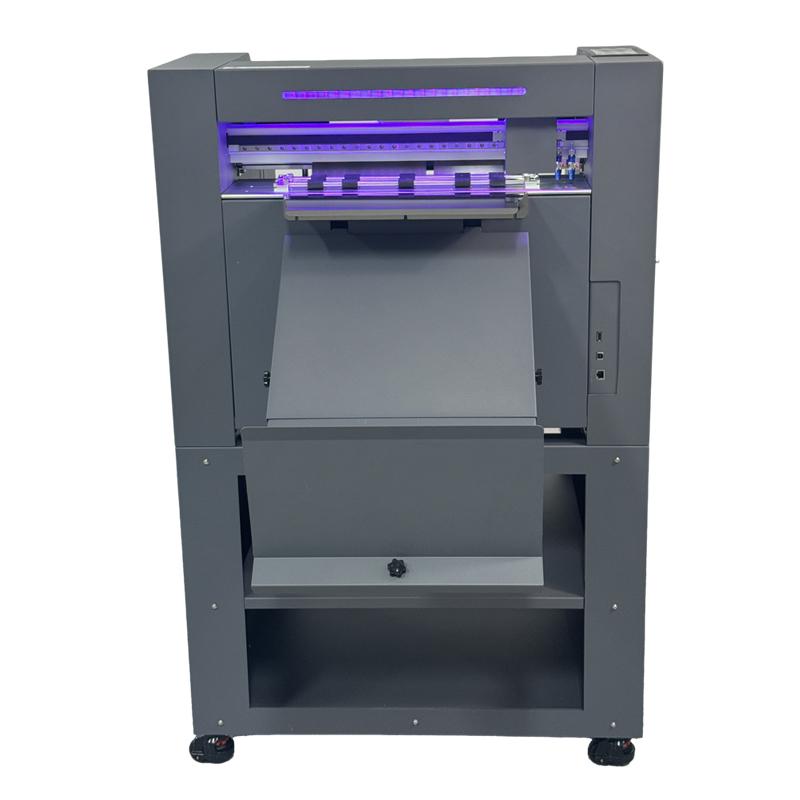

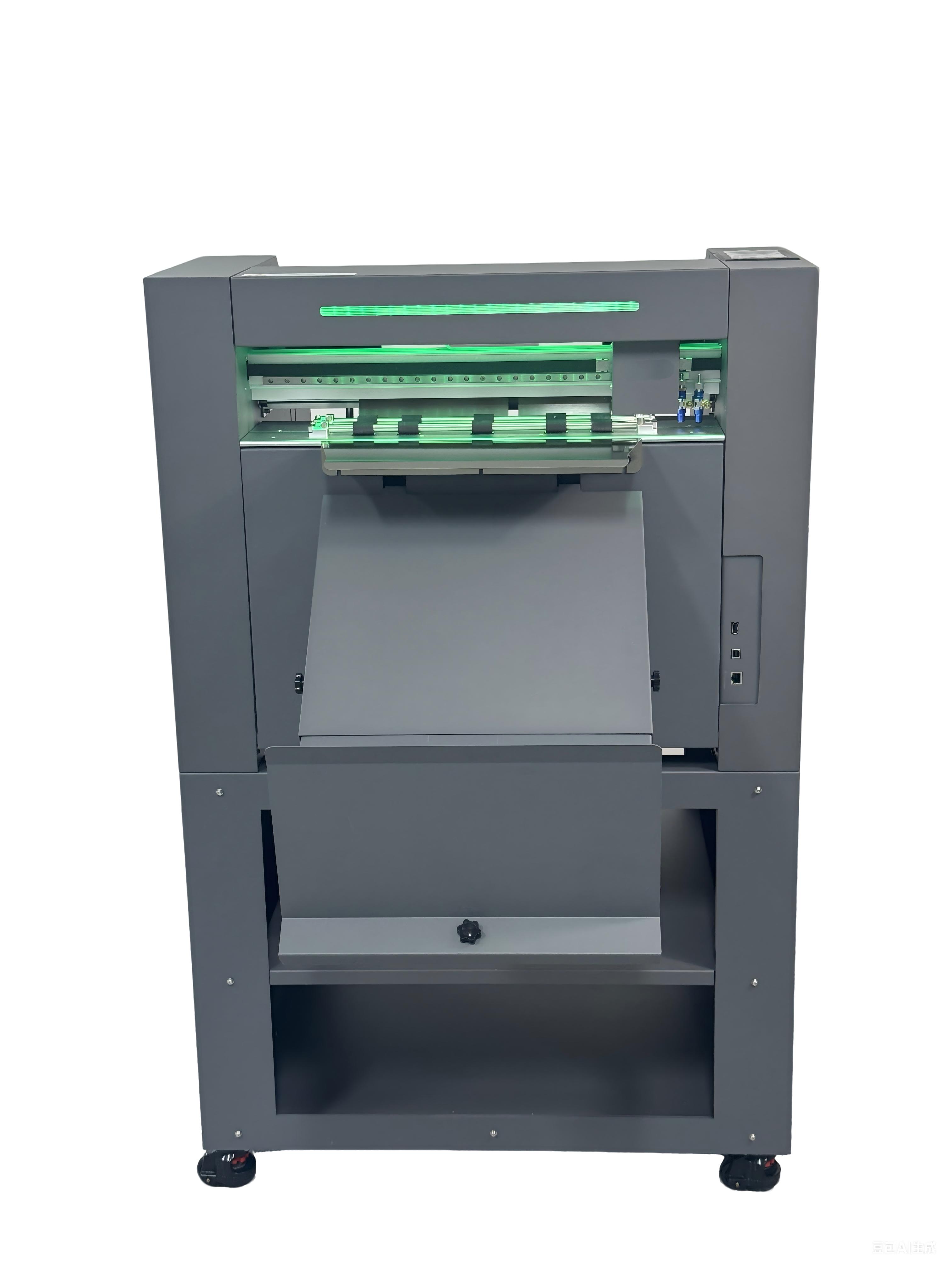

ASF-350Max
Befitter
Features:
7. Taiwang Linear Guide to ensure the cutting high precision,
8.Support CDR,Al plug-in mode
| Model | SF-350max | SF-530max | |

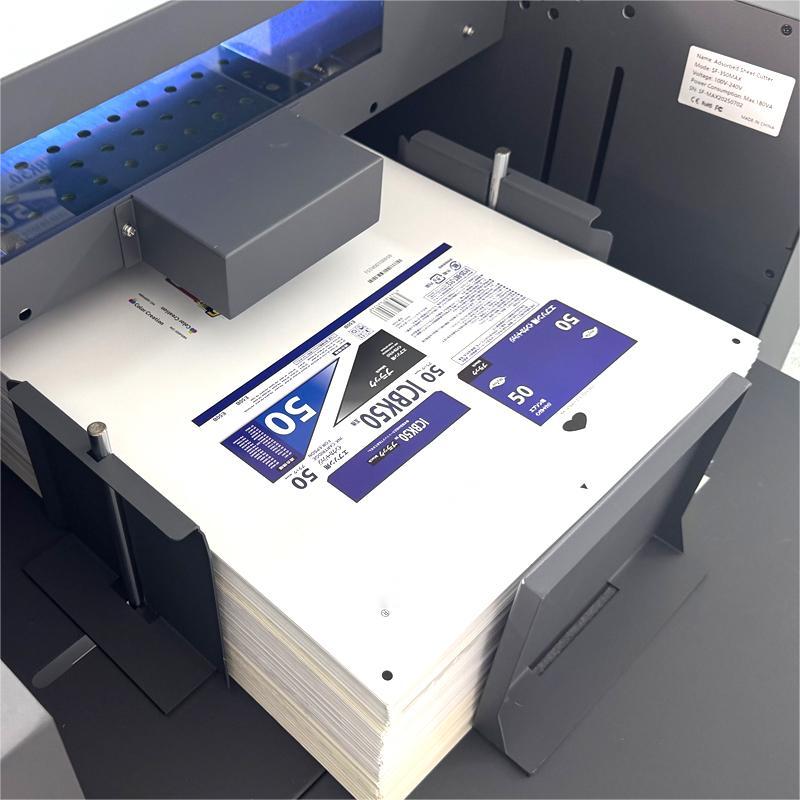

| Functional Features | Adopting a suction-type paper feeding method,with a larger capacity paper bin,effectively preventing the feeding of double sheets,and featuring anti-static material design | ||
| Electrical machinery | The adoption of a brand-new AC servo motor for driving ensures a longer motor lifespan. | ||
| Configuration | High-precision servo system,automatic paper feeding, automatic CCD positioning scanning and cutting | ||
| Ways to fixmaterial | Double row platen | ||
| Maximum cutting speed | 1800mm/s | ||
| Maximum cut | 1000 gf | ||
| Effective cutting area | 350x600mm | 530*740mm | |
| Positioning method | CCD camera positioning | ||
| Applicable to material rulerinch | A4,A3,A3+ | A4,A3,A3+,B4,B3,B2 | |
| Machine Precision | 0.005mm(5μm) | ||
| Programming Resolution | HP-GL:0.025mm | ||
| Repeatability | 0.1mm | ||
| Machine input interface | USB2.0(FullSpeed)/U disk(offline)/network cable/Wifi | ||
| Motherboard Memory | 256MB | ||
| Command language | HP-GL | ||
| Number of tools | two blades | ||
| Tool Type | Cutting tools,indentation knives | ||

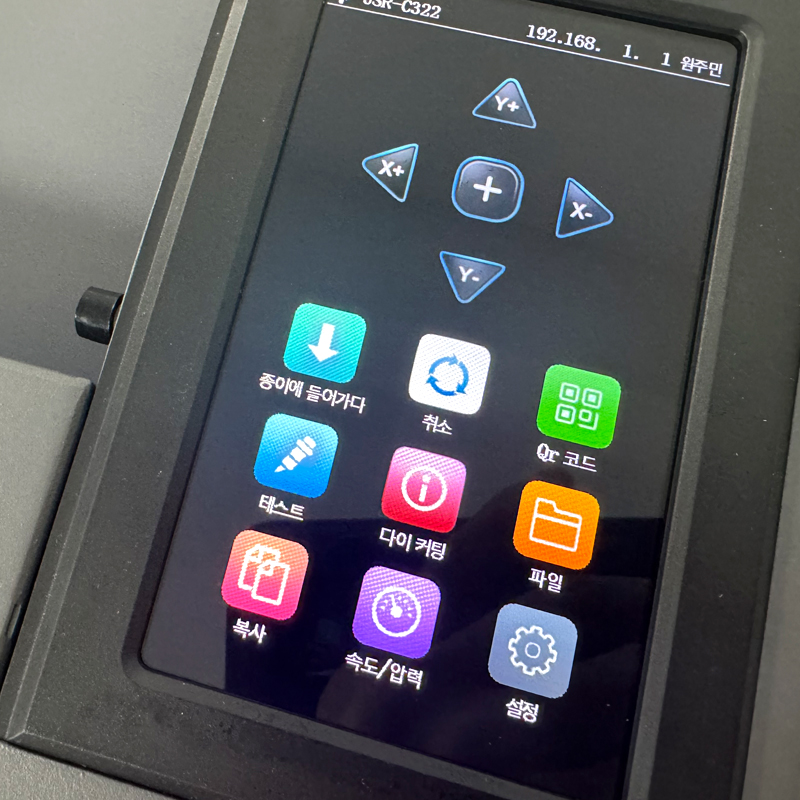

| Control Panel | 5.1 inch LCD touch screen | ||
| Power | 100 to 240 VAC,50/60 Hz(auto switching) | ||
| Power | Max.200VA(machine), | ||
| machine operating | Ambient temperature:10 to 35 degrees C(35 to 95 degrees F) | ||
| Machine size | 775x600x1205mm | 900x700x1205mm | |
| Package size | 750x680x1020mm | 800x780x1200mm | |
| Gross /Net weight | 150kg/130kg | 180kg/150kg | |
| Compatible operating systems | Windows and Mac,support CDR,Al plug-in mode | ||
| and software | |||
Features:
7. Taiwang Linear Guide to ensure the cutting high precision,
8.Support CDR,Al plug-in mode
| Model | SF-350max | SF-530max | |
| Functional Features | Adopting a suction-type paper feeding method,with a larger capacity paper bin,effectively preventing the feeding of double sheets,and featuring anti-static material design | ||
| Electrical machinery | The adoption of a brand-new AC servo motor for driving ensures a longer motor lifespan. | ||
| Configuration | High-precision servo system,automatic paper feeding, automatic CCD positioning scanning and cutting | ||
| Ways to fixmaterial | Double row platen | ||
| Maximum cutting speed | 1800mm/s | ||
| Maximum cut | 1000 gf | ||
| Effective cutting area | 350x600mm | 530*740mm | |
| Positioning method | CCD camera positioning | ||
| Applicable to material rulerinch | A4,A3,A3+ | A4,A3,A3+,B4,B3,B2 | |
| Machine Precision | 0.005mm(5μm) | ||
| Programming Resolution | HP-GL:0.025mm | ||
| Repeatability | 0.1mm | ||
| Machine input interface | USB2.0(FullSpeed)/U disk(offline)/network cable/Wifi | ||
| Motherboard Memory | 256MB | ||
| Command language | HP-GL | ||
| Number of tools | two blades | ||
| Tool Type | Cutting tools,indentation knives | ||
| Control Panel | 5.1 inch LCD touch screen | ||
| Power | 100 to 240 VAC,50/60 Hz(auto switching) | ||
| Power | Max.200VA(machine), | ||
| machine operating | Ambient temperature:10 to 35 degrees C(35 to 95 degrees F) | ||
| Machine size | 775x600x1205mm | 900x700x1205mm | |
| Package size | 750x680x1020mm | 800x780x1200mm | |
| Gross /Net weight | 150kg/130kg | 180kg/150kg | |
| Compatible operating systems | Windows and Mac,support CDR,Al plug-in mode | ||
| and software | |||
cardpaper/color box
