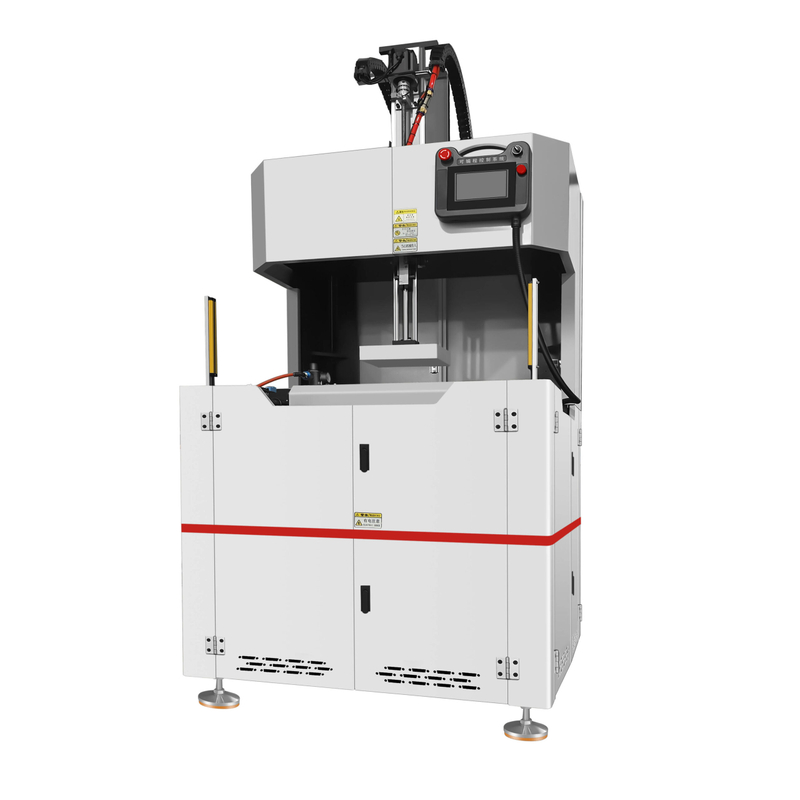

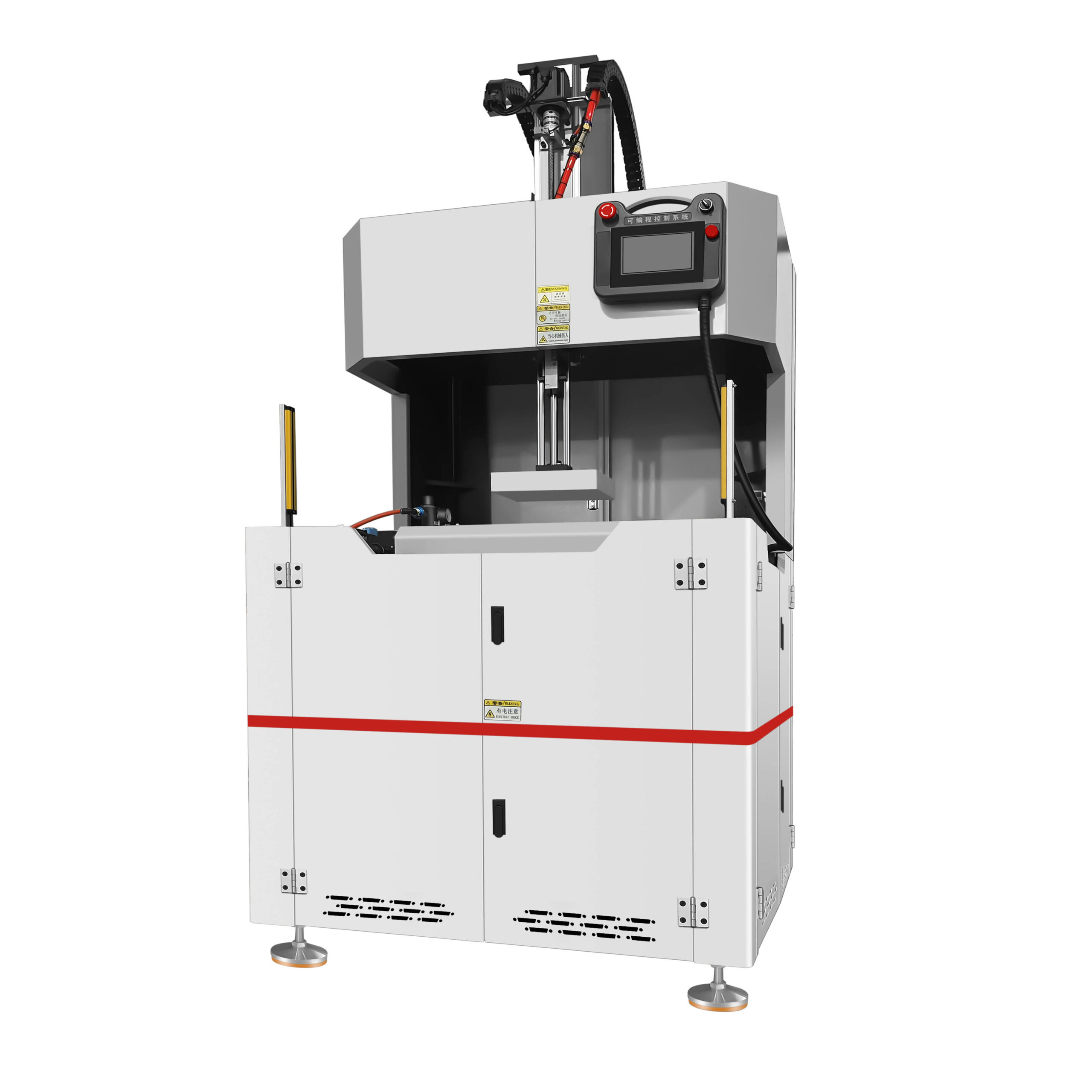

Automatic Rigid Box Forming Machine GN-500H/600H for Gift Box Production

This machine is the main model for rigid box production, it is used to fold, bubble pressing and box finishing.

This machine adopts programming system, it is with memory configuration to save the ordered box sizes and to set the machine automatically.

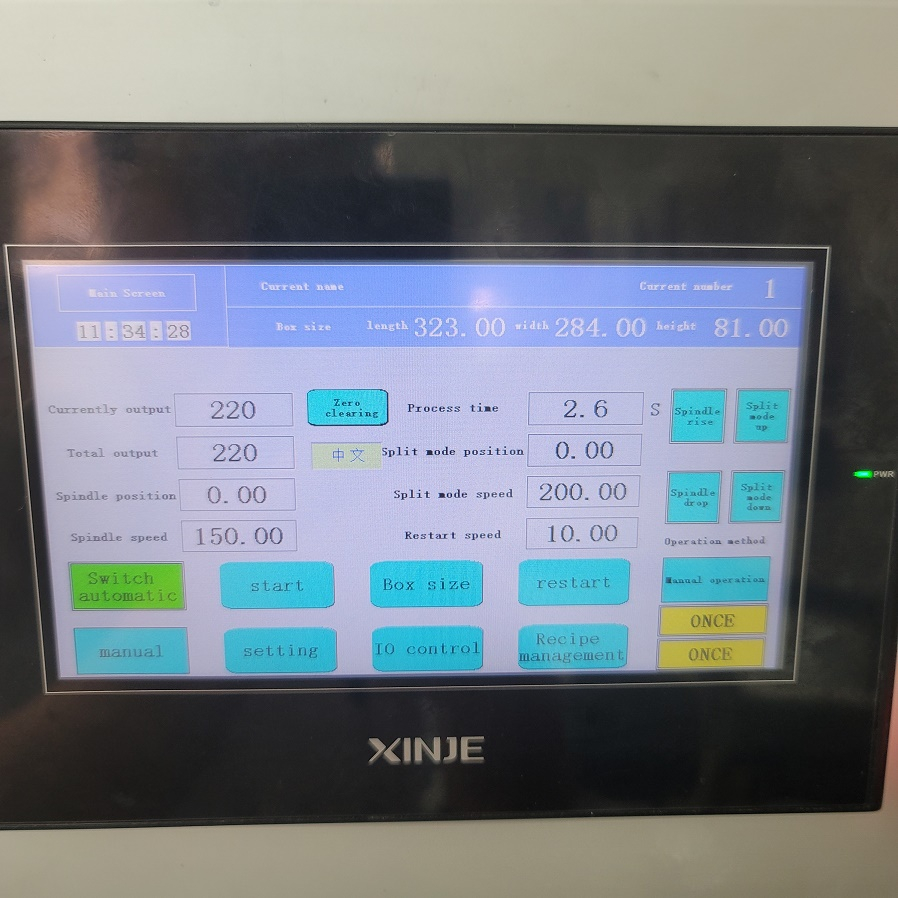

It is easy to operate, just according to the instructions of adjustment in touch screen to measure and input the required sizes of box.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GN-500H/600H

型号Model

DG-500HF

DG-600HF

纸盒成型尺寸

Rigid Box Size

长度45-480mm

长度L45-600mm

宽度W45-380mm

宽度W45-400mm

高度H12-120mm

高度H12-120mm

生产速度

Output speed

10-25pcs/min

10-25pcs/min

机器电压/功率

Machine Voltage/Power

 AC220V/50Hz/2.5kw

 AC220V/50Hz/2.5kw

必要气压

Air Pressure

0.6-0.8MPa

0.6-0.8MPa

机器尺寸

Machine Dimension

L1500mmxW1100mmxH2500mm L1400mmxW1100mmxH2500mm  L1400mmxW1100mmxH2500mm

L1500mmxW1100mmxH2500mm

机器重量

Machine Weight

900Kg

1000Kg

The GN-500H/600H Automatic Rigid Box Forming Machine is widely used for manufacturing various high-end rigid boxes and premium packaging products, including:

  • Luxury gift boxes

  • Cosmetic packaging boxes

  • Jewelry boxes

  • Perfume boxes

  • Mobile phone boxes

  • Electronics packaging boxes

  • Watch boxes

  • Chocolate and food packaging boxes

  • Wine and tea packaging boxes

  • Premium rigid paper boxes

Suitable for packaging manufacturers, printing factories, luxury packaging suppliers and rigid box production lines.

Why Choose This Machine

  • Fully automatic operation for higher production efficiency

  • Stable and precise box forming performance

  • Reduces labor cost and manual operation

  • Suitable for various rigid box sizes and designs

  • Easy to operate and maintain

  • Durable structure for long-term industrial use

  • Ideal for luxury packaging and premium box production

  • Improves product consistency and production quality

  • Reliable solution for packaging manufacturers and factories



Packing & Shipping

Standard export wooden case packaging.



Options for sea, air, or express freight delivery.



Contact us for dimensional and weight details.





After-Sales & Support

User manual and operation guide included.



Warranty and spare parts support available.



Online technical support with factory technicians.
