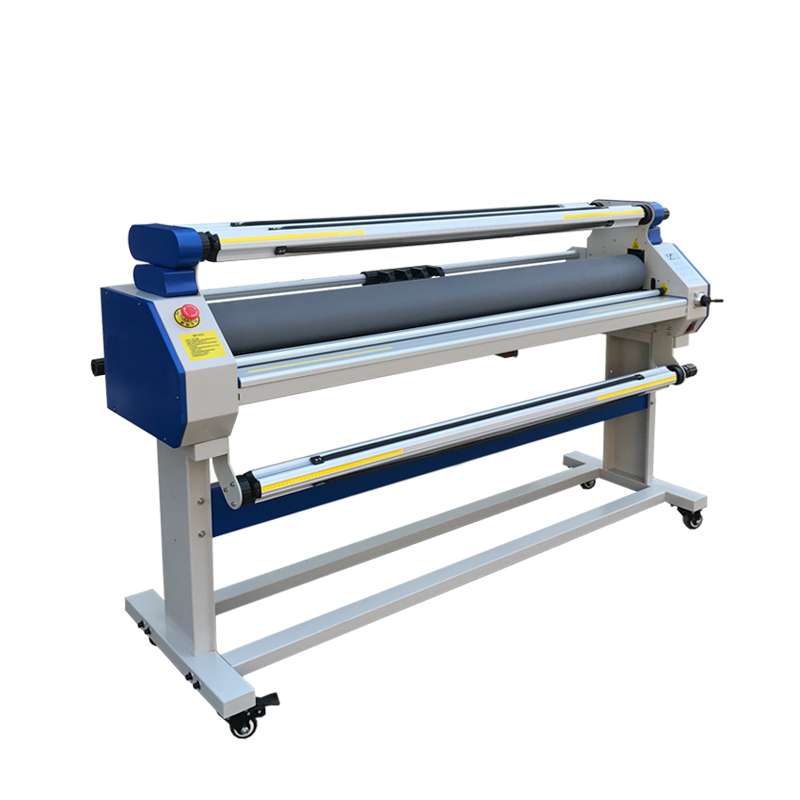

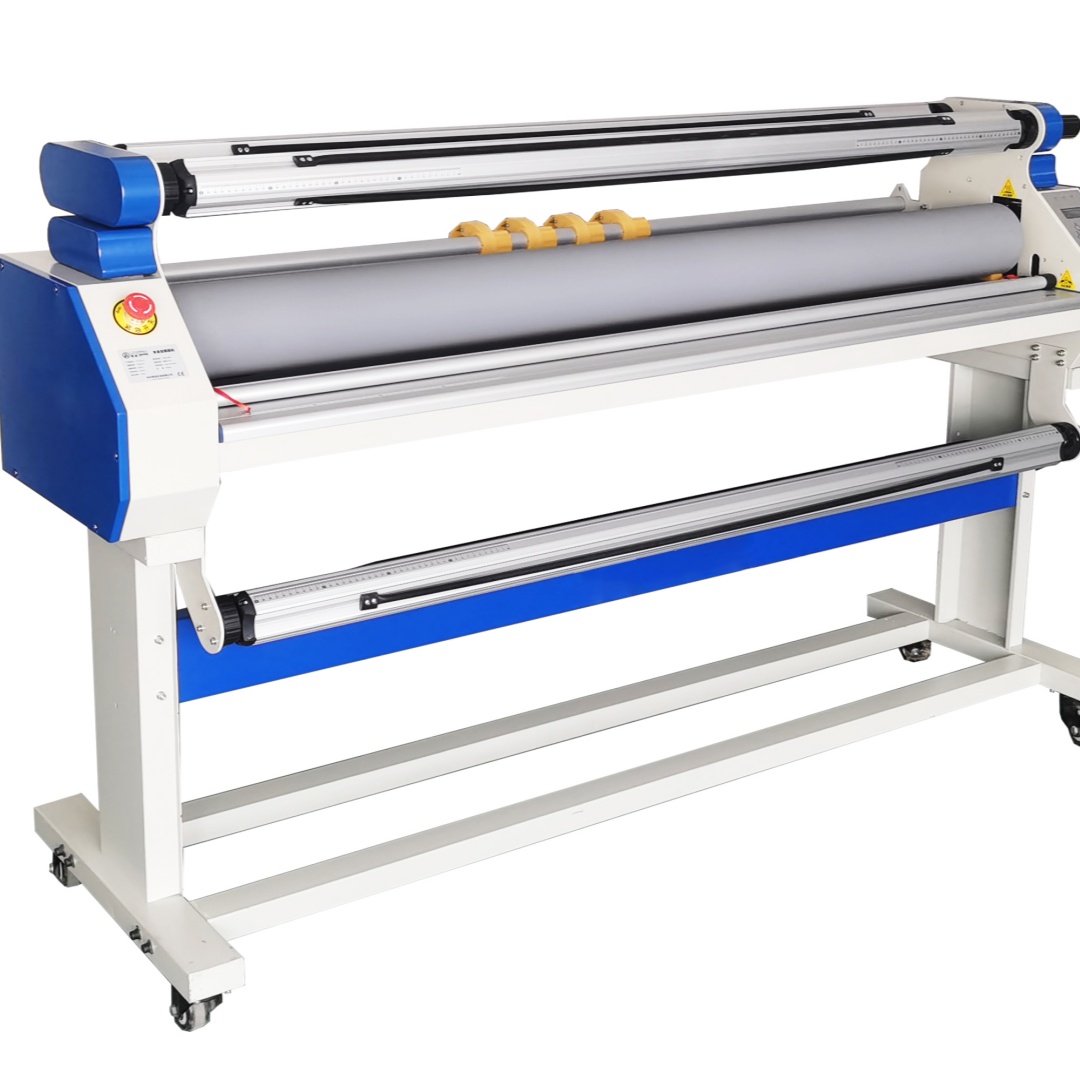

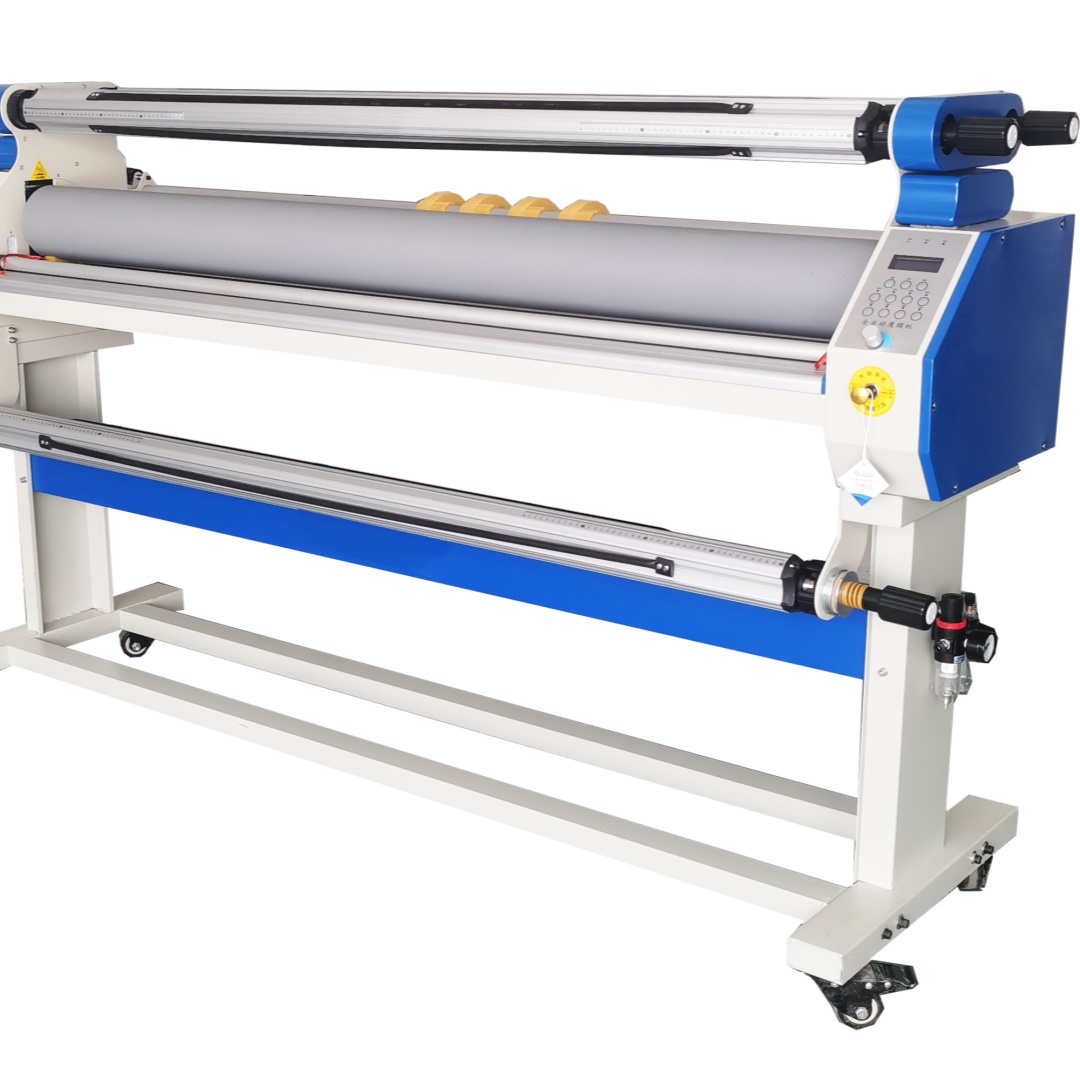

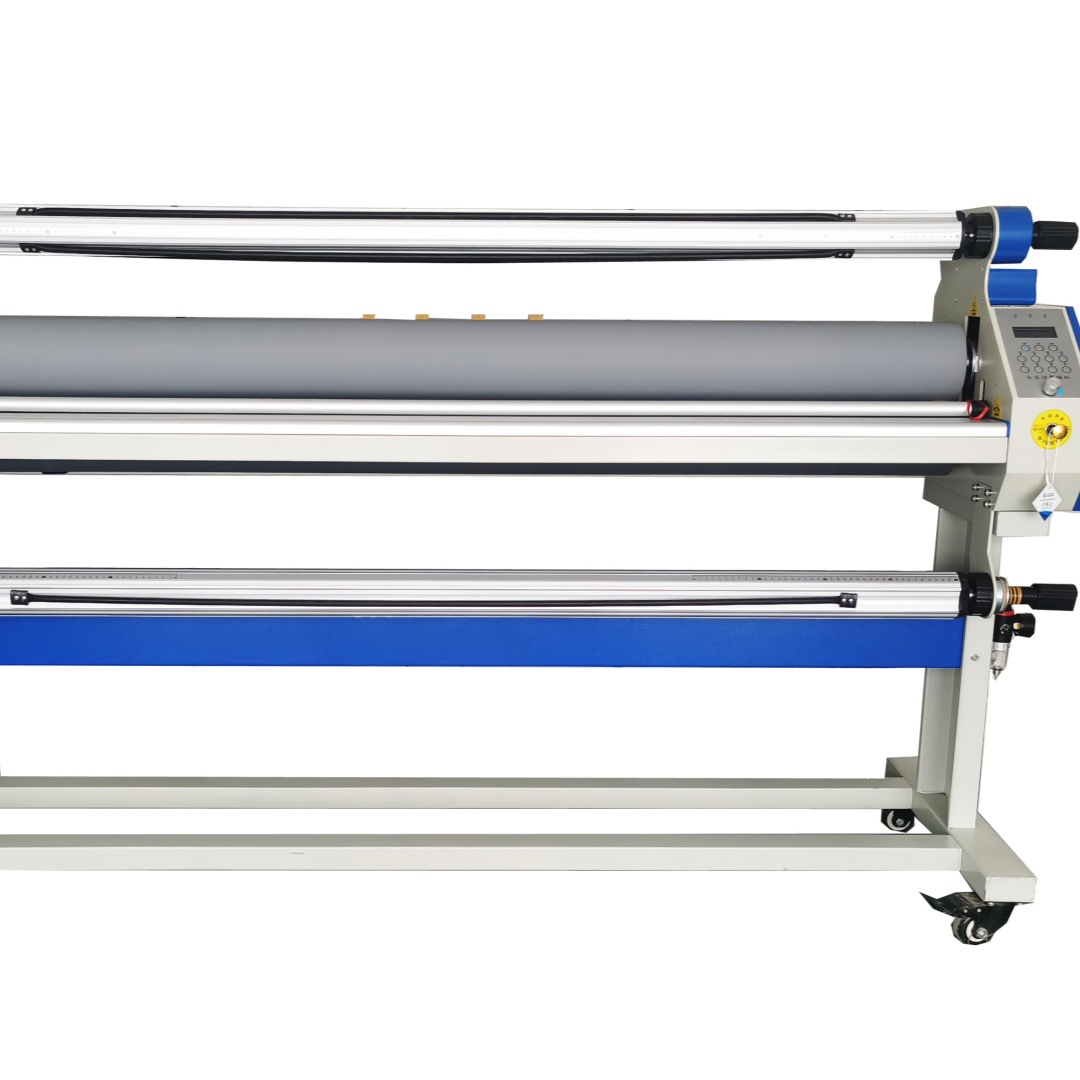

Professional sturdy and robust laminator designed to guarantee every day high quality results with great speed.

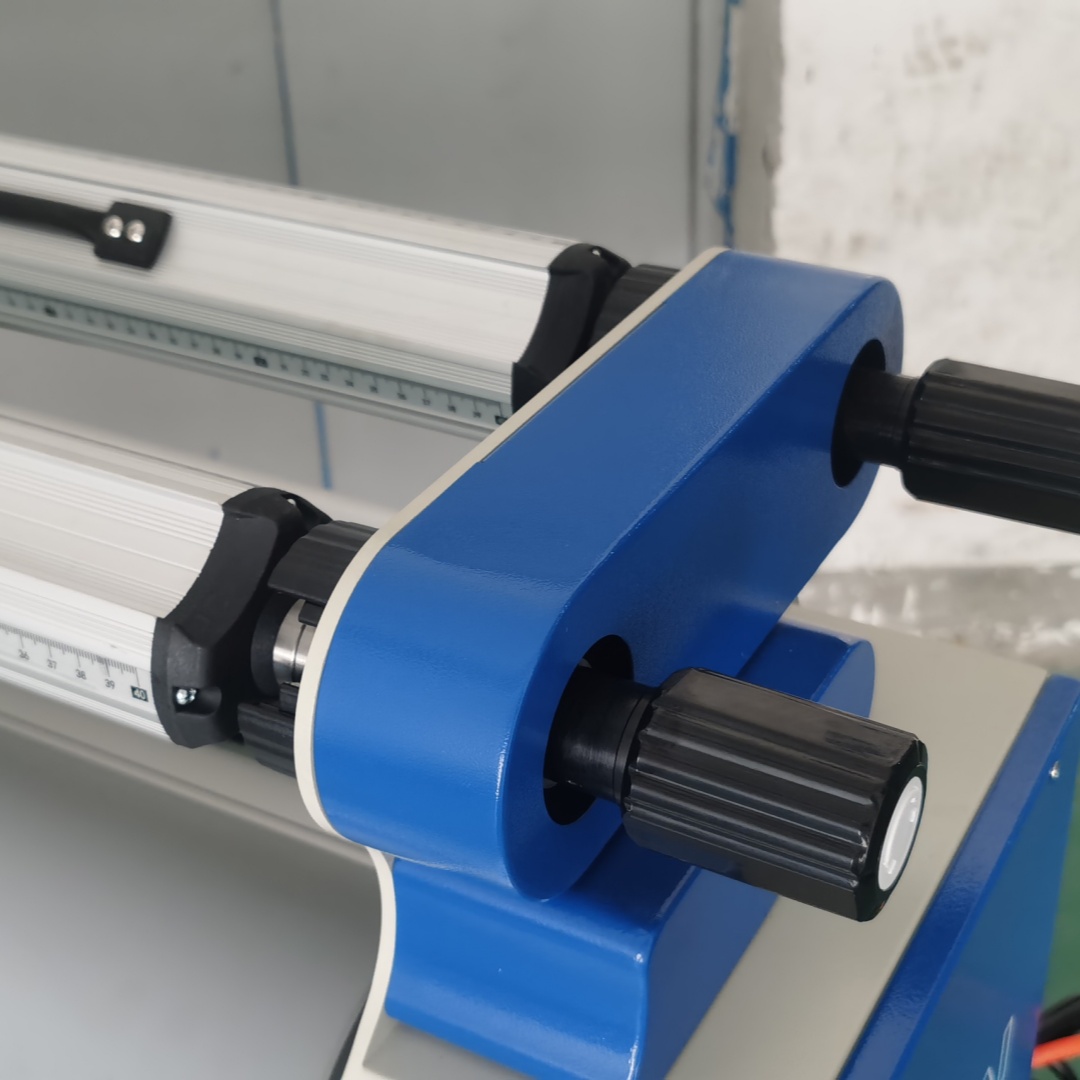

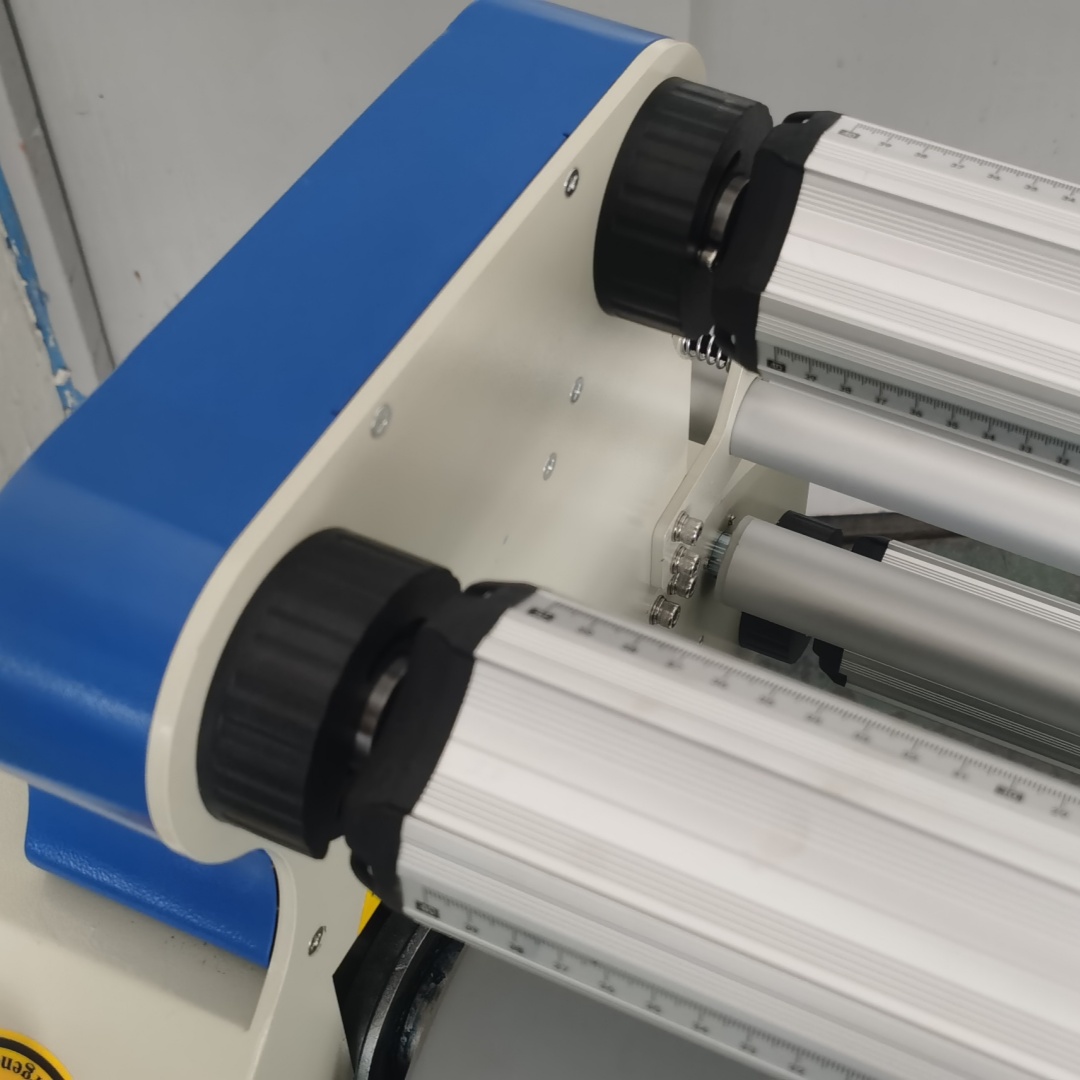

65”ALUMINUM SHAFTS(total 4 shafts)for easy loading and unloading of the rolls.
It can support big and heavy rolls with diameter up to 260mm thanks to the increased distance between rollers and support shafts.
Heated upper roller with preset electronic temperature regulation-standard on BFT-1700 model(Room-70℃)
Ideal for mounting images on panels even of large dimensions,for incapsulations or for applying at the same time a plastic lm and a double-sided adhesive for mounting.
Intuitive set up parameters thanks to the user-friendly control panel.
When material is finished, rollers can stop automatically.

Professional sturdy and robust laminator designed to guarantee every day high quality results with great speed.
65”ALUMINUM SHAFTS(total 4 shafts)for easy loading and unloading of the rolls.
It can support big and heavy rolls with diameter up to 260mm thanks to the increased distance between rollers and support shafts.
Heated upper roller with preset electronic temperature regulation-standard on BFT-1700 model(Room-70℃)
Ideal for mounting images on panels even of large dimensions,for incapsulations or for applying at the same time a plastic lm and a double-sided adhesive for mounting.
Intuitive set up parameters thanks to the user-friendly control panel.
When material is finished, rollers can stop automatically.

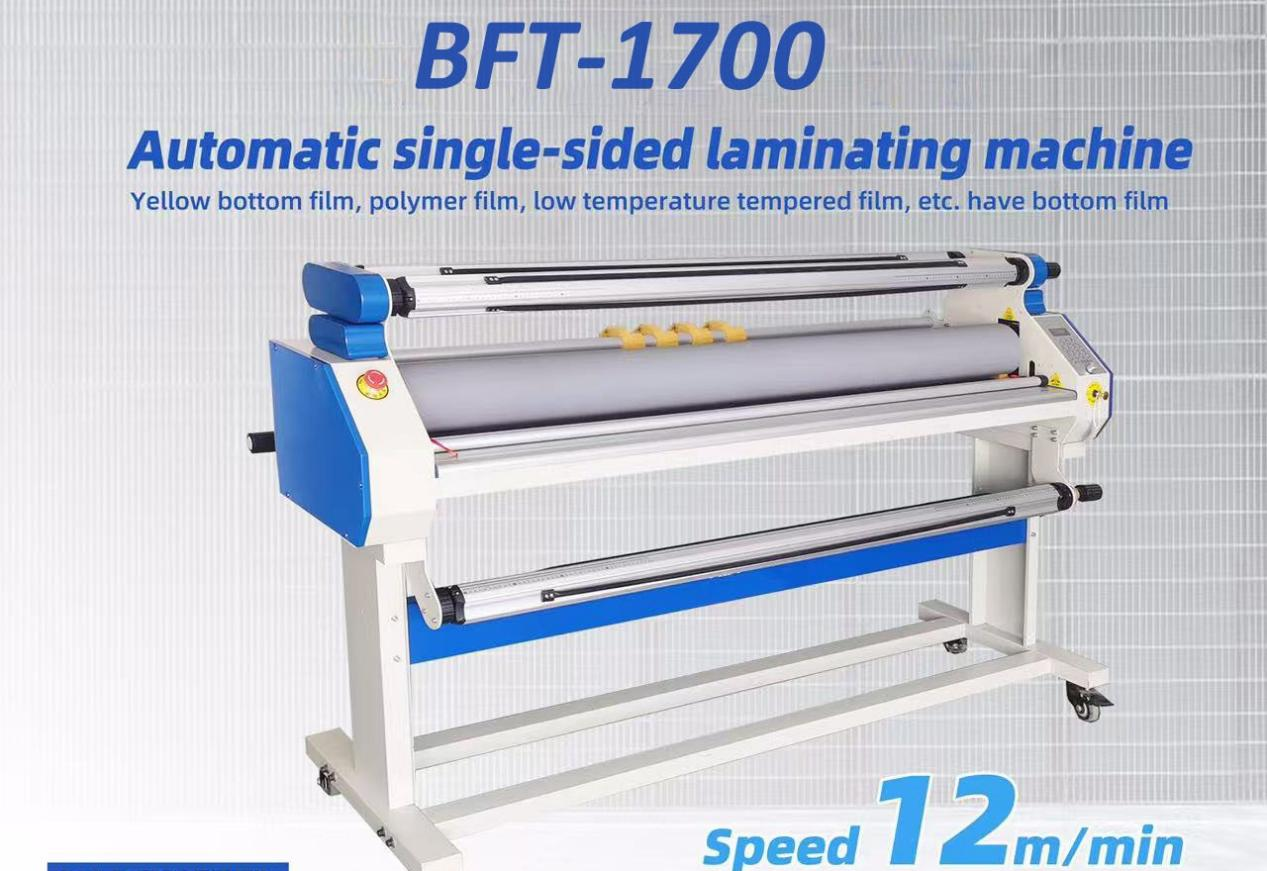

Model | BFT-1700 |
Max laminating width | 1630mm |
Max Laminating thickness | 30mm |
Max Speed | 12m/min |
Max Temperature | room temp-70℃ |
Up and Down | Air Cylinder |
Heating | Infrared |
Voltage | 110V/220V |
Heating | Infrared |
Warm-up Time | 5-10min |
Roller Material | Silicon |
Cutter and Air Compressor | Optional |
Power Consumption | 0.8-1.0kw/h |
Gross/Net Weight | 245kg/186kg |
Packing | wooden case |

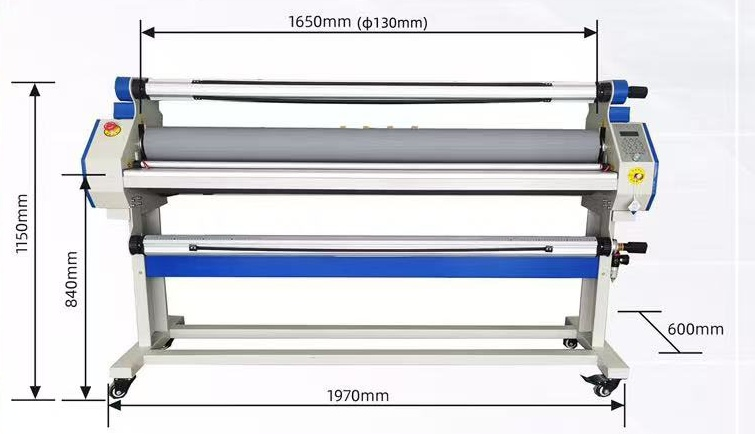

Packing size | 230x80x75cm |
Volume/pc | 1.38m³ |
SeaPort | Shanghai / Ningbo |

Model | BFT-1700 |
Max laminating width | 1630mm |
Max Laminating thickness | 30mm |
Max Speed | 12m/min |
Max Temperature | room temp-70℃ |
Up and Down | Air Cylinder |
Heating | Infrared |
Voltage | 110V/220V |
Heating | Infrared |
Warm-up Time | 5-10min |
Roller Material | Silicon |
Cutter and Air Compressor | Optional |
Power Consumption | 0.8-1.0kw/h |
Gross/Net Weight | 245kg/186kg |
Packing | wooden case |
Packing size | 230x80x75cm |
Volume/pc | 1.38m³ |
SeaPort | Shanghai / Ningbo |
