You are here: Home » Products » Binding Equipment » Comb Binding Machine » SPA-520 Semi automatic Double Loop Wire Book Binding Machine

SPA-520 Optional Double Wire Book Binding Machine with Twin Ring

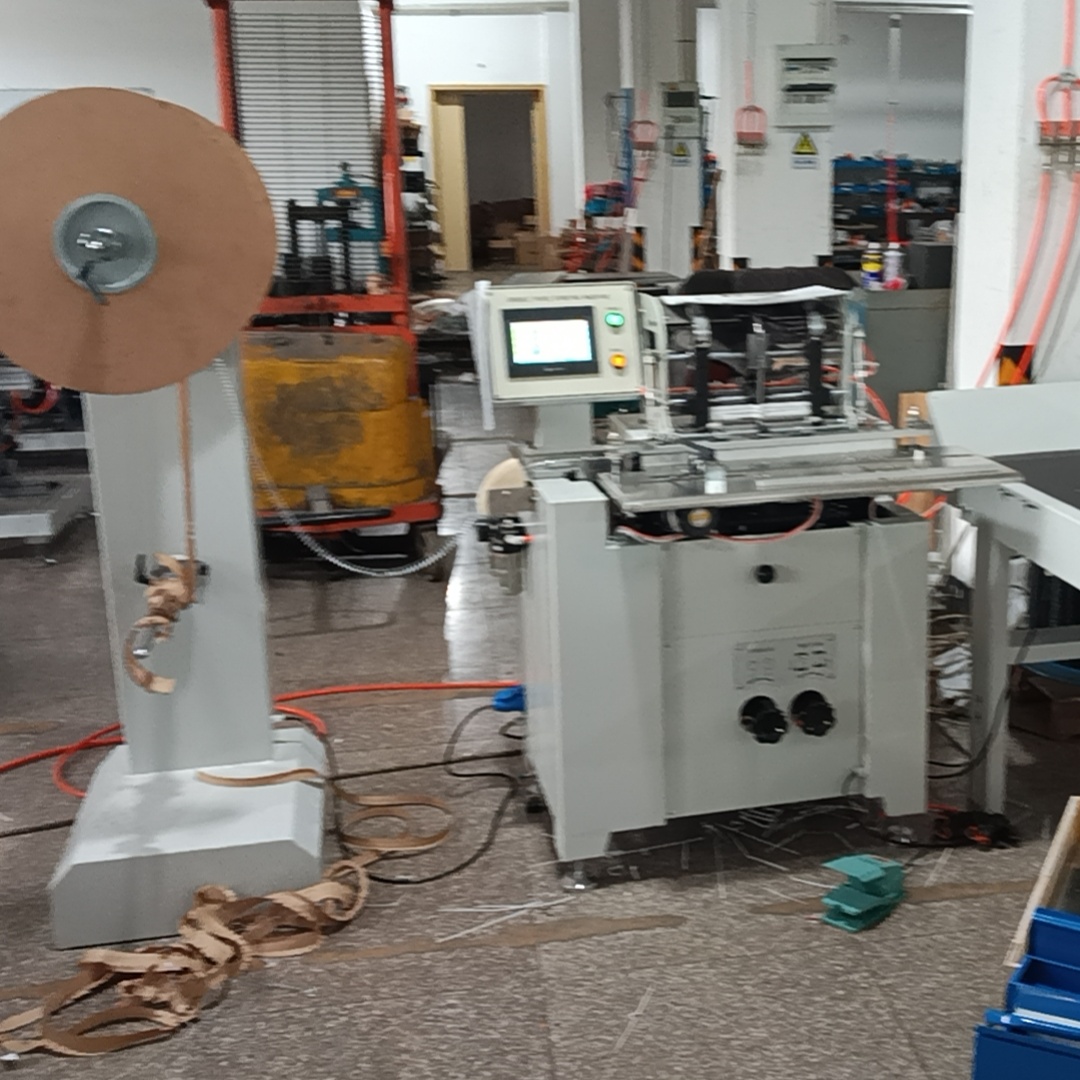

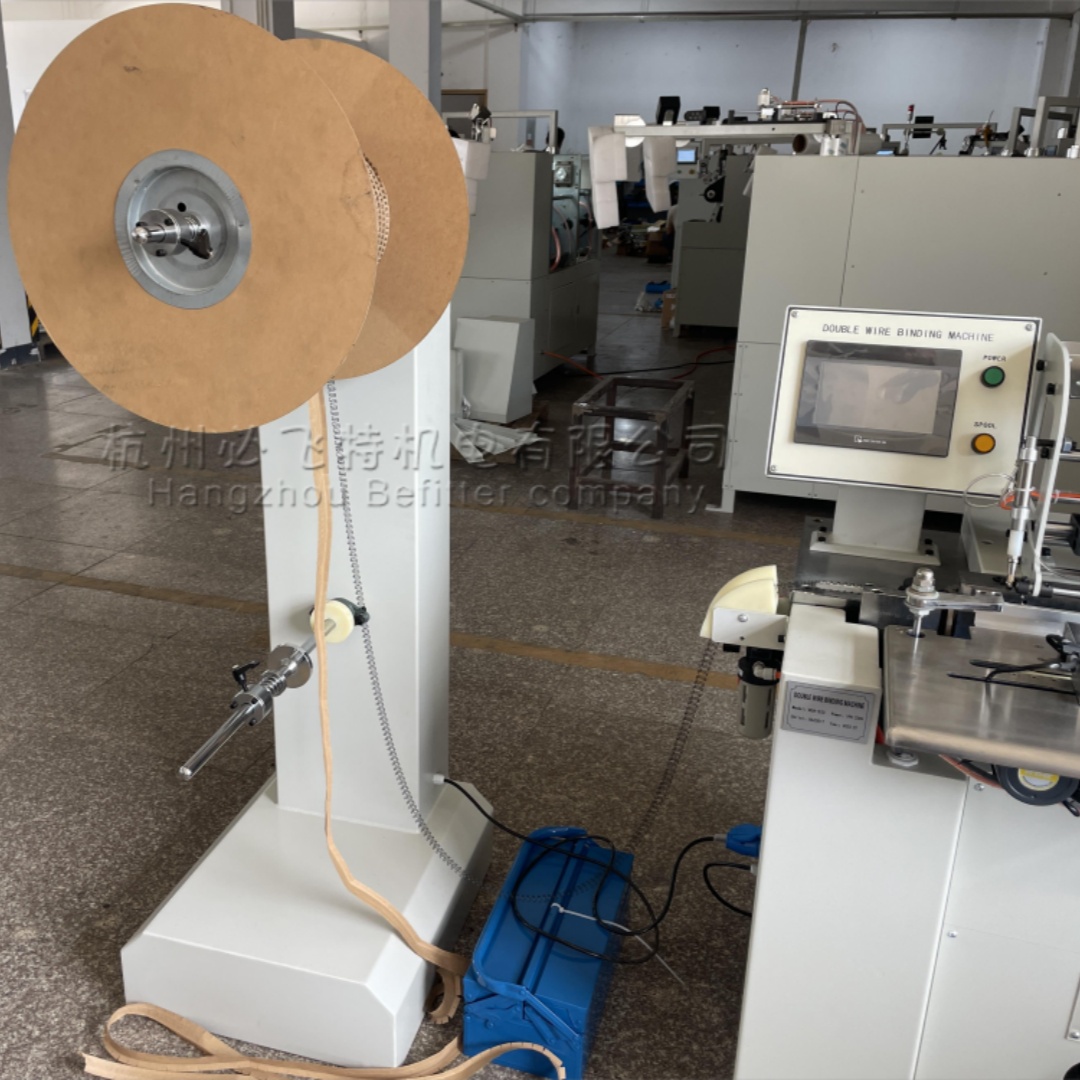

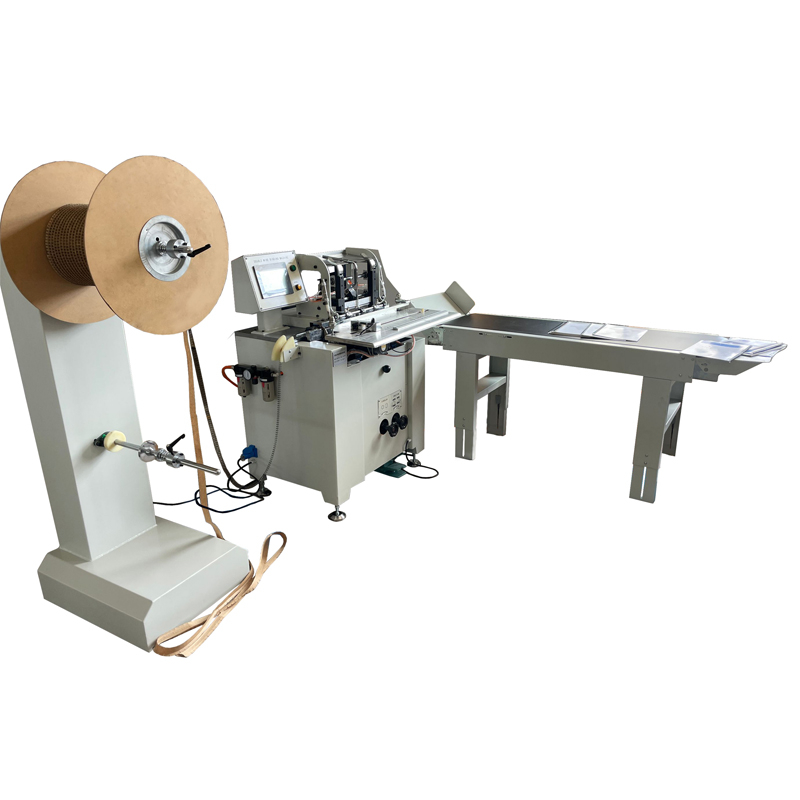

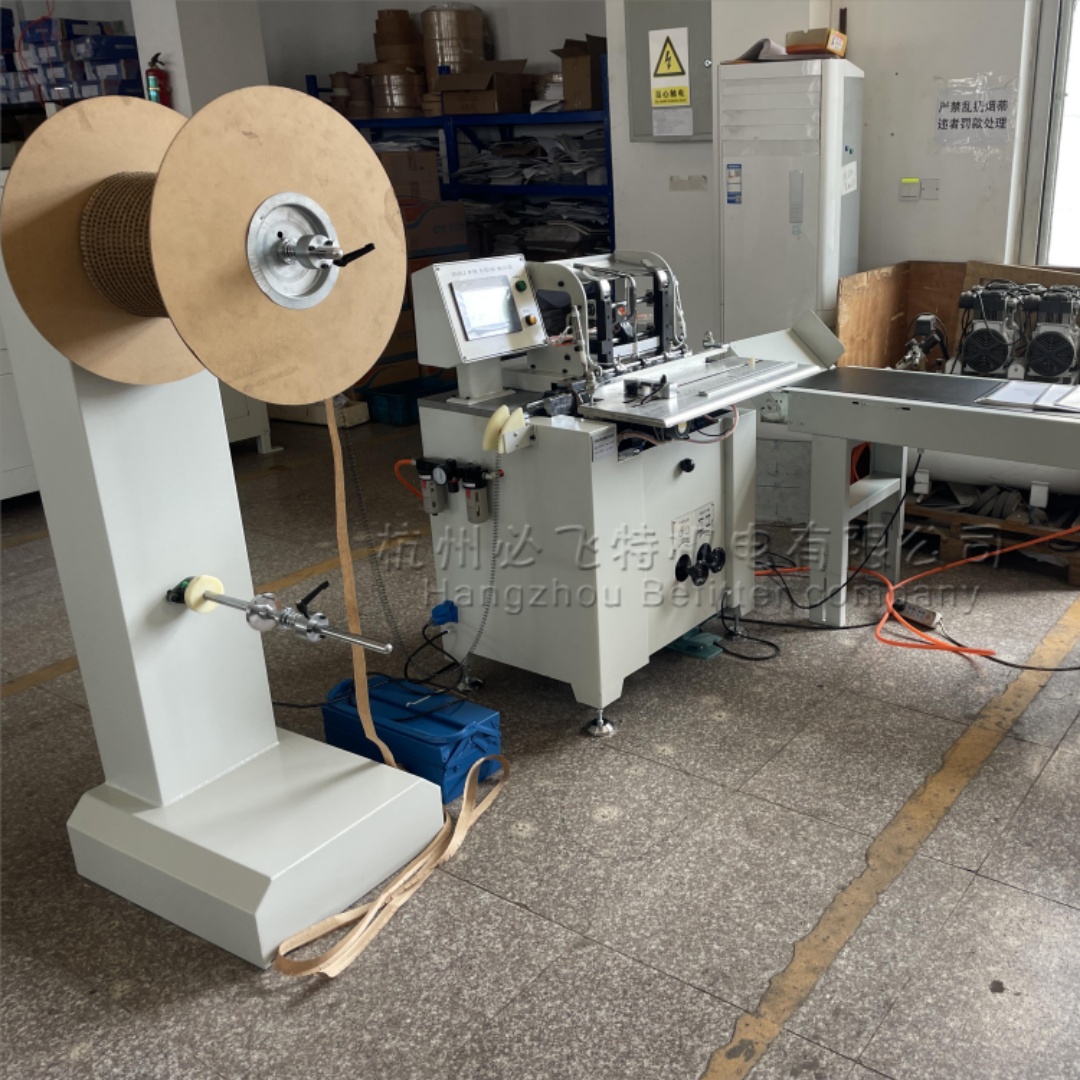

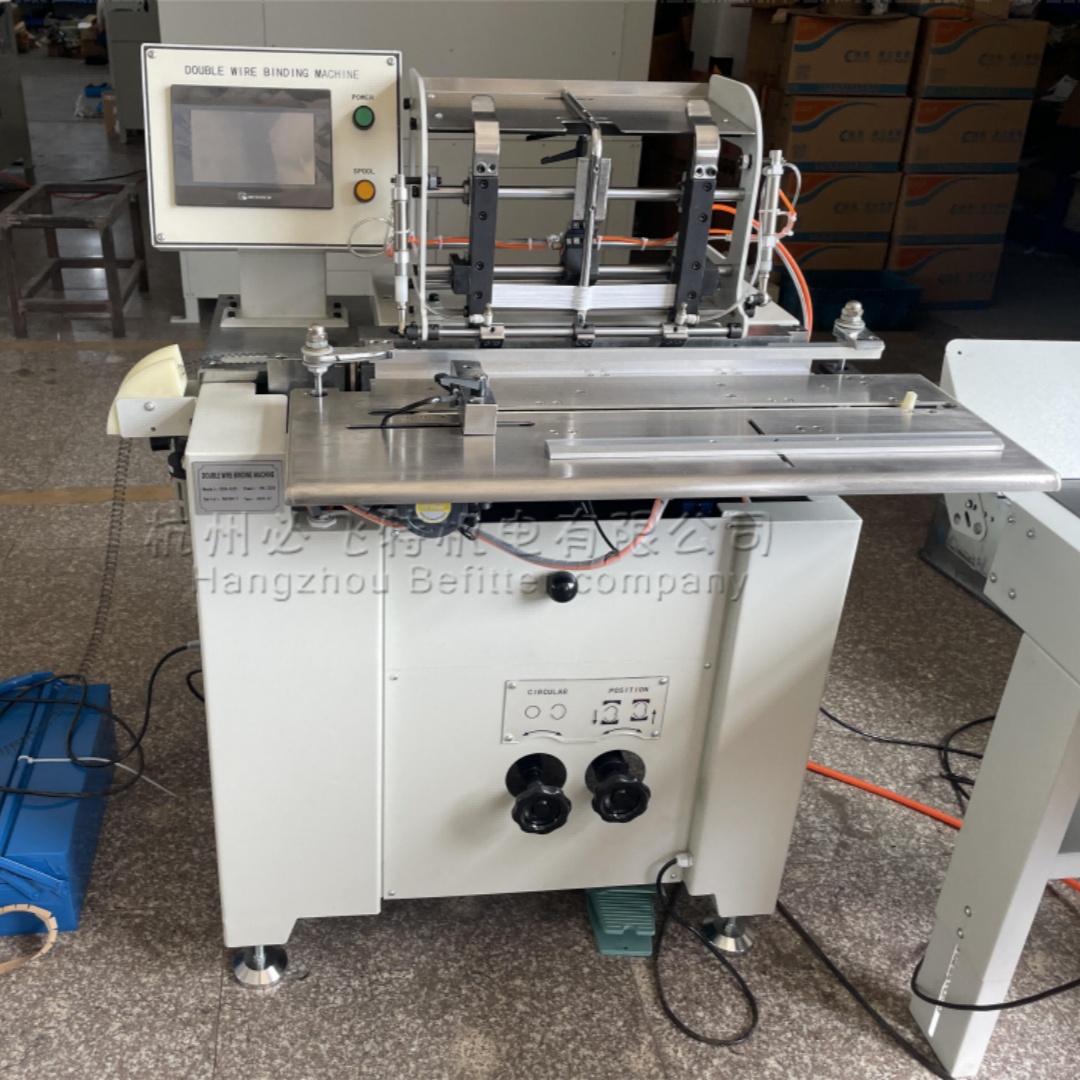

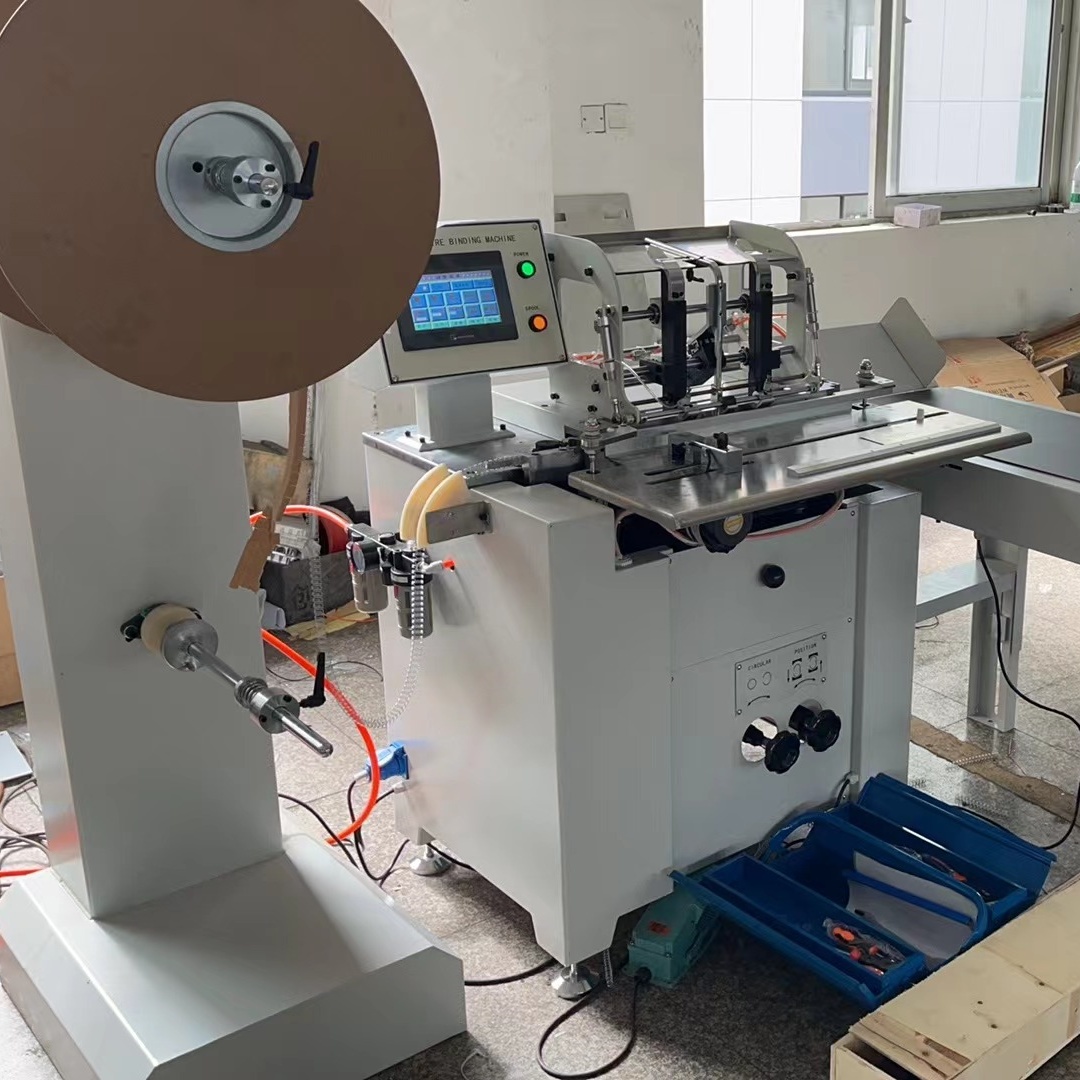

SPA-520 Semi automatic Double Loop Wire Book Binding Machine

The machine is used for binding double wire books,notebooks,calendars and so on ,lt has the functions of automatic cutting,counting loops-counting,skip binding and closing.Its your best choice for double wire book binding.

Quantity:
Availability:





Inquire Add to Basket

Model:
SPA-520

Main Features:

Controlled by PLC.Easily to setting and adjusting.
Designing and manufacturing for normal wire and paper, so the machine is very efficiently and reliably.
By changing the individually size closing moulds various loops diameters can be processed, and the changing of the moulds is fast and easy.
Optional hanger attachment.

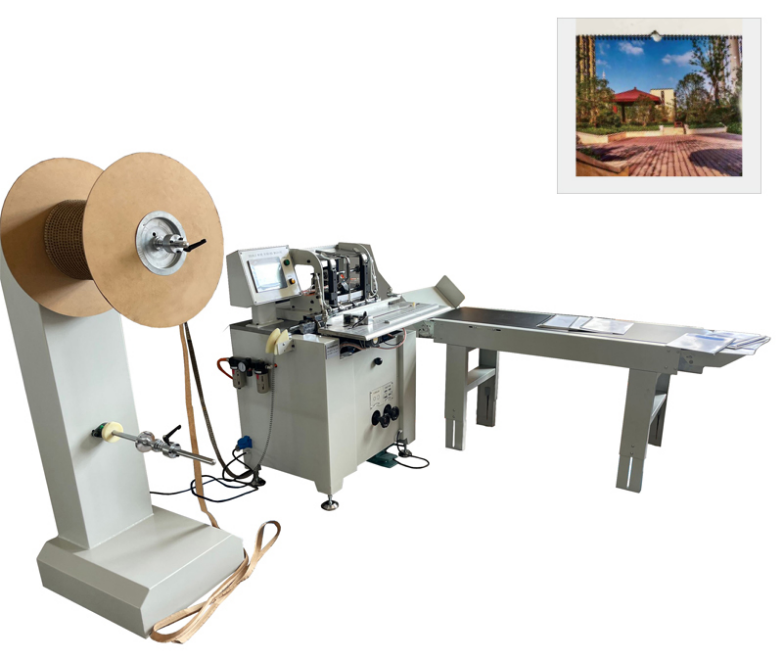

book binding machine

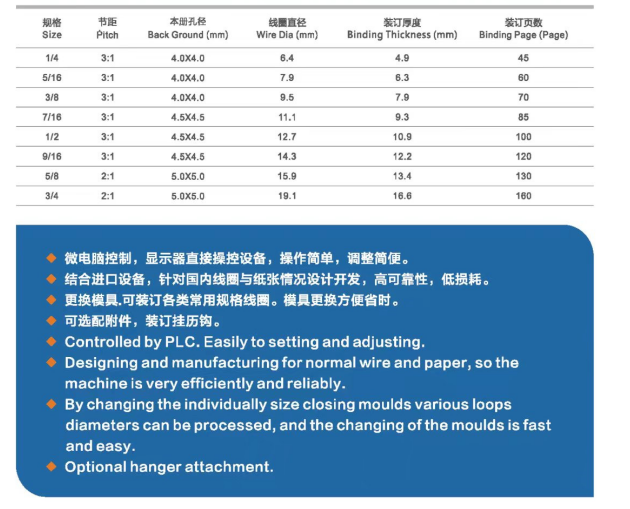

正在上传... SPA-520 doube loop wire binding

double wire binding machine electric binding machine paper binding machine book binding machine notebook binding machine spiral binding machine automatic photo book binding machine

Related Products

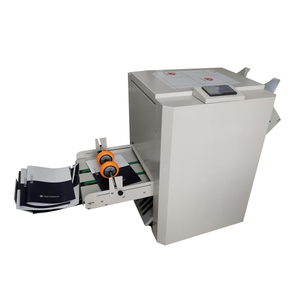

LK3000 Automatic Multi-functional Binding Machine with Touch Screen

A4-H3 Omron Perfect Hot Melt Glue Book Binding Machine

A3-H9 Intelligent PLC High-speed Hot Glue Book Binding Machine

SUPER450 Multifunctional Punching And Comb Coil Notebook Binding Machine

Model	SPA-520
Feeding Mode	Manual,Automatic cutting,Insertion&Closing
Wire Specification	1/4" 5/16“ 3/8” 7/16“ 1/2” 9/16“ 5/8” 3/4“ 7/8”
Wire Pitch	3:1 2:1
Max Paper Width	520mm
Min Paper Width	75mm
Working Speed	1500 books/hour
Size of worktable	680X310mm
Power	1ph 220V 50/60HZ(other voltage on request )/0.2kw
Air Compressor(not Included)	1.5kw
Air Pressure	6-8bar
Main Machine Dimensions	7807301150mm
Feeding reel	6005001320mm
Net Weight	300kg

Model	SPA-520
Feeding Mode	Manual,Automatic cutting,Insertion&Closing
Wire Specification	1/4" 5/16“ 3/8” 7/16“ 1/2” 9/16“ 5/8” 3/4“ 7/8”
Wire Pitch	3:1 2:1
Max Paper Width	520mm
Min Paper Width	75mm
Working Speed	1500 books/hour
Size of worktable	680X310mm
Power	1ph 220V 50/60HZ(other voltage on request )/0.2kw
Air Compressor(not Included)	1.5kw
Air Pressure	6-8bar
Main Machine Dimensions	7807301150mm
Feeding reel	6005001320mm
Net Weight	300kg
