Why Choose This Machine

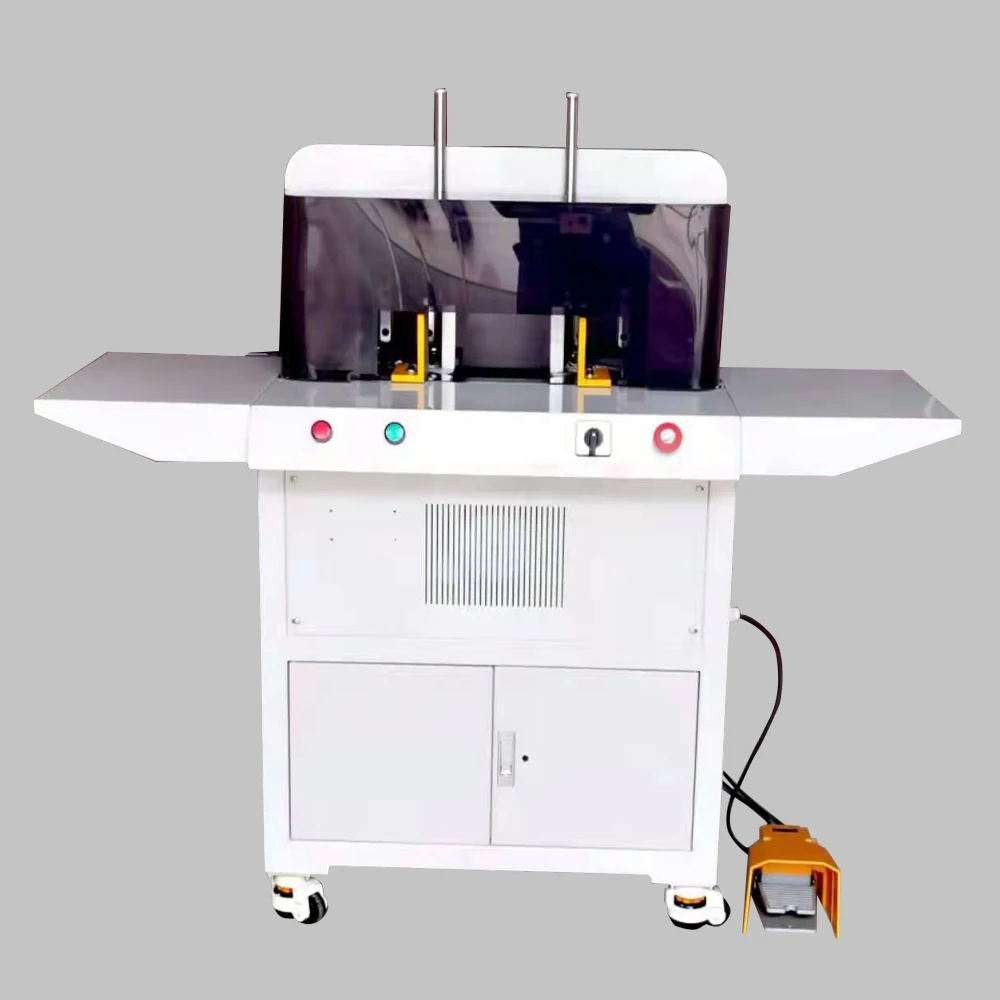

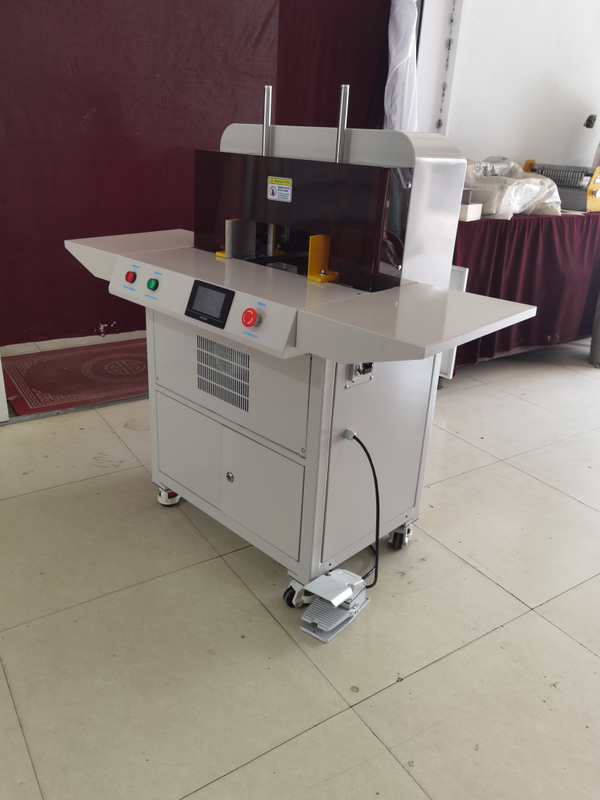

Double cutting heads — both corners are cut at the same time, so a job that takes two passes on a single-head cutter takes one here.

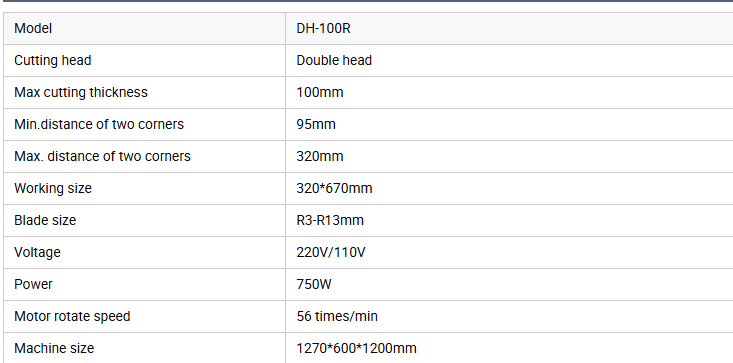

Up to 100 mm cutting thickness — handles full book blocks and mounted photo pages, well beyond what a bench-top corner rounder can take.
PLC control with LCD touch screen — enter the book size and the machine sets the corner spacing itself, then clamps and releases automatically, so setup doesn't depend on the operator's eye.
Adjustable corner spacing from 95 mm to 320 mm — covers small cards and wide books on one machine, set from the panel rather than by moving mechanical stops.

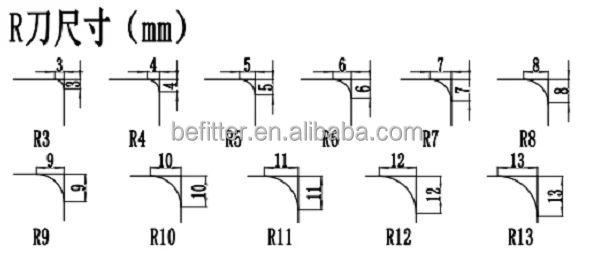

Blades from R3 to R13, two sets supplied — the radius range covers everything from credit-card corners to large album and book corners, and a spare set ships with the machine.
Three-phase variable frequency motor with 750 W — high torque and stable running, with far lower noise than a single-phase geared drive.
Inching lifting motor — steps the head up and down for precise tool setting, which makes blade changes and depth adjustment quick and repeatable.
Runs on 110 V or 220 V single-phase — the 220 V supply is converted to a three-phase motor through an inverter, so no three-phase line is needed in the shop.
Single-side or double-side cutting selectable — round one corner or both, set from the panel according to the job.
Cuts paper, film, cardboard and leather — not limited to one material, so it stays useful across different finishing work.
8. Packing & Shipping
Standard export wooden case packaging, one unit per case.
Sea, air or express freight available to your port or door.
Machine size 127 × 60 × 120 cm, net weight 205 kg. Contact us for crate dimensions, gross weight and loading quantities.
9. After-Sales & Support
Every unit is tested before shipment, with a machinery test report and outgoing inspection video provided.
12-month warranty with spare parts supply.
Online technical support directly from factory technicians, plus user manual and operation guide.
