• Book Covers & Dust Jackets — automatic feeding and separation let covers run through without an operator standing at the infeed, which is what makes volume cover work viable.

• Packaging & Paper Boxes — film on box wrap and carton blanks, with hydraulic pressure keeping the film tight on coated and printed board.

• Color Printing & Digital Print Finishing — gloss or matt over-lamination on digitally printed sheets, where steady hydraulic pressure prevents the snowflake spotting that spring-loaded machines leave.

• Catalogs, Brochures & Covers — A3 and A2-size covers and pages in repeat runs, with ±2 mm overlap accuracy keeping the stack aligned for the next operation.

• Card Stock & Laser-Printed Paper — handles 128–450 gsm laser printing paper and 157–350 gsm printing paper, covering light text stock through heavy cover board.

• Print Shops & Packaging Converters — the core user: shops running repeat lamination where the machine has to keep up with the press, not the other way round.

Laminated output is waterproof, scuff-resistant, and shows noticeably richer color and depth than unlaminated stock.

Why Choose This Machine

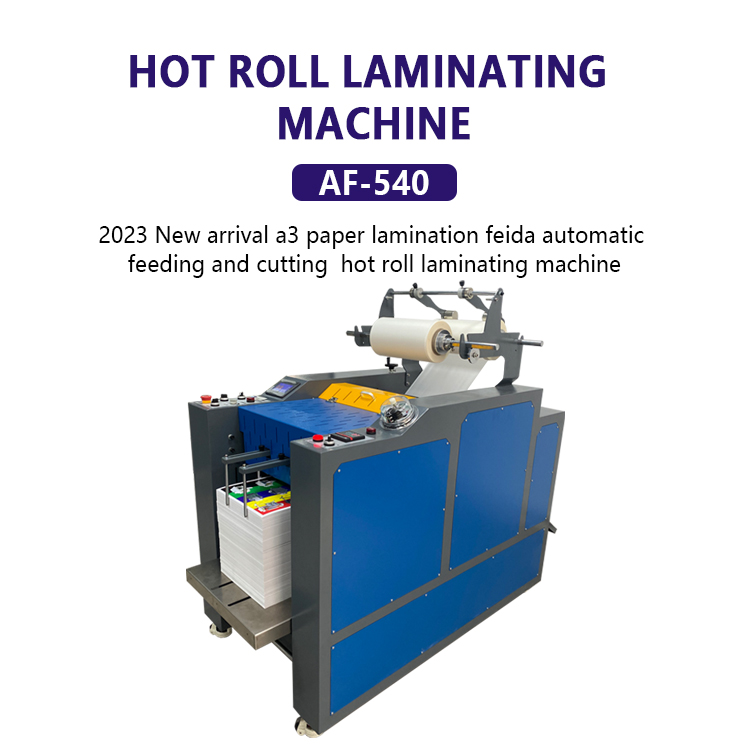

Feida suction-head auto feeding with automatic sheet separation — sheets feed and come apart automatically, so one operator can run the machine instead of standing at the infeed all day.

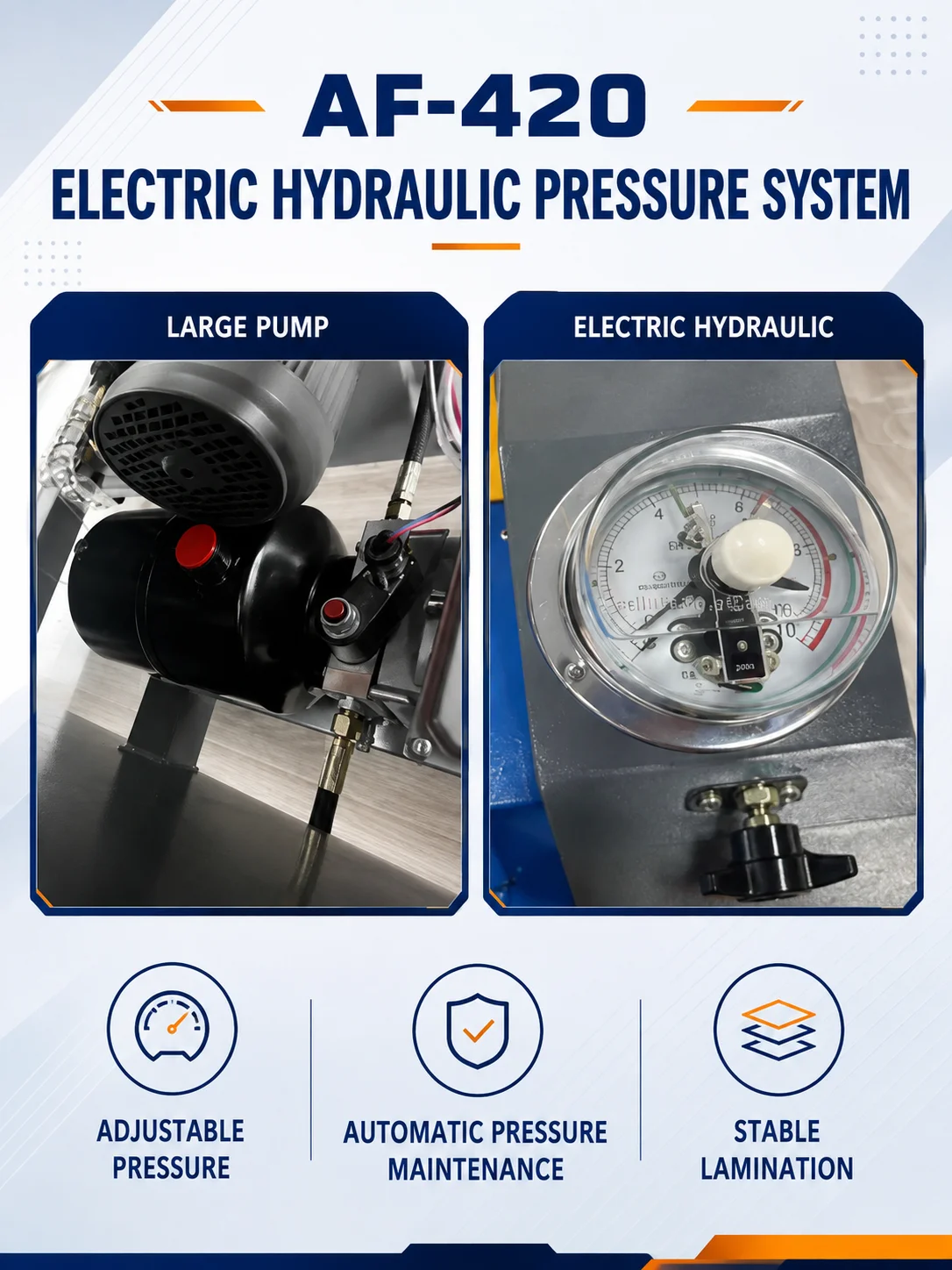

Hydraulic pressure with automatic pressure maintaining — pressure holds steady through the whole run, which is what prevents bubbles, snowflake spots and edge lift on digital and coated stock.

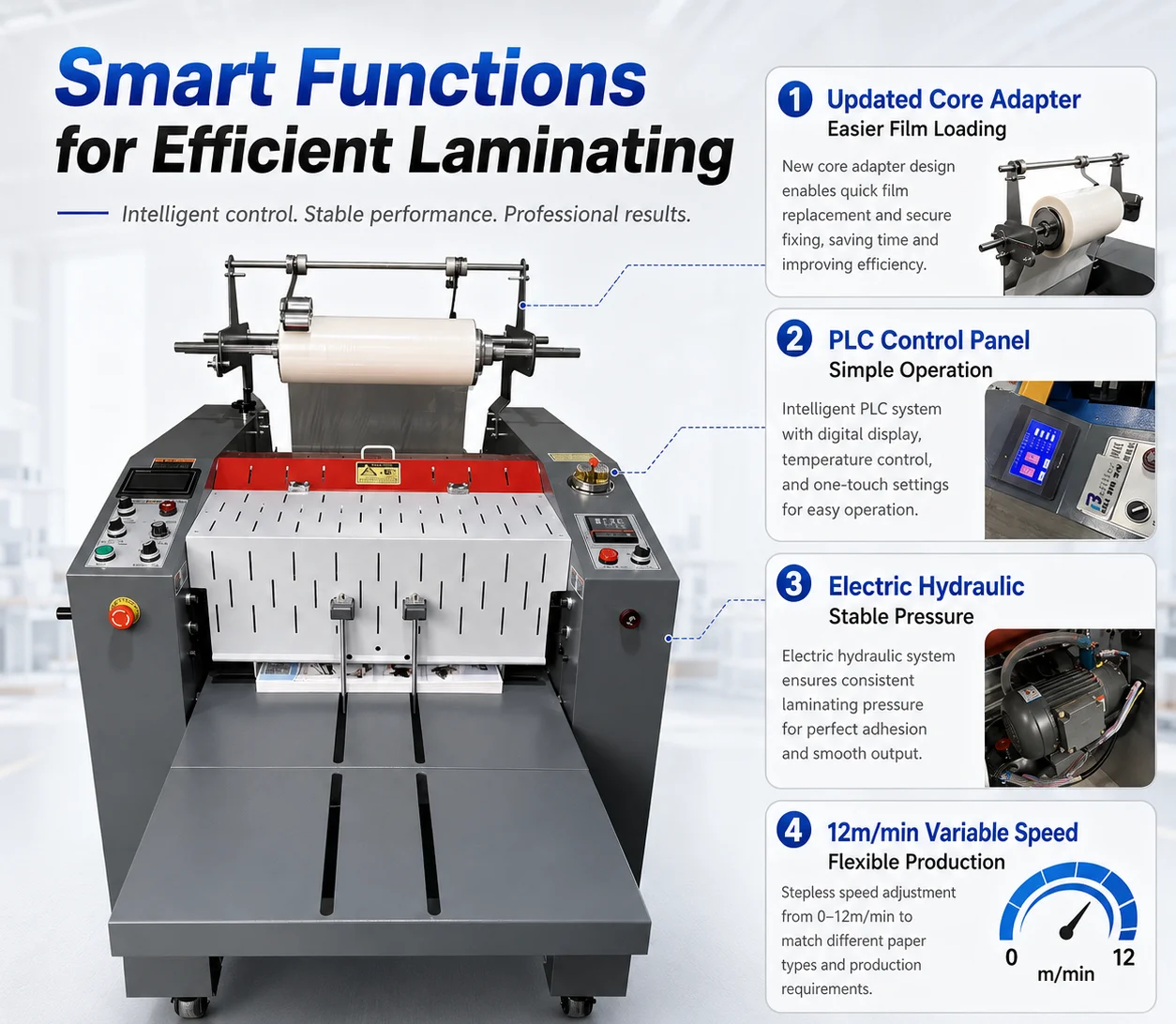

MITSUBISHI PLC with LCD touch screen — speed, temperature and pressure are set digitally and repeat between jobs, so results don't shift with the operator.

Up to 12 m/min with variable frequency speed control — production speed that keeps pace with a digital press, not office-grade output.

Ø200 mm mirror-finish chrome steel roller with Ø135 mm silicone lower roller — large rollers spread heat and pressure evenly across the full 400 mm width, and the chrome surface resists film build-up.

Overlap accuracy of ±2 mm — sheets come out stacked in register, so the next cutting or folding step doesn't need re-jigging.

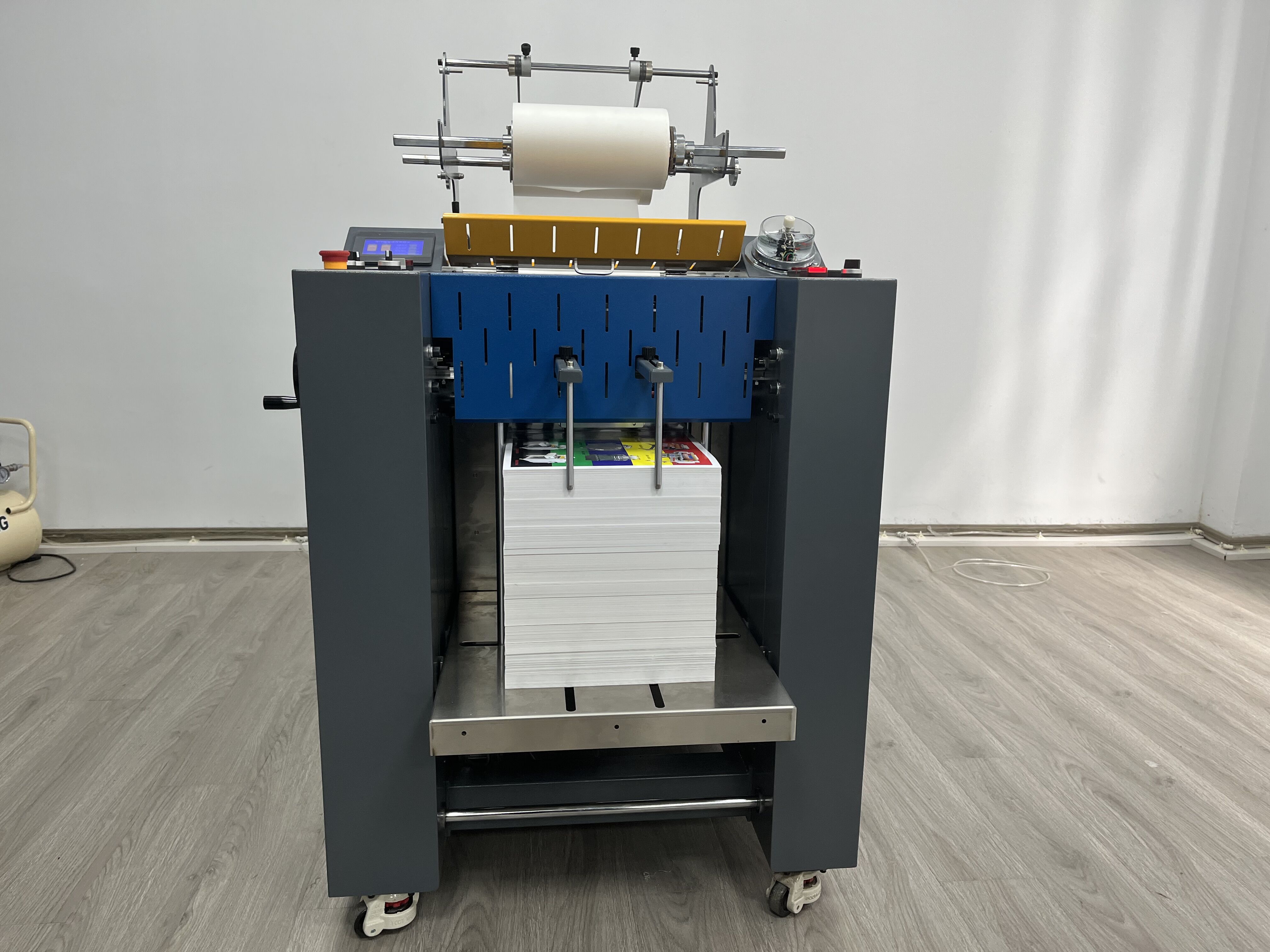

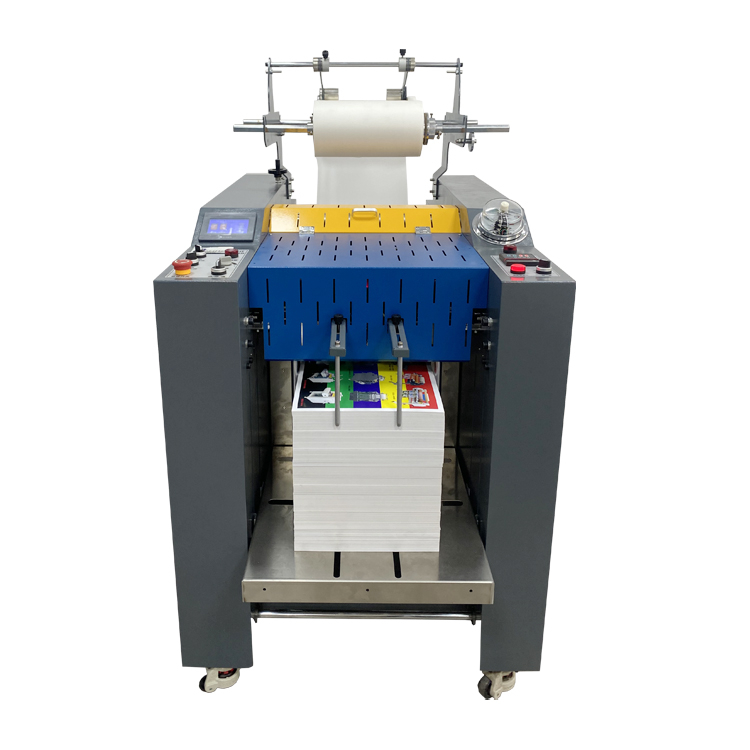

40 cm intelligent lifting platform — a tall stack loads in one go, cutting reloading downtime on long runs.

20 cm of usable stack plus two film rolls of up to 3,000 m on Φ75 mm cores — fewer film changes and longer unattended runs.

Triple protection with automatic stop — the machine halts on no film, no paper or a paper break, so it can't run film onto a bare roller or jam a sheet while nobody is watching.

Runs on 220–240 V single phase — no three-phase supply needed, which means it can go into shops that don't have a 380 V line. Preheats to 100 °C in about 10 minutes at room temperature.

Handles 128–450 gsm — light stock through heavy board on one machine, across a 400 × 650 mm maximum sheet size.

8. Packing & Shipping

Standard export wooden case packaging, one unit per case.

Sea, air or express freight available to your port or door.

Crate size 185 × 95 × 128 cm, gross weight 600 kg. Contact us for loading quantities and machine dimensions.

9. After-Sales & Support

Every unit is tested before shipment, with a machinery test report and outgoing inspection video provided.

12-month warranty with spare parts supply.

Online technical support directly from factory technicians, plus user manual and operation guide.
