CCA-330

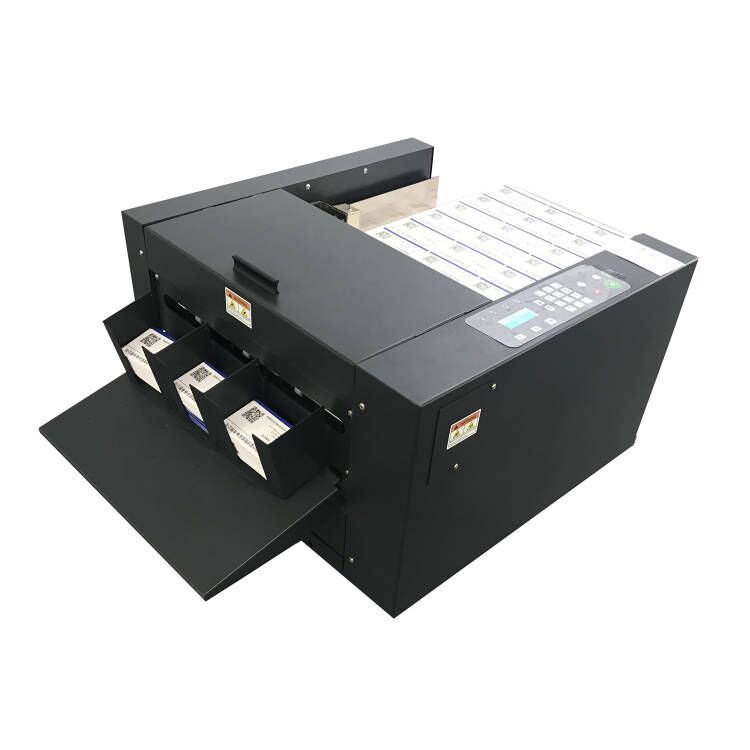

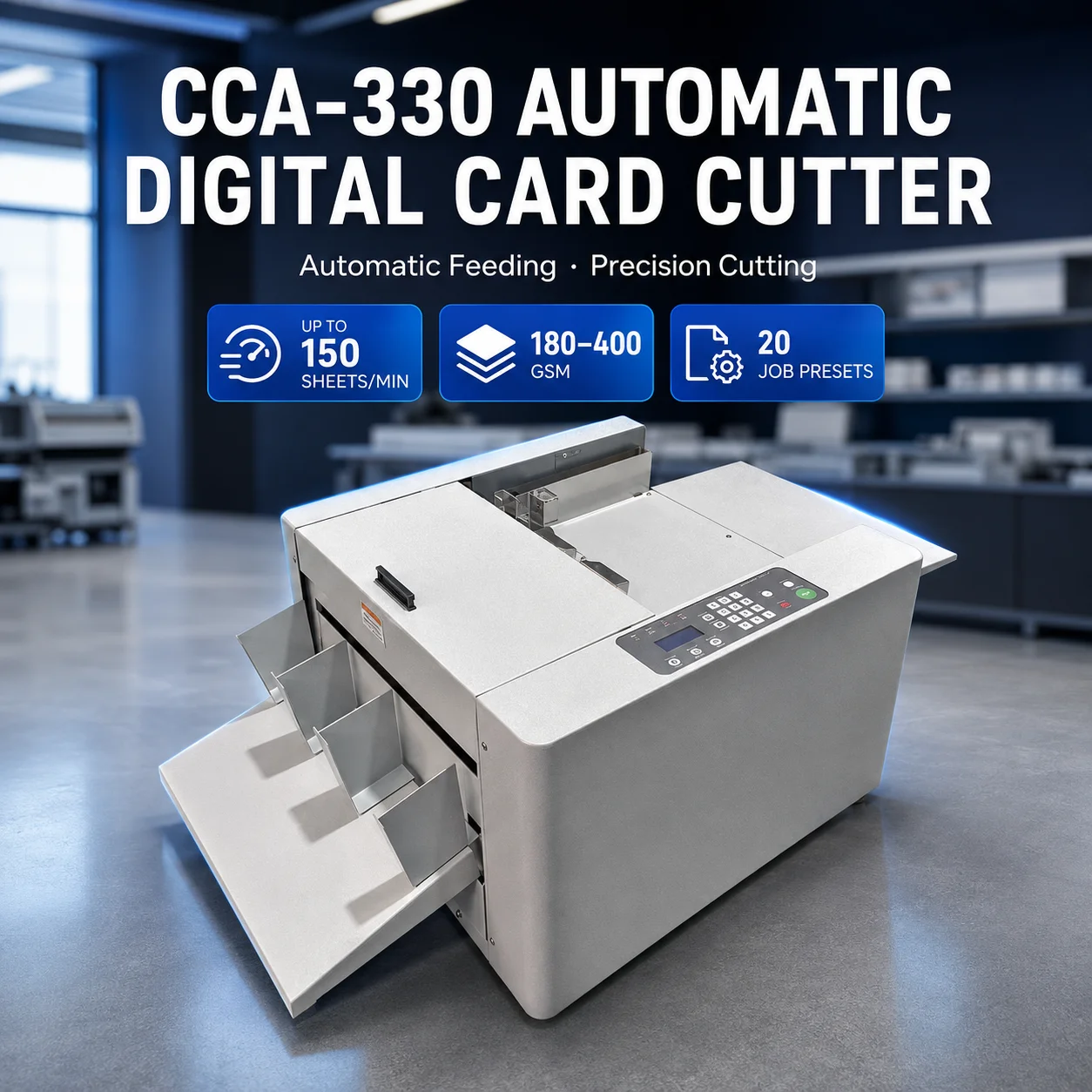

CCA-330 automatic digital business card cutting machine
CCA330, which is newly built by a professional technical team,is a full-automatic digital cutting machine with ultra-high cost performance. The operatingsystem of this product is controlled by a high-speed and stable chip, and the workingefficiency will be doubled when a piece of paper is cut many times. Humanized softwaresystem can be operated immediately without professional training. The design of the machine fully considers all kinds of possible situations for cuttingcard processing in the industry. The cutting machine can be freely adjusted in X directionand Y direction, which can meet the cutting of various customized cards and variouspersonalized cards. It is suitable for all kinds of papers with width of 330mm, length of 990mm andthickness of 100-350g/㎡.
The minimum cutting size of the card is (30mm*40mm)
The maximum card cutting size is (265mm*900mm) Machine application range: Business cards, photos, tags, postcards, Christmas cardsand so on
Business Cards — cuts a full laid-out sheet into finished cards in one pass, up to 150 cards per minute, with clean edges and consistent size across the run.
Photos & Photo Cards — standard photo formats cut to finished size straight off a digital printer, on coated stock up to 400 g/m².
Postcards & Greeting Cards — high-volume card work where hand cutting can't hold register, with the ±0.3 mm accuracy keeping pieces uniform.
Christmas Cards & Seasonal Print — short, heavy seasonal runs finished in-house instead of sent out, with pre-set layouts repeatable year on year.
Tags & Hang Tags — cuts tags to size from sheets up to 330 × 990 mm, in one pass rather than piece by piece.
Print Shops, Photo Studios & In-House Print Rooms — small-batch card production finished next to the digital press, working alongside any digital printer or copier.
Why Choose This Machine
Dual rubbing-wheel auto feeding with a 50 mm stack capacity — load a stack and it runs continuously, so one operator handles jobs that would otherwise be fed sheet by sheet.
150 business cards per minute (60 seconds / 150 cards) — short-run card work finishes in minutes, not hours, which is the whole point of owning a cutter instead of hand-trimming.
±0.3 mm working accuracy across the full 330 × 990 mm sheet — registration holds from the first card to the last, so the run stays uniform.
Cross-cutting 1–90 times with 0–100 mm groove width — set the number of cross cuts per sheet to the card layout, and change it for the next job without swapping a die.
Self-sharpening cross-cutting blade rated for one million cuts — the cut stays clean over long runs instead of tearing as the blade dulls.
Handles 150–400 g/m² coated and laminated stock — the paperweights print shops actually run, from light cards through heavy laminated covers.
Cut sizes from 30 × 40 mm up to 265 × 900 mm — covers business cards, photos, postcards and tags on one machine, without a dedicated cutter for each format.
Runs on 110V/60Hz or 220V/50Hz — ships ready for either market, so the same unit works in North America and Europe.
Paper curl tolerance ≤ 0.2 — flat sheets feed and cut reliably, which is what stops the mis-feed and skewed cut that curled stock causes.
Compact 150 W desktop unit at 49 kg — sits next to the digital press, draws a fraction of what a guillotine does, and needs no dedicated operator room.
8. Packing & Shipping
Standard export carton packaging, one unit per case.
Sea, air or express freight available to your port or door.
Net weight 49 kg, gross weight 59 kg. Contact us for crate dimensions and loading quantities.
9. After-Sales & Support
Every unit is tested before shipment, with a machinery test report and outgoing inspection video provided.
12-month warranty with spare parts supply.
Online technical support directly from factory technicians, plus user manual and operation guide.
