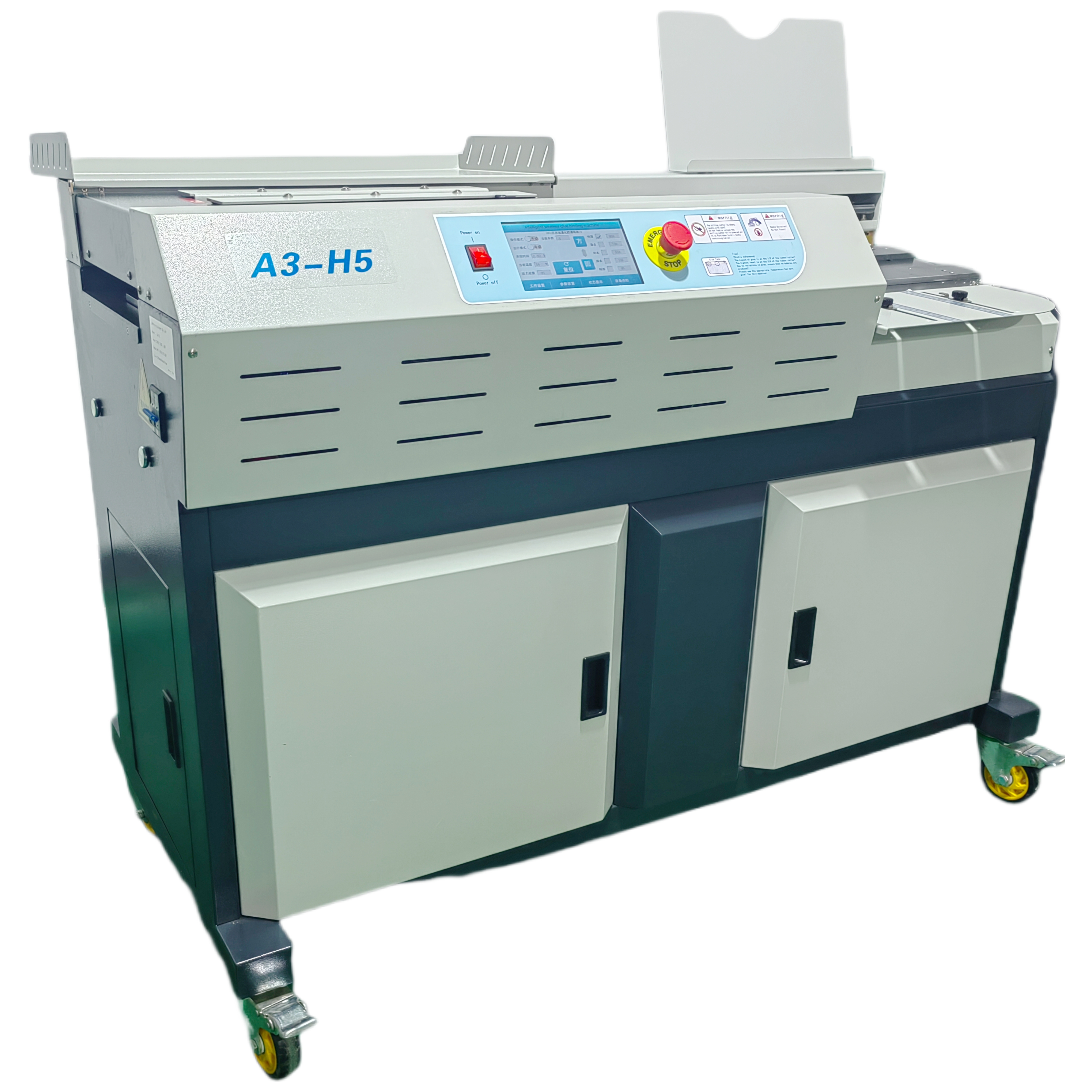

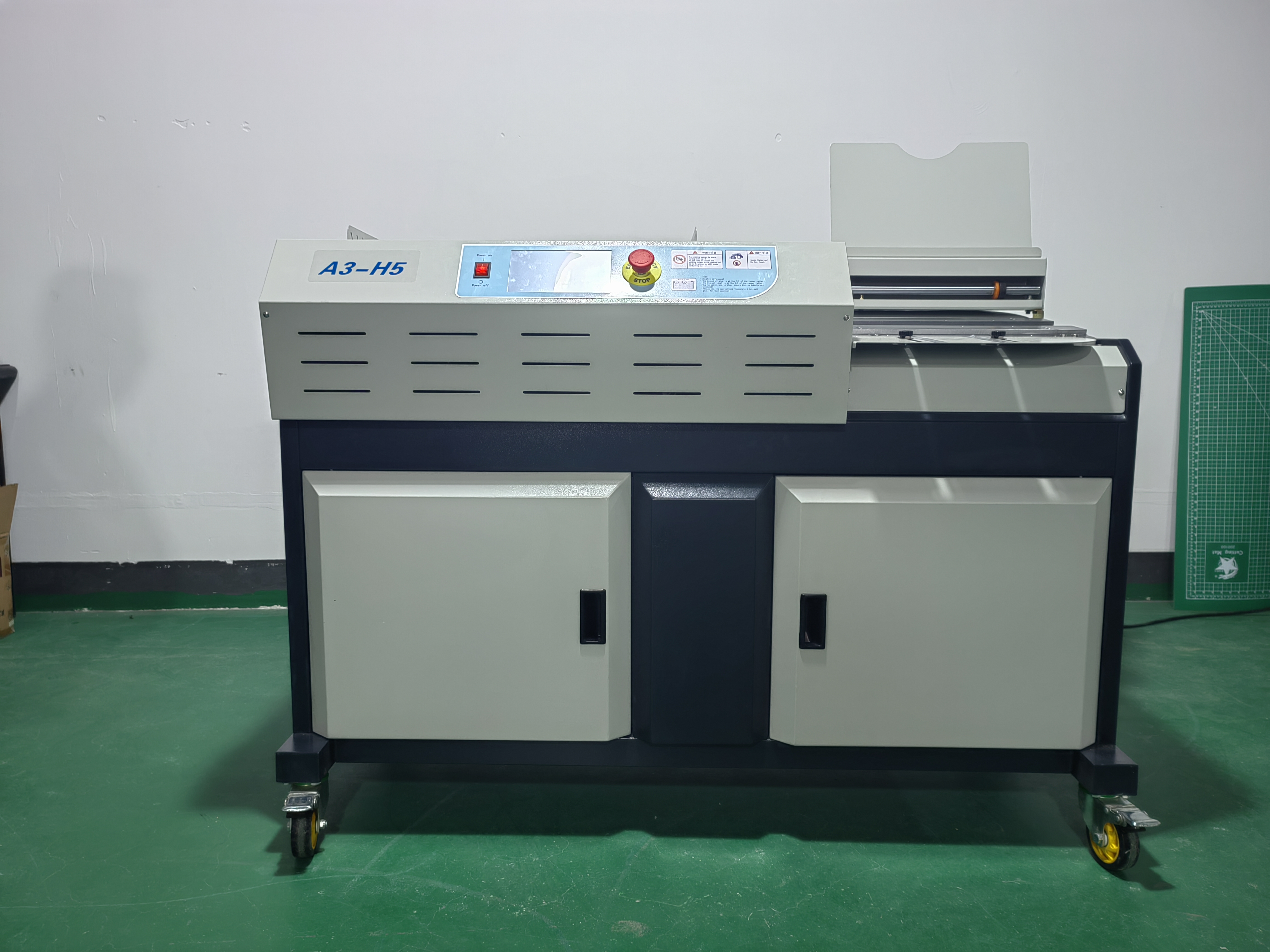

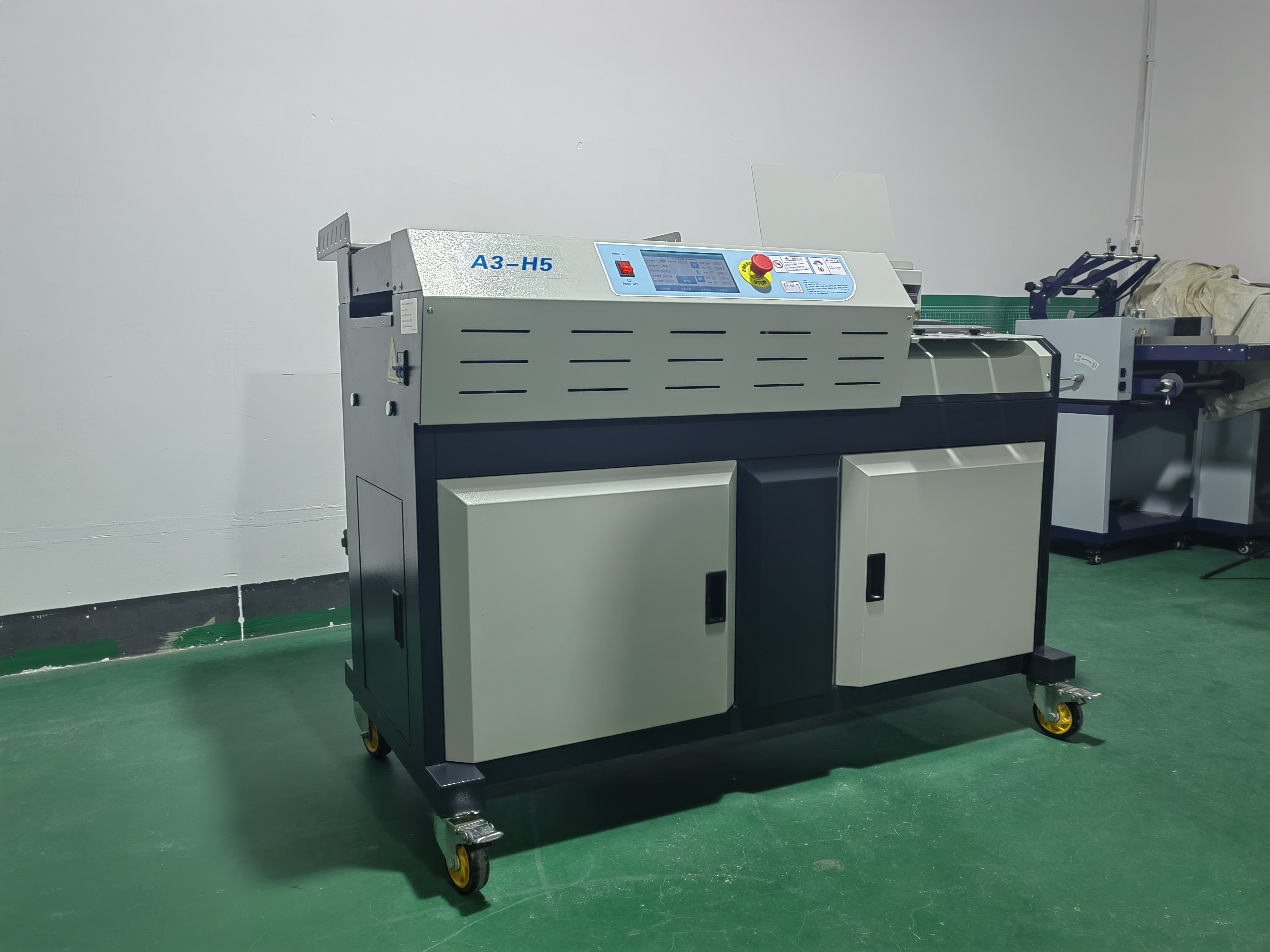

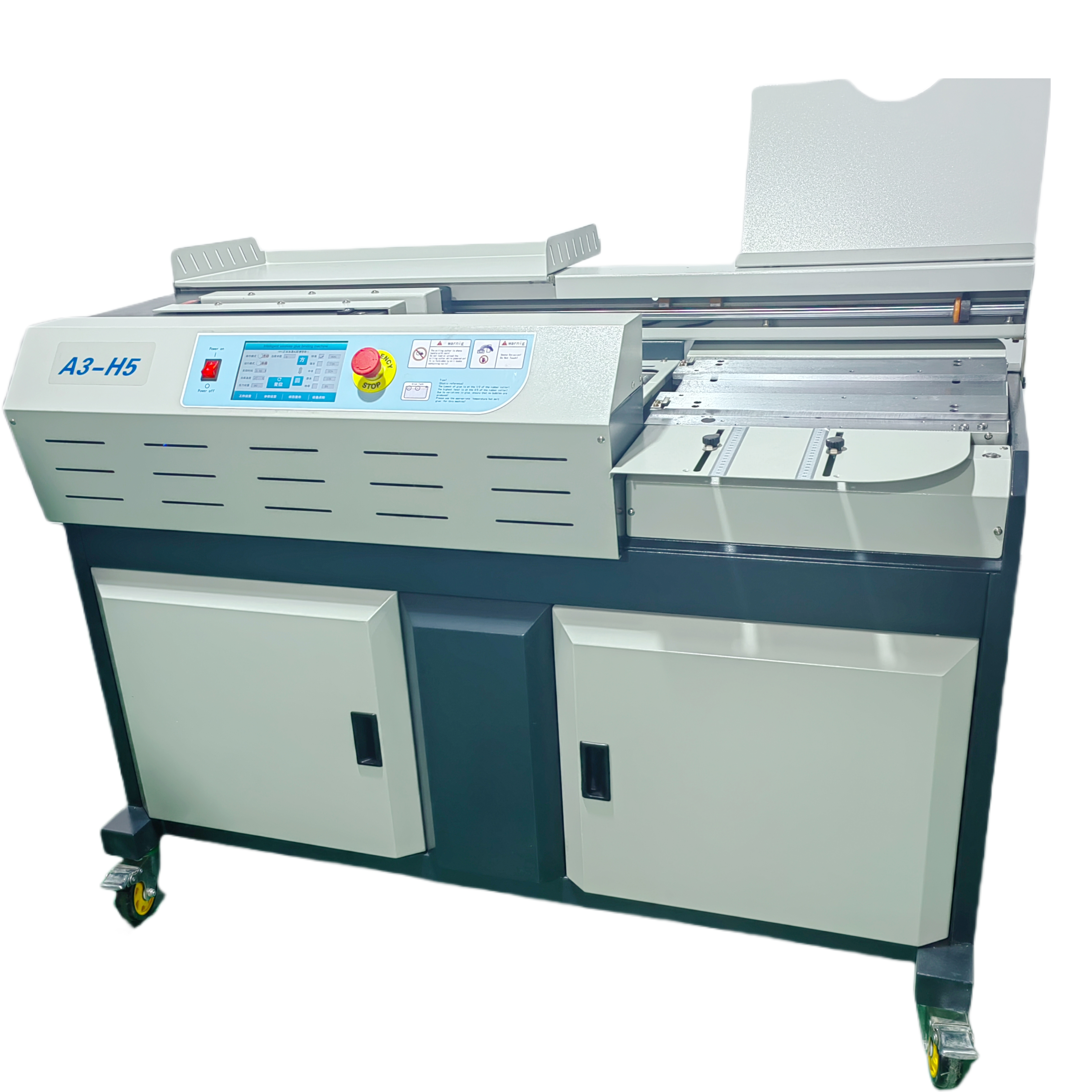

A3-H5 Heavy-Duty Automatic Perfect Binding Machine with Side Glue System

The A3-H5 Automatic Perfect Binding Machine is a heavy-duty hot melt glue binder designed for commercial book production, print shops, publishing houses, and copy centers. Equipped with a PLC control system, side glue application, tungsten steel milling cutter, and intelligent dual-mode operation, it delivers strong, professional, and durable binding results. With a maximum binding thickness of 70mm and a production speed of up to 350–400 books per hour, the A3-H5 is ideal for manuals, catalogs, reports, softcover books, training materials, and commercial printing applications.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

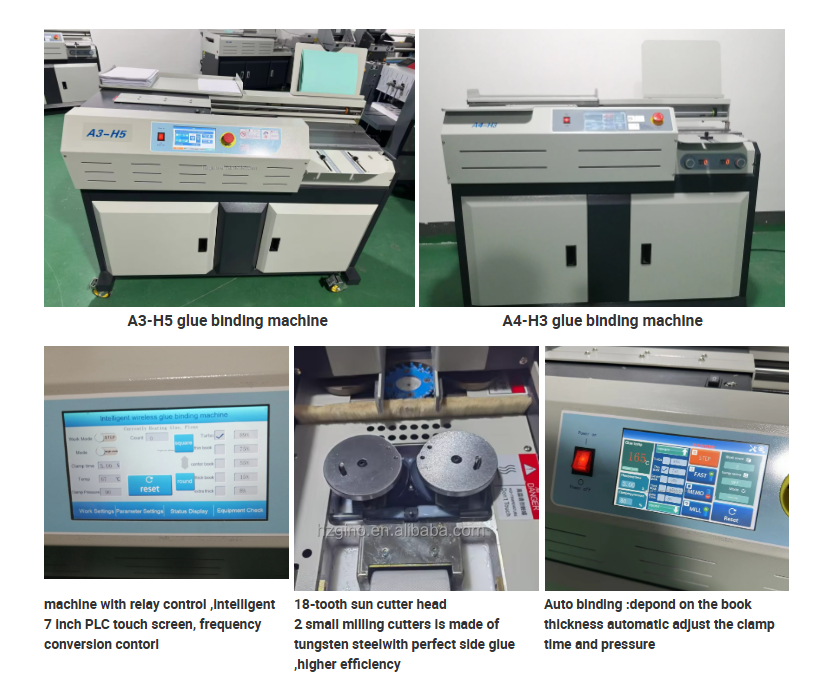

  • A3-H5

Dual-mode frequency conversion hot melt glue binding machine

a. It is easy to operate, such as automatic and manual switching, binding counting function, insurance function, preheating display, machine detection function, etc.

b. Clamps with hard chrome plating.

c. The glue groove and high-density tungsten steel milling cutter made of aluminum alloy gravity casting are sturdy and durable.

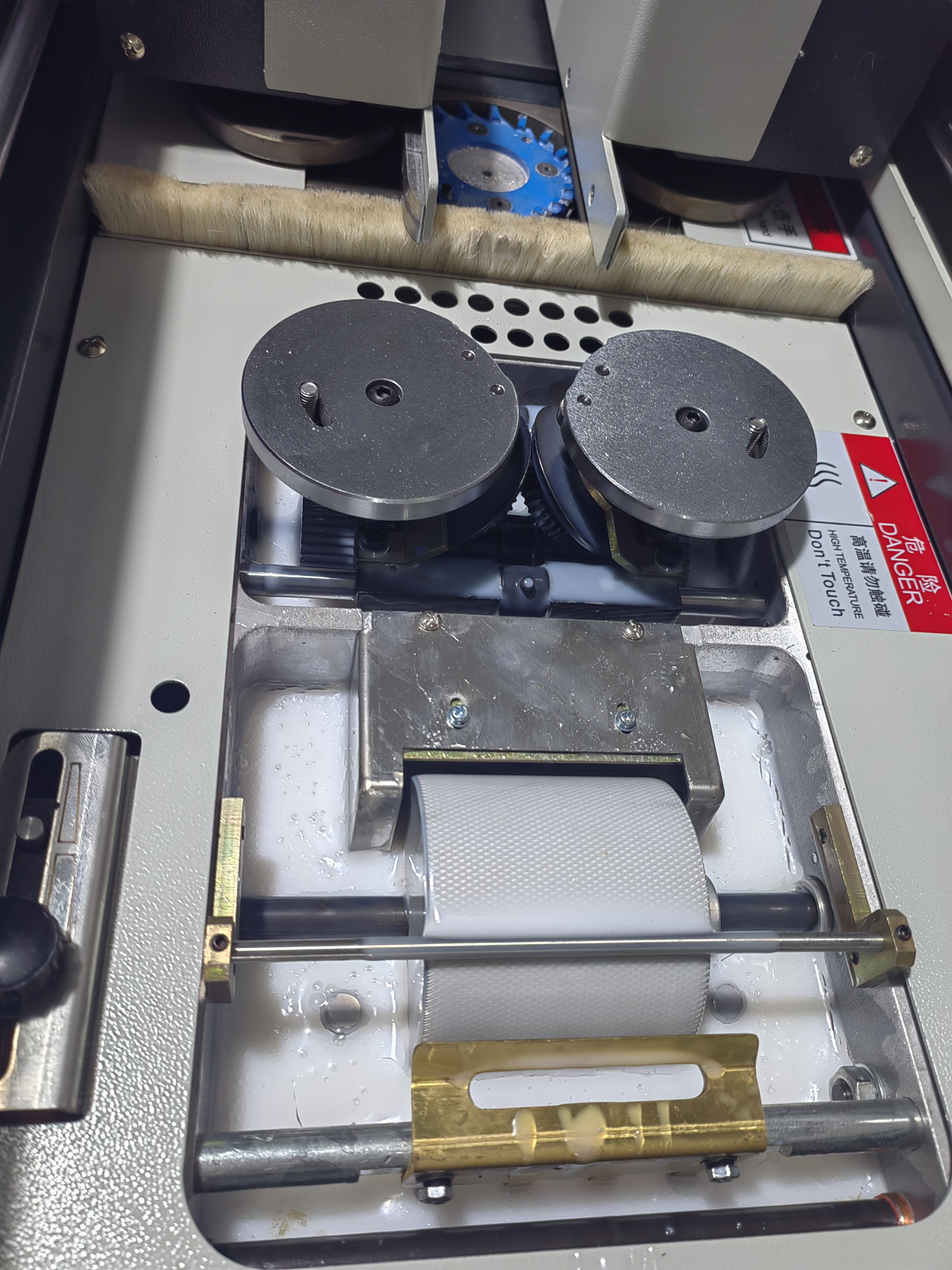

d. The milling cutter method is a sun milling cutter + a small milling cutter or 14 small milling cutters. The number of sun milling cutters is 24 teeth, which has stronger processing capabilities for folding, coated paper and thicker books.

e. The machine runs at a speed of 400 books/hour.

f. The cover thickness used is between 70g-250g.

g. It has a notebook binding (without cover)function.

h. The machine has a heat preservation function.

i. The temperature control is electronically controlled.

j. When the machine fails, the main power supply will be automatically cut off.

k. The maximum length of the book: 420mm.

l. The maximum thickness of the book: 70mm.

m. The machine uses Taiwanese technology.

n. The motor can be guaranteed for one year or 300,000 times.

o. The machine operation panel is a Taiwanese switch, and the operation is very simple.

p. The small milling cutter is made of Swiss tungsten steel. (Swiss tungsten steel is currently the best in the world)

q. The machine has passed the European "CE" certification.




• Perfect Bound Books

• Product Catalogs & Brochures

• Training Manuals & Handbooks

• Commercial Printing Production

• Publishing Houses

• Educational Materials

• Corporate Reports & Presentations

• Copy Centers & Print Shops



Why Choose This Machine

• Production Speed up to 350–400 Books/Hour

• Maximum Binding Thickness up to 70mm

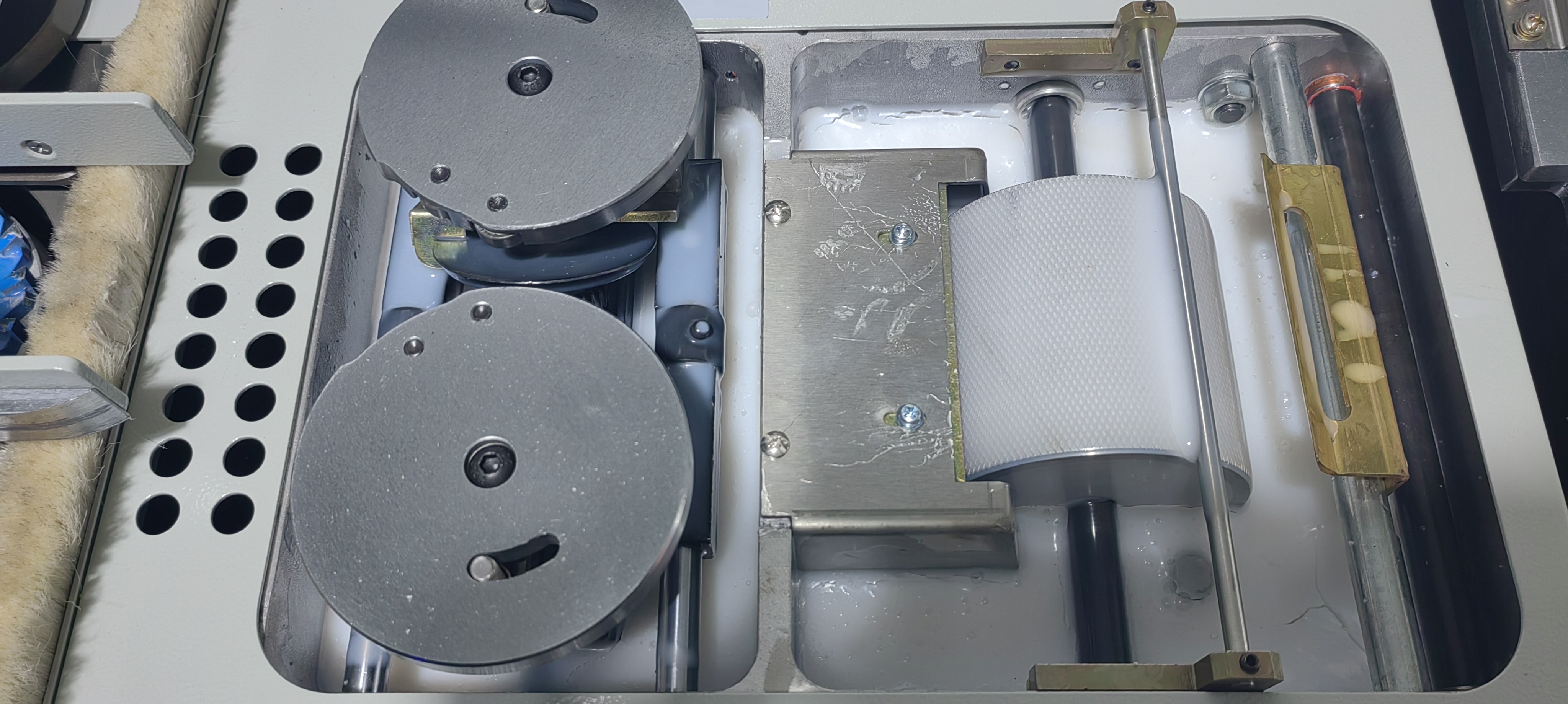

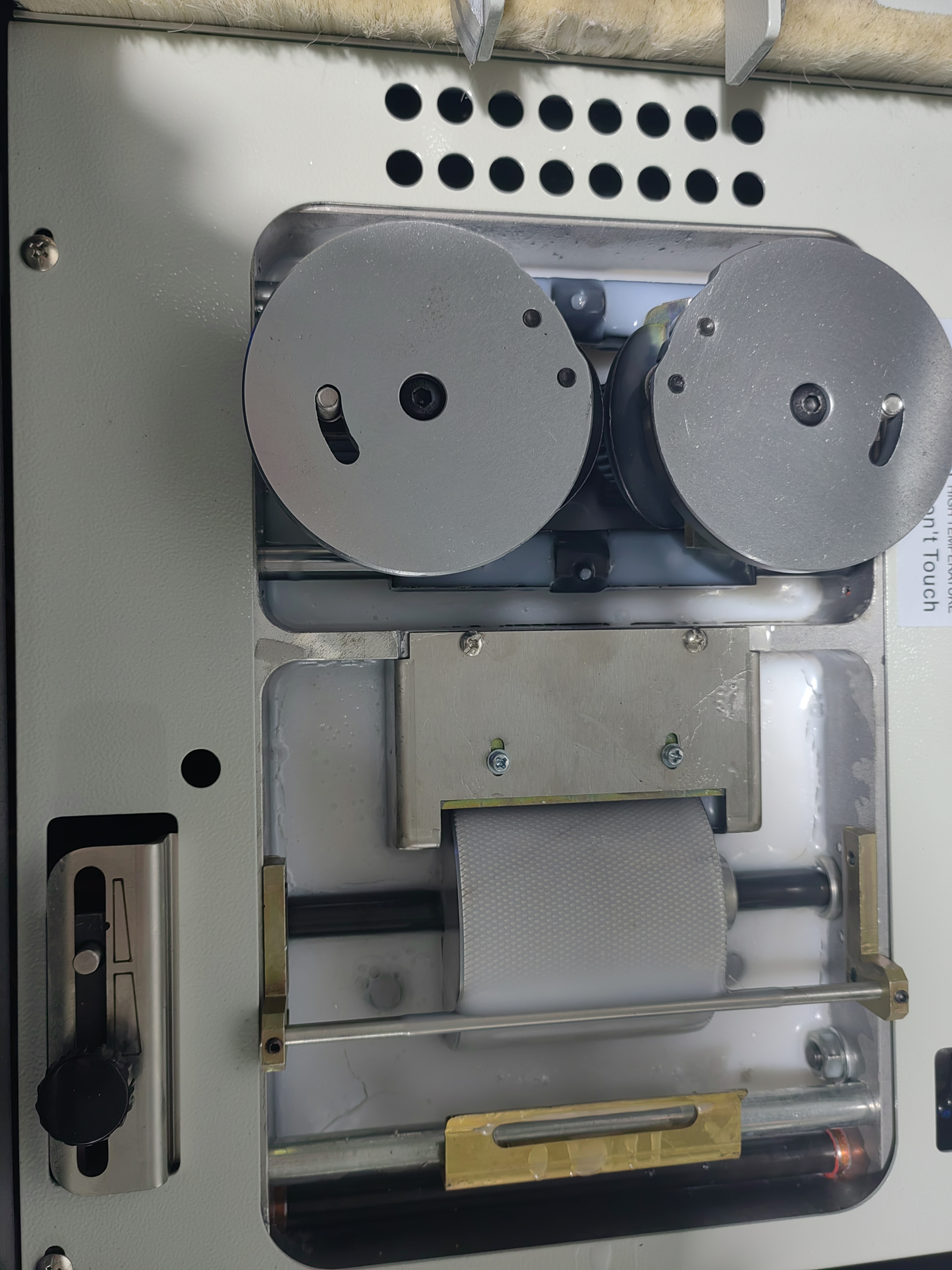

• Integrated Side Glue System for Stronger Binding

• Tungsten Steel Sun Milling Cutter

• Omron Relay & PLC Control System

• Automatic & Manual Dual-Mode Operation

• Automatic Thickness Detection Function

• 10.1-Inch Touch Screen Control

• Suitable for Coated Paper & Thick Books

• Heavy-Duty Industrial Construction for Commercial Production





Packing & Shipping

Standard export wooden case packaging.



Options for sea, air, or express freight delivery.



Contact us for dimensional and weight details.



After-Sales & Support

User manual and operation guide included.



Warranty and spare parts support available.



Online technical support with factory technicians.
