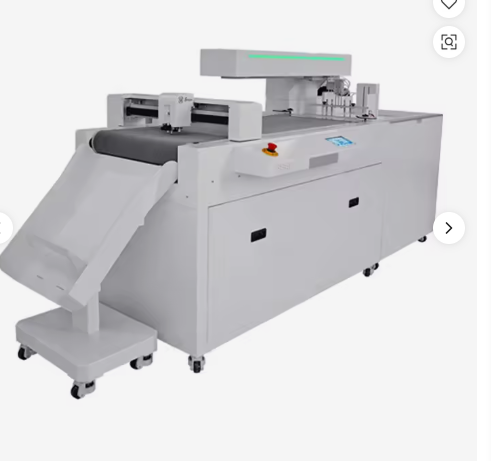

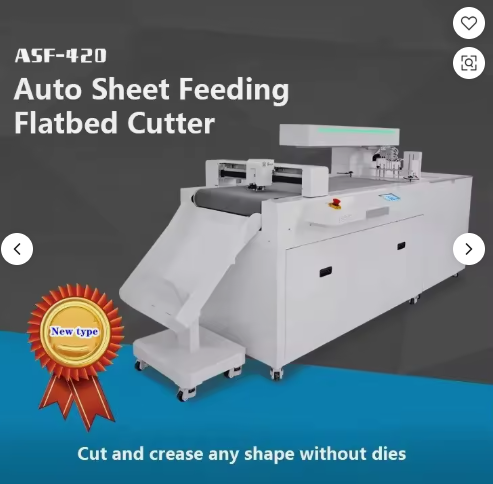

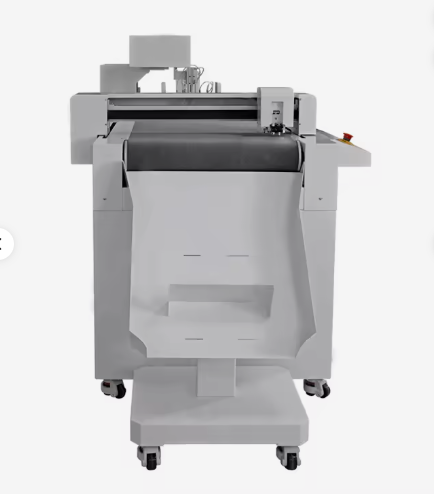

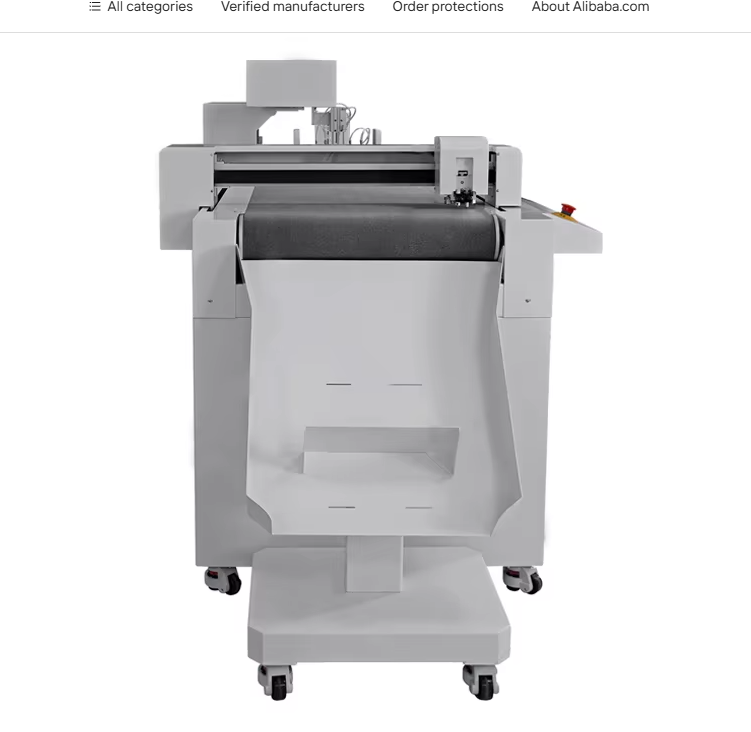

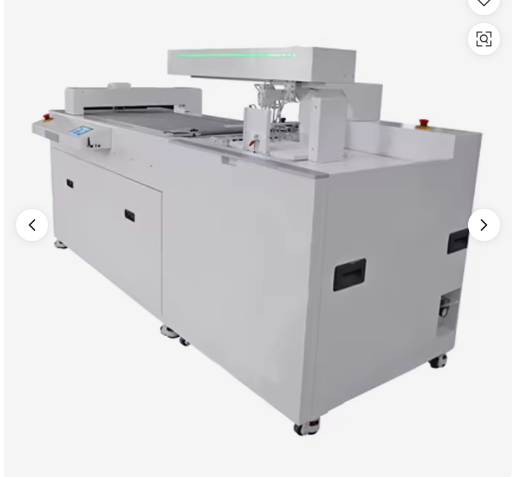

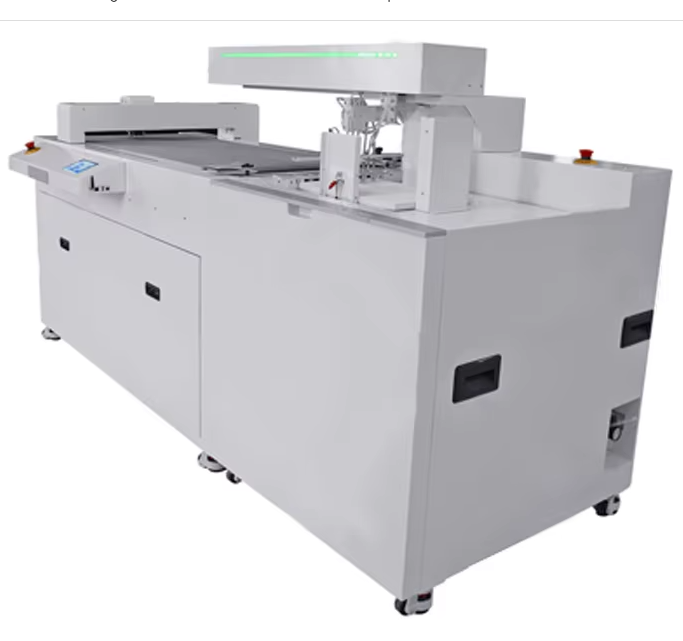

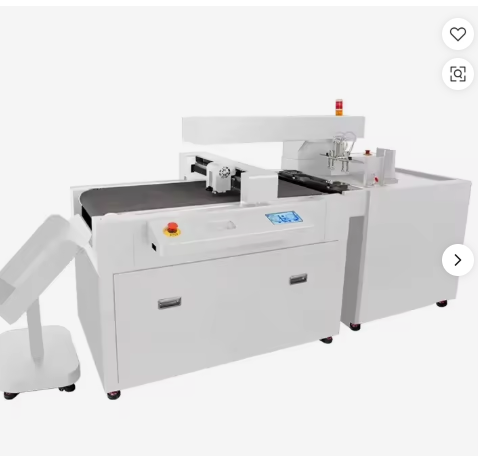

ASF-420 Automatic Sheet Feeding Digital Flatbed Die Cutter with CCD Vision System

ASF-420 Automatic Sheet Feeding Digital Flatbed Die Cutter with CCD Vision System

The ASF-420 Automatic Sheet Feeding Digital Flatbed Die Cutter is a professional digital finishing solution designed for labels, stickers, folding cartons, packaging prototypes, and commercial print production. Equipped with an automatic lifting feeder, CCD vision positioning system, dual tool heads, and a vacuum suction platform, it delivers accurate full cutting, kiss cutting, creasing, and drawing without traditional dies. Supporting automatic sheet feeding and rear scanning with rear cutting, the ASF-420 significantly improves productivity while reducing labor costs, making it an ideal solution for packaging manufacturers, digital print shops, and commercial finishing centers.

Quantity:
Availability:





Inquire Add to Basket

Model:
ASF-420

Auto Feeding Digital Flatbed Sheet Cutter Cutting Flatbed Cutting Machine with Back Cut ASF420

Features:
1.Two groups of tools including roland blade and creasing tool;Tangential blade and wheels type creasing tool.
2.Self-development software/CorelDRAW plugin/Illustrator plugin
3.Self-designed UI and touchscreen
4.USB cable/USB/WiFi/Net share/Net cable/Inner disk/Software,different ways to output.
Application:
1.Cardboard up to 600gsm.All kind of sticker.
2.PVC/PET/PP
3.Corrugated paper no more than 0.3mm

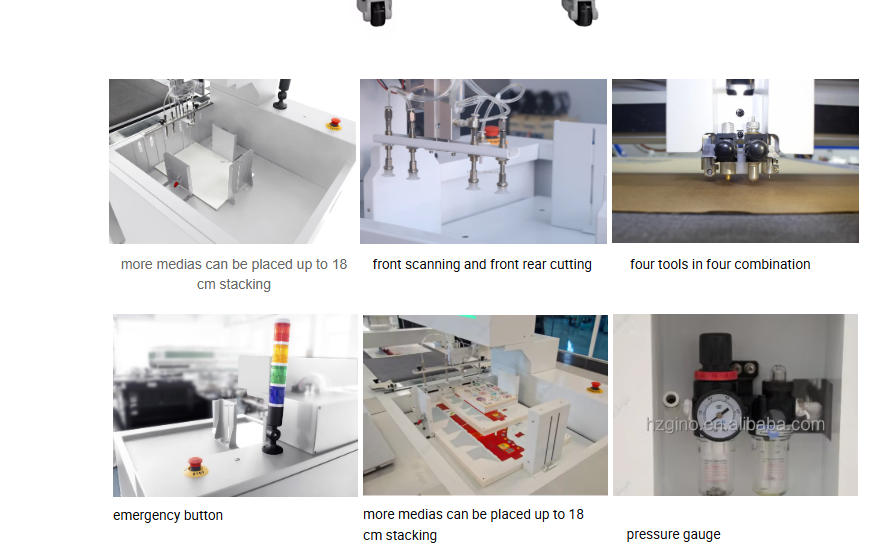

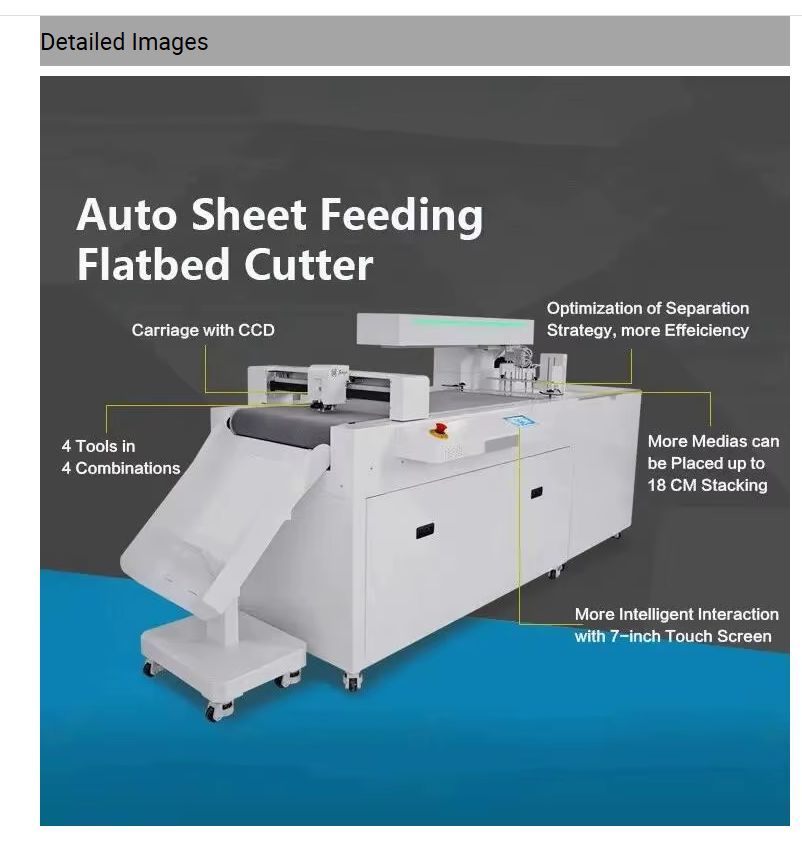

1. Digital die-cutting crafts which meet mass production process standard
2. More intelligent interaction with 7-inch touch screen
3. 4 tools in 4 combinations
4. Automatic induction lifting feeder combined with independent paper feeding system
5. Feeding, REAR scanning and REAR cutting separately with non-interference
6. Wider application scenarios with wider format and thicker material
7. More medias can be placed up to 18 CM stacking
8. The speed are greatly improved both on scanning and running
