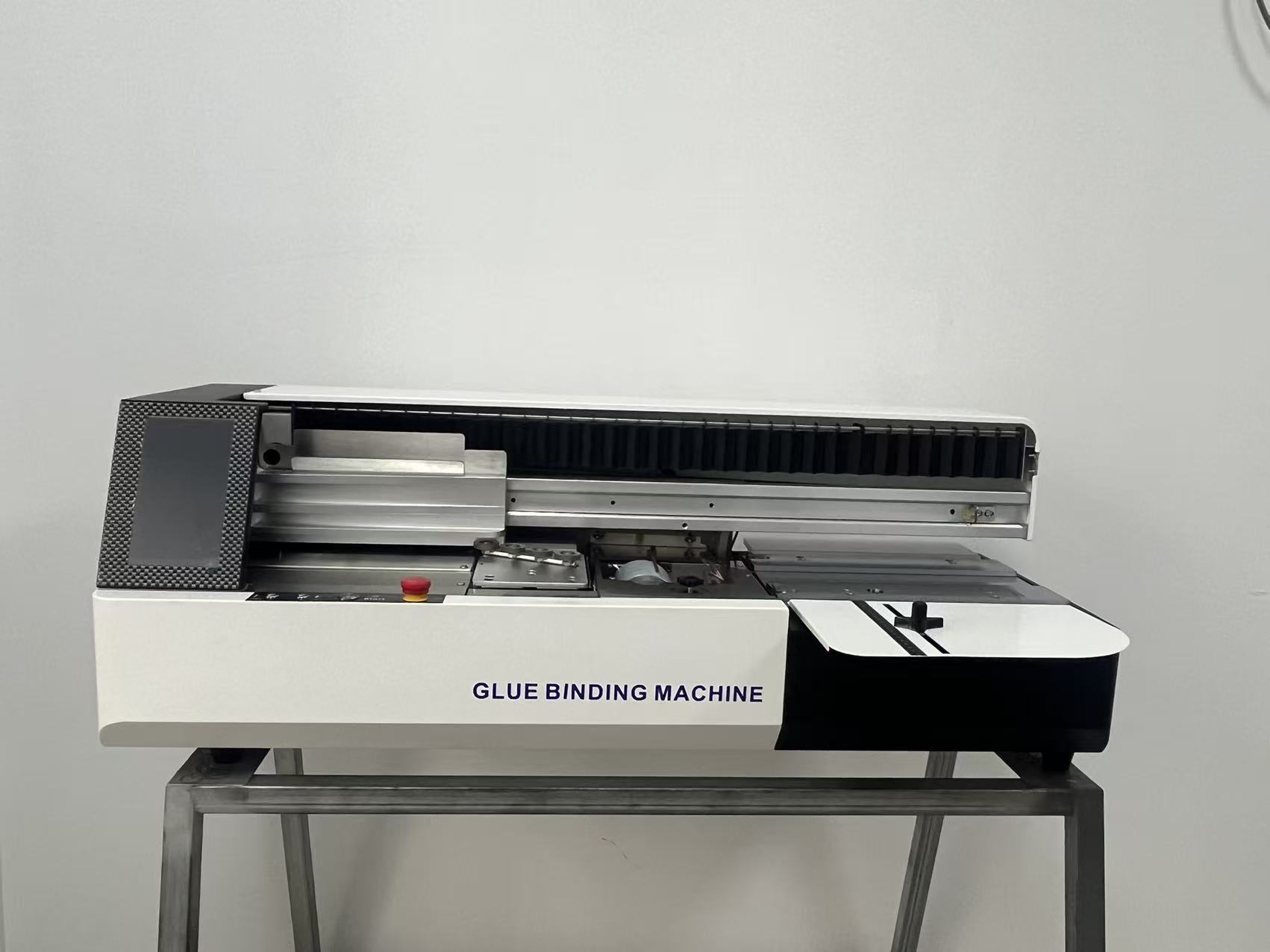

D50A4 Automatic Perfect Binding Machine | A4 Hot Melt Glue Book Binder with Touch Screen Control

D50A4 Automatic Perfect Binding Machine | A4 Hot Melt Glue Book Binder with Touch Screen Control

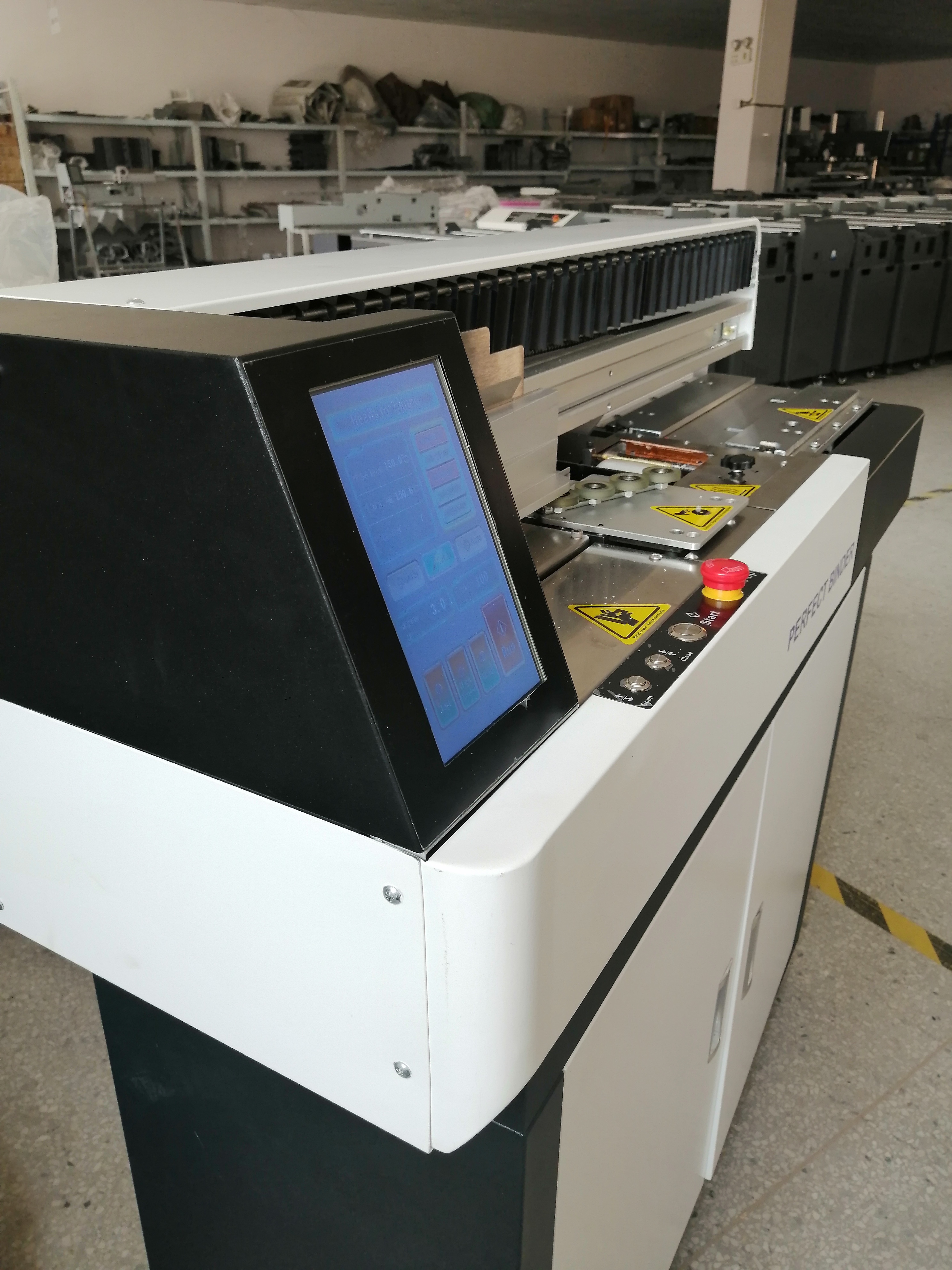

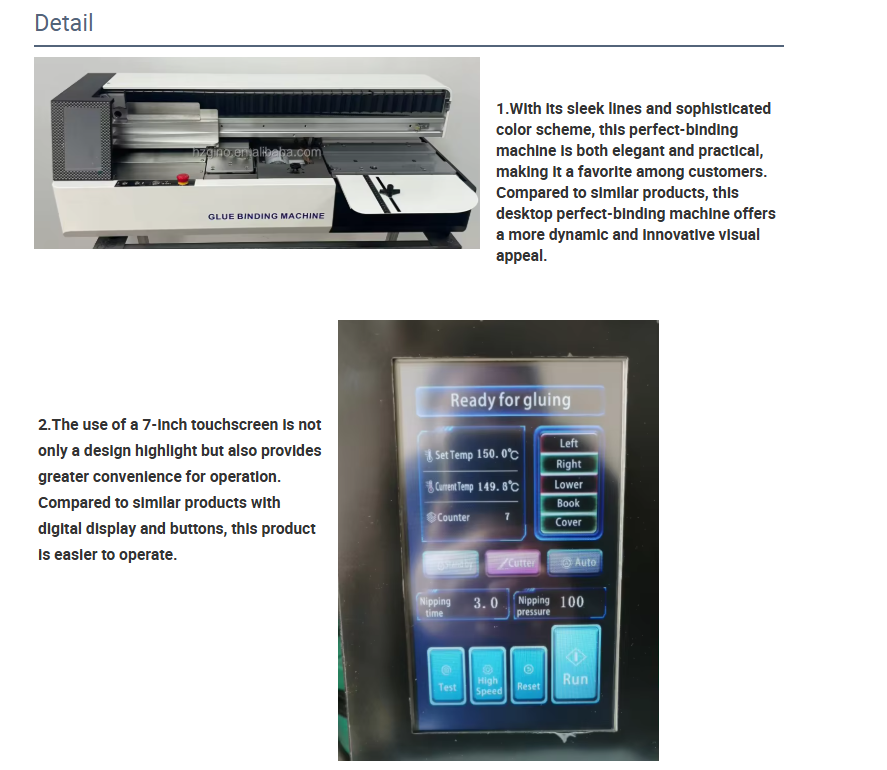

The D50A4 Automatic Perfect Binding Machine is a compact and efficient bookbinding solution designed for print shops, copy centers, offices, and small publishing businesses. Featuring a 7-inch touch screen control system, automatic binding operation, and precision spine milling technology, it delivers professional binding results with easy operation.

With a maximum binding size of 330 × 297mm and book thickness capacity up to 50mm, the D50A4 is suitable for producing books, reports, manuals, catalogs, notebooks, and other softcover publications. Its compact footprint and user-friendly interface make it an ideal choice for businesses seeking reliable post-press binding equipment.

Quantity:
Availability:





Inquire Add to Basket

Model:
D50A4

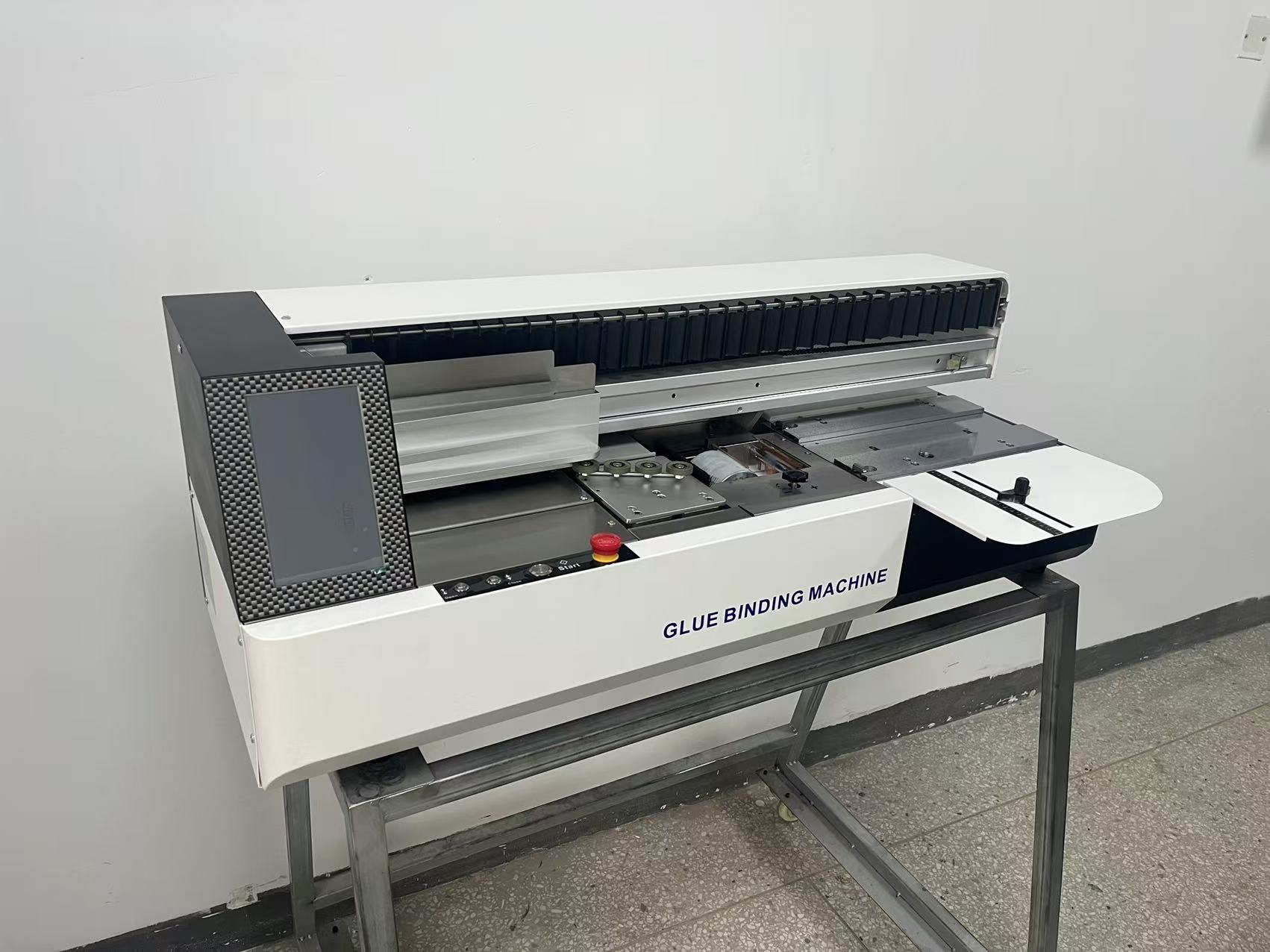

Desktop hot melt glue binding machine

The D50A4 is an automated binding machine designed for high-volume production. It's a robust device capable of binding large A4-sized documents with spines up to 55mm thick, using a combination of milling and comb cutting. Its key features include a touchpad control panel, adjustable speed, and a high cycle rate of 300 books per hour.

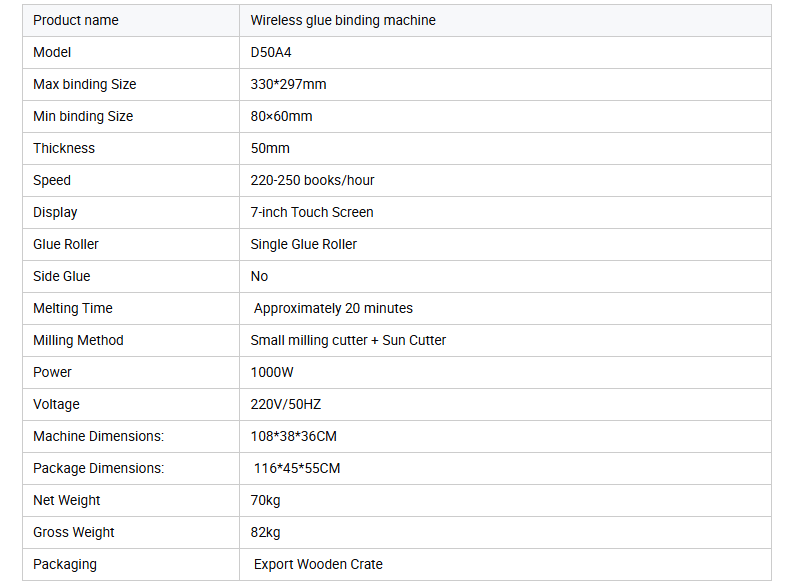

Key Features & Specifications

Model:D50A4

·Primary Function: Automated book binding.

·Max Book Size: A4 (300mm / 11.8” spine length).

Max Binding Capacity: Can bind spines up to 55mm (2.16”) thick, suitable for very large documents.

Operation: Offers both Auto & Manual working methods for flexibility.

·Control: Modern Touch Pad interface.

·Speed: Working speed is adjustable, with a maximum output of 300 cycles per hour.

Cover Compatibility: Handles cover thickness from 70 to 300 gsm.

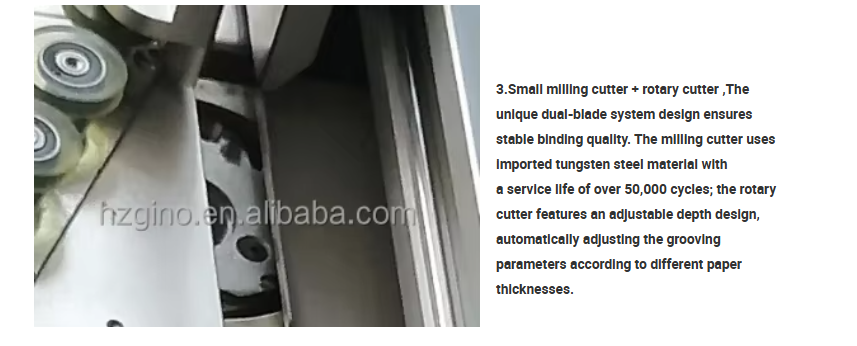

·Cutting System: Uses a dual system:

Milling Cutter: Roughens the spine edge of the pages for better adhesive penetration.

Comb Cutter: Creates grooves in the spine for a stronger bind.

·Pre-heating: Requires 15 minutes to warm up before operation.

·Power: 1000W, running on 220V single-phase power.

·Dimensions: 108 x 38 x 36 cm (Width x Depth x Height). An optional stand is available.

·Weight: 70 kg (Net), indicating a solid, industrial-grade construction.

Analysis & Potential Use Cases

1.Target User: This machine is built for print shops, copy centers, and small-to-medium publishing operations that need to produce perfect-bound books (like reports, theses, manuals, and paperback books) efficiently.

2.Throughput: The high cycle speed of 300 books per hour makes it suitable for environments with significant daily binding demands.

3.Capability: The large 55mm spine capacity allows it to handle very thick documents that smaller desktop binders cannot.

4.Industrial Design: The significant weight and power consumption confirm it is a professional, stationary piece of equipment, not a light-duty office tool.

In essence, the 50A is a professional, high-capacity binding machine designed for productivity and handling a wide range of book sizes and thicknesses.
