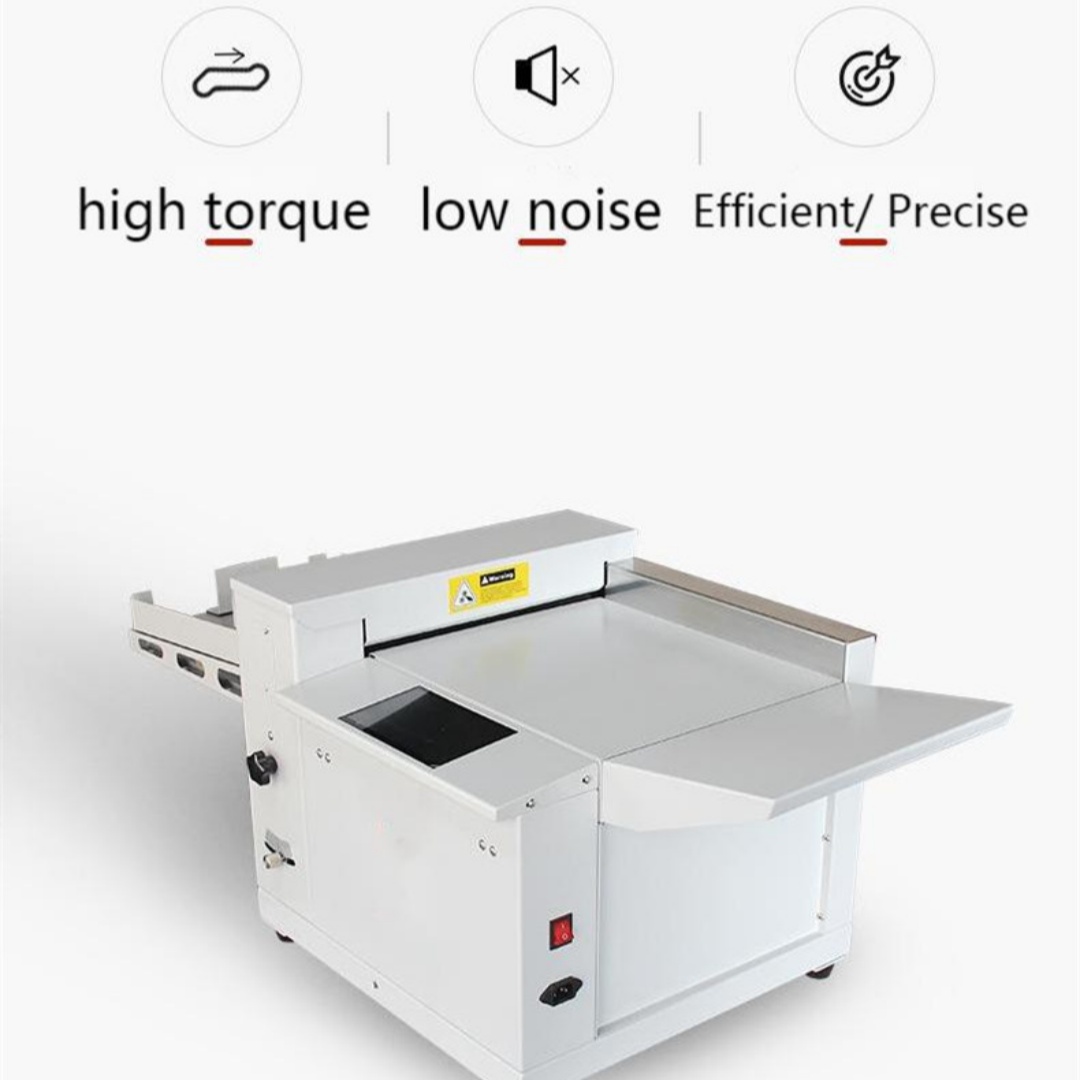

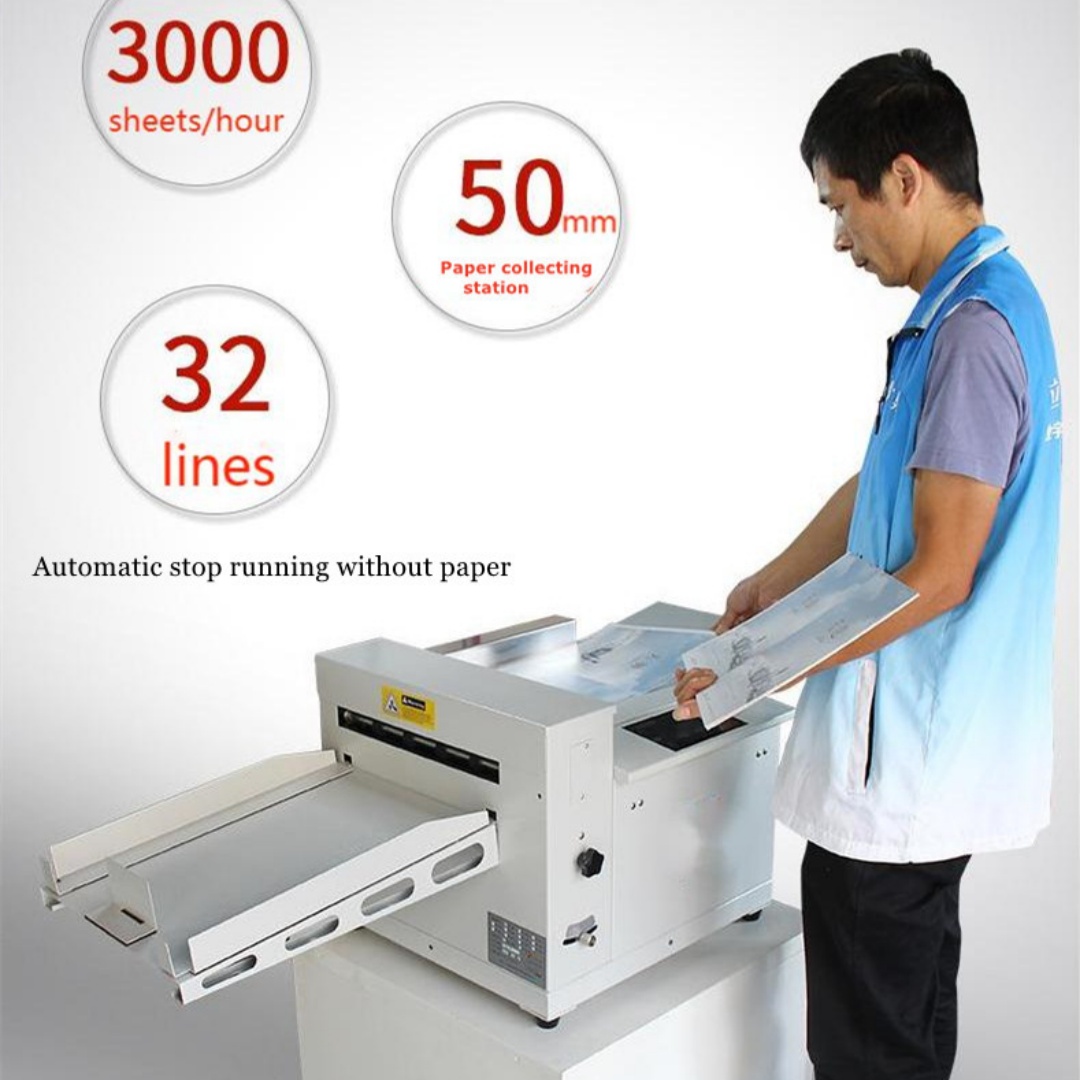

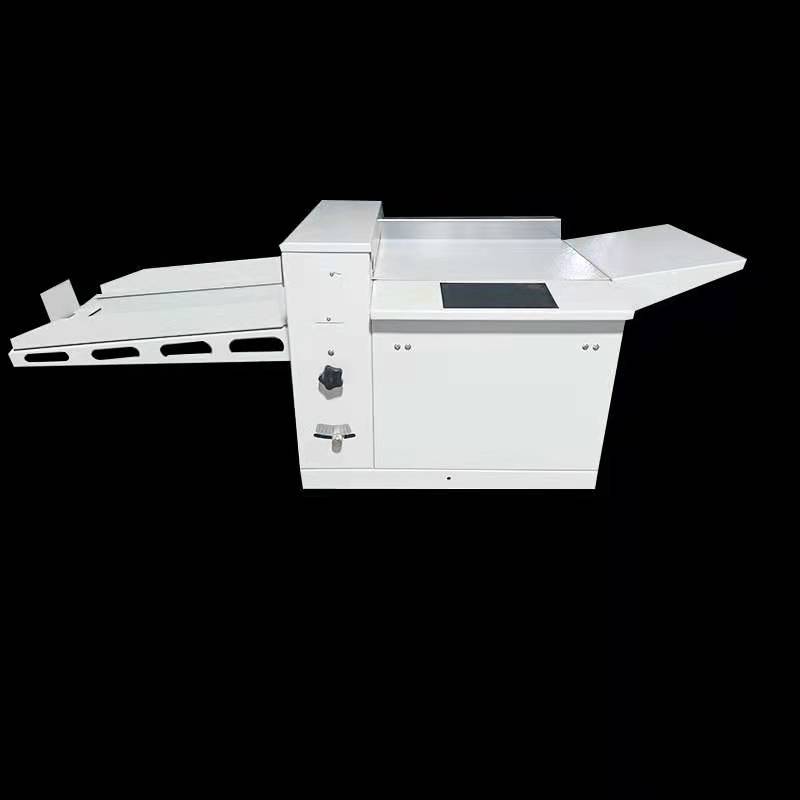

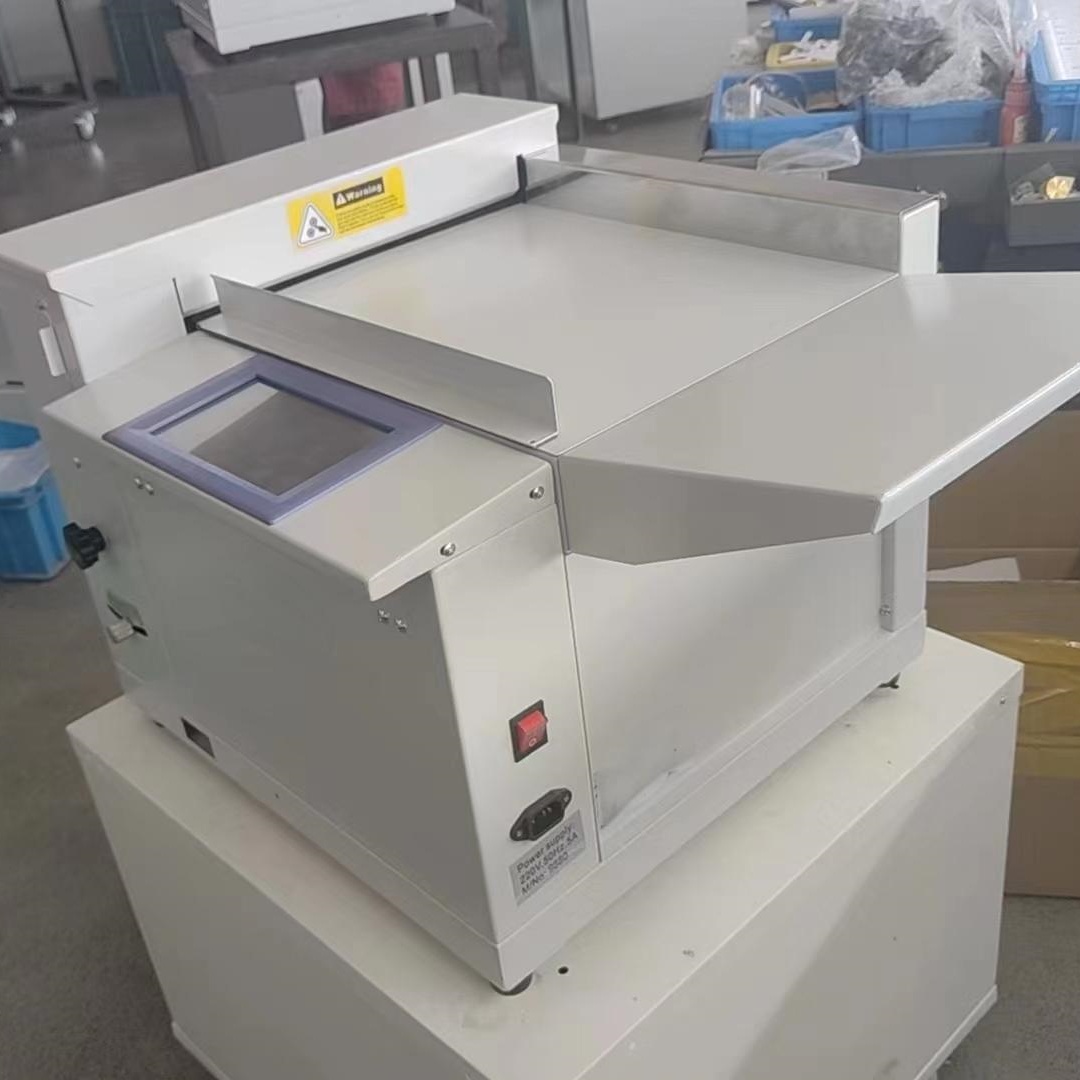

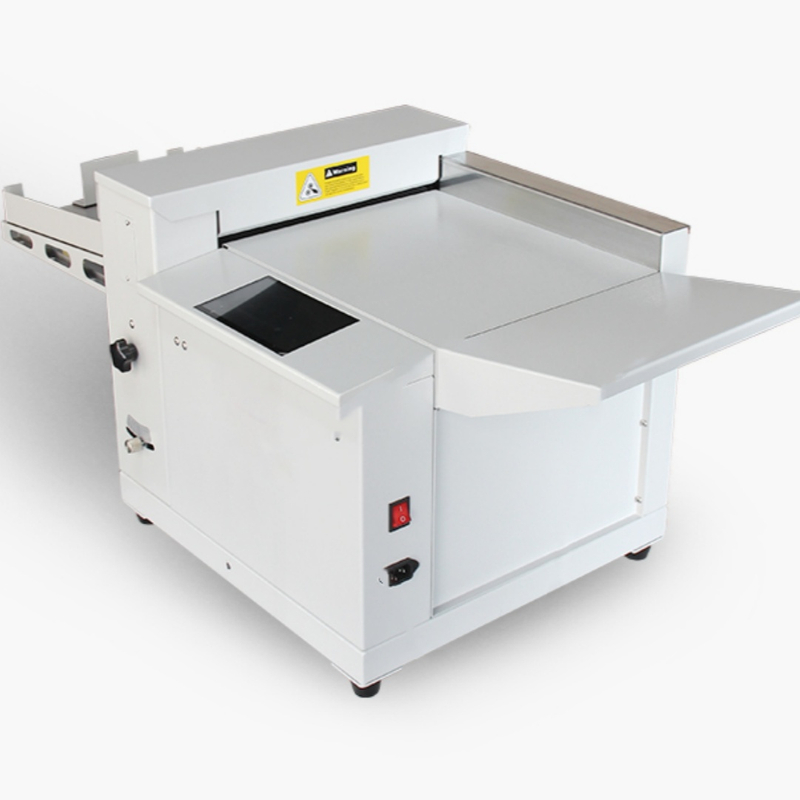

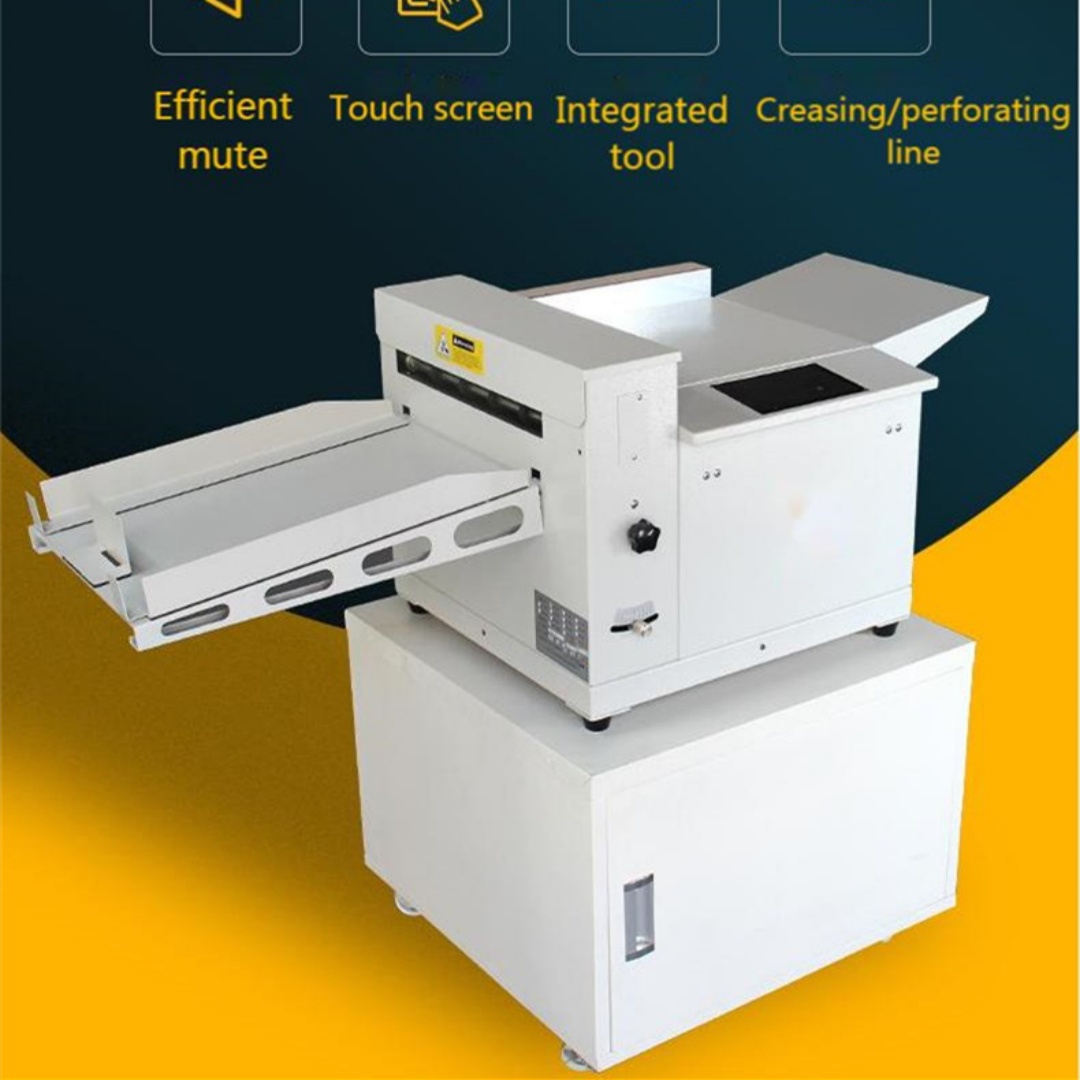

CP-350A Touch Screen Intelligent Digital Paper Creasing Machine A3 Size

This product is a manual paper feeding digital indentation machine, product design according to the industry for indentation processing of various situations, for the plate printing customized multifunctional processing equipment.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Main Features:


  • Can crease clear lines on many kinds of papers.

  • Not only coated art paper, tough paper, but also photocopy paper.  It can crease indents for paperback books, files, name cards, photos, invitations, etc.

  • It can crease 16 marks continuously at one time.

  • The distance between marks and the depth of marks is adjustable.

  • Rapid indentation skew adjustment, indentation depth free adjustment.

  • The indentation frequency per hour A4 the indentation one piece 3000 pieces/hour.

  • The professional design and manufacture of indentation die durable,

  • high-precision stepping motor and control system to ensure the precision and quality of indentation.

  • The operation panel USES a 7-inch color hd touch screen, small machine high configuration, simple and convenient to use.

  • Do not need to make a template, can complete the card indentation, but also for all kinds of dotted lines and part of the dotted line pressing, plastic or riding on the cover of the film indentation, but also applicable to a variety of other applications.

  • The machine can handle pull-up products from the largest size to 330×3000mm.



Product Parameters:


Model

CP-350A

Paper Feeding Method

Manual Feeding

Feeding Speed

35-50 sheets/minute (A4 Horizontal)

Paper Feeding Width

30-330mm (Width), 3000mm (Length)

Creasing Thickness Capacity

0-400g

Creasing Interval

0.8mm

Creasing Precision

0.3mm

Maximum Creasing Strips

Up to 16 strips

Creasing Tool Configuration

Single, Double, Dotted (Optional)

Power Supply

220V, 50Hz

Machine Weight

70kg

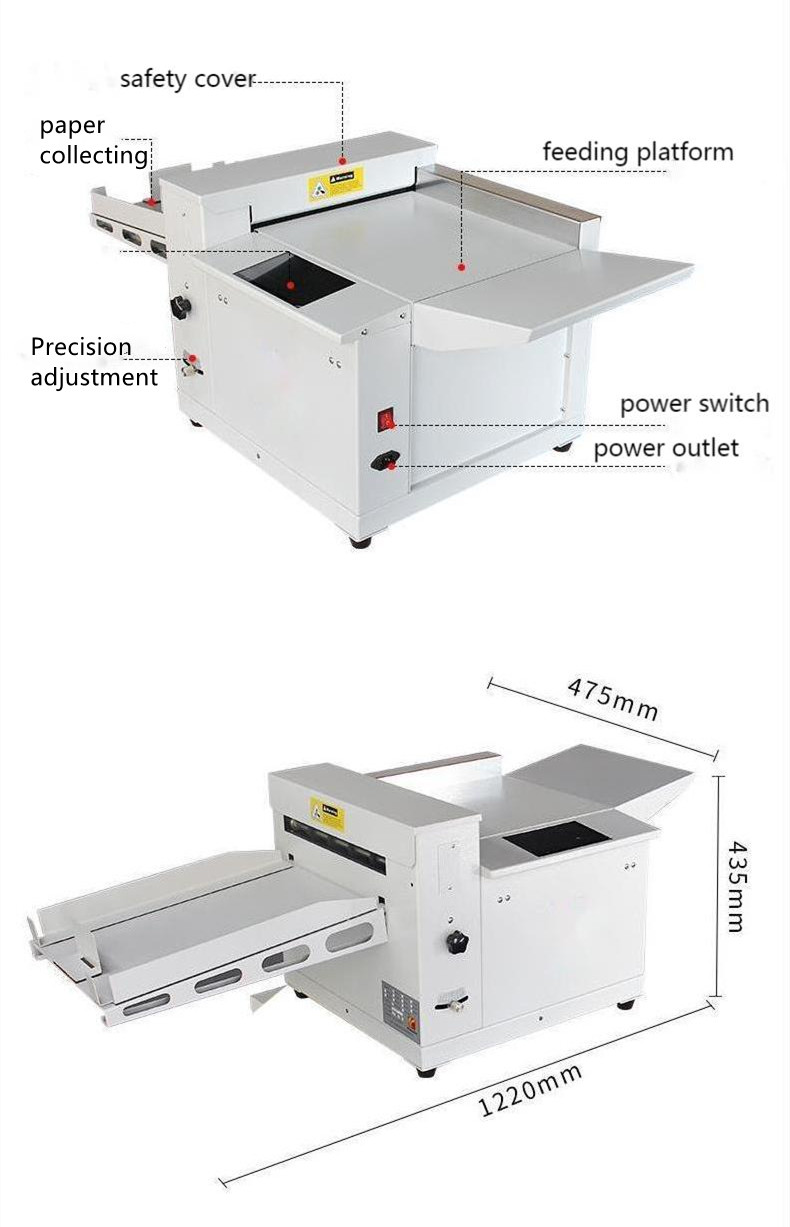

Machine Dimensions

64 × 55 × 49 cm


creasing machine
