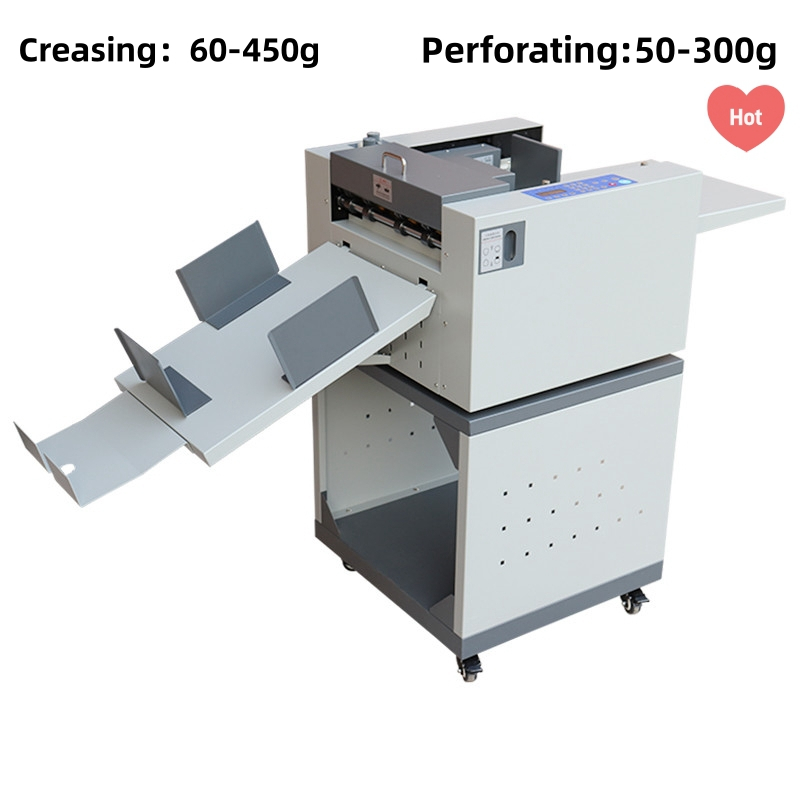

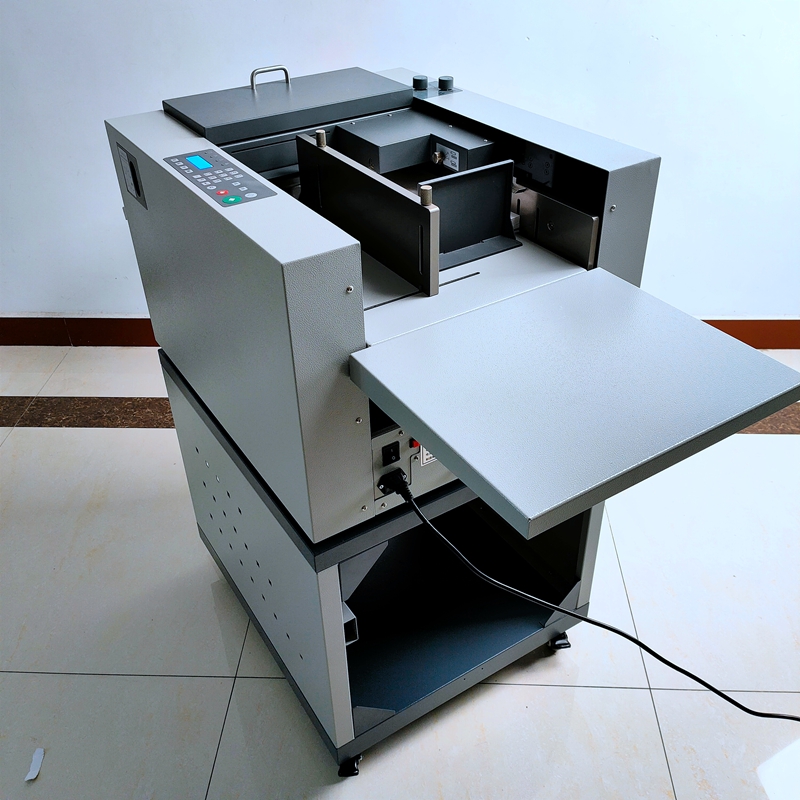

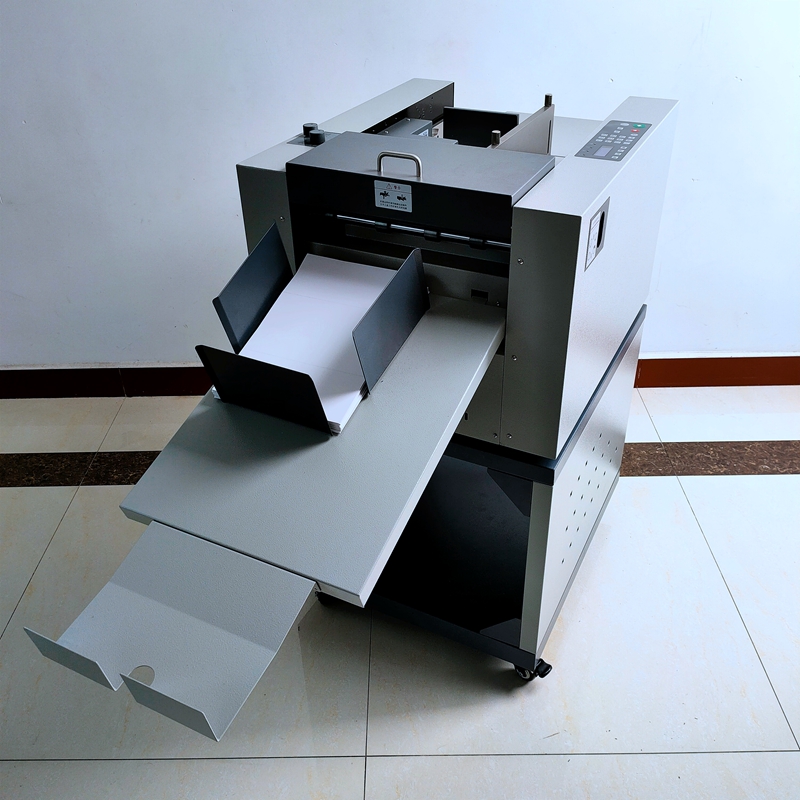

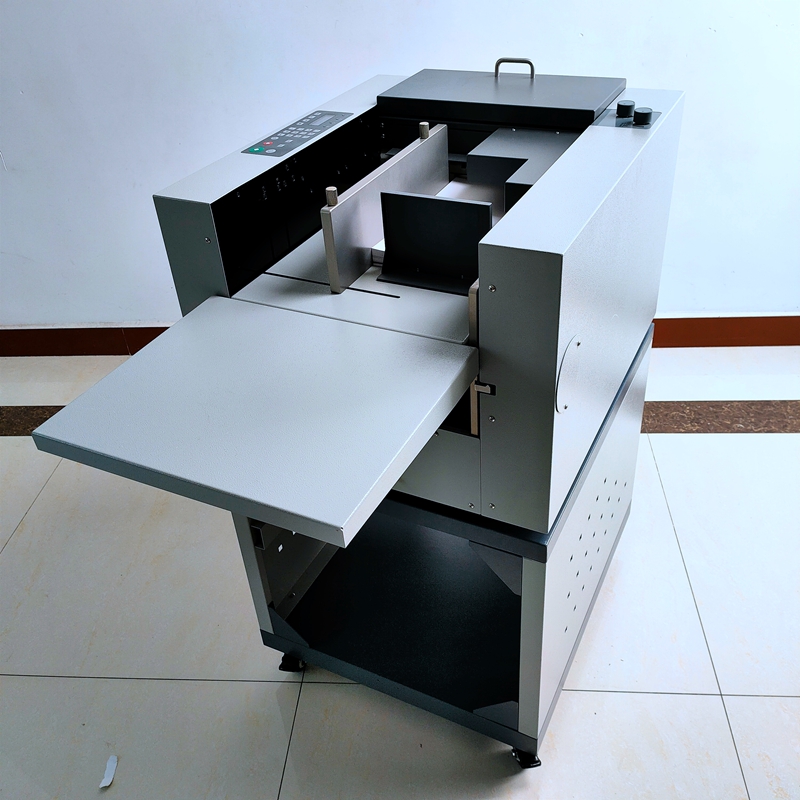

NC-350A Automatic Air Suction Feeding Digital Paper Creasing Machine

The AUTO CREASER NC350A is a product developed by us based on our technological superiority and production capacity. The processing position is digital control with creasing and performing two functions in one. The working width is 330mm,paper thickness 70-350g, max.Paper working length 650mm Max.32 creasing times on one paper. Especially with crimped paper anti-jamming patent technology, long paper processing very little skew, 300 grams of coated paper dotted line suppression (also can be coated paper) and other performance industry leading. Multi-functional design and a wide range of paper, more stable mechanical properties of the support,hope this machine will makes your work perfect and help you a lot.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Main Features:


  • Coated paper, offset paper, laminated paper, photo paper 60-400 gsm,perforating paper thickness 250g

  • Top suction feeding

  • 32 lines available in one crease

  • 3000 sheets per hour creasing speed

  • 80mm paper feed tray capacity

  • High precision crease position +/-0.2mm

  • Creasing depth and skew adjustment



Product Parameters:


Model

NC-350A

Infeed size (mm)

148x130mm~330x660

Paper Type

Chrome, laminated, UV coated

Paper weight(gsm)

60-400

Word accuracy (mm)

+/- 0. 2

Feed capacity (mm)

80

Output capacity(mm)

80

Feeding type

Top suction feeding

Job memory

30

Power supply

220V/110V, 50-60HZ

Power (W)

200

Weight(Kg)

66

Package dimensions(mm)

760x680x530

Machine dimensions (mm)

1640x560x400

Option

Stand

creasing machine automatic
