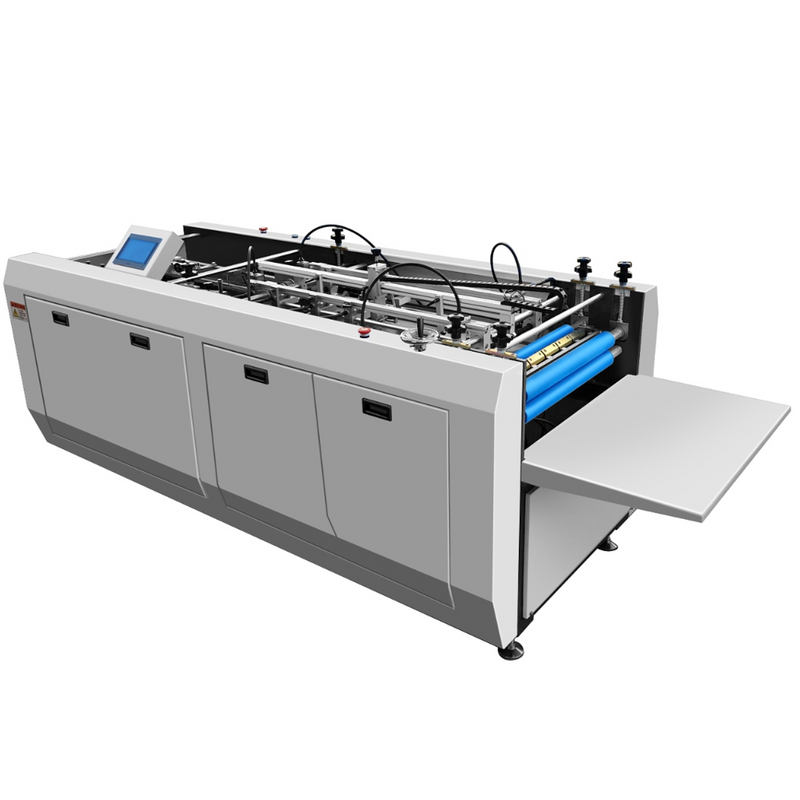

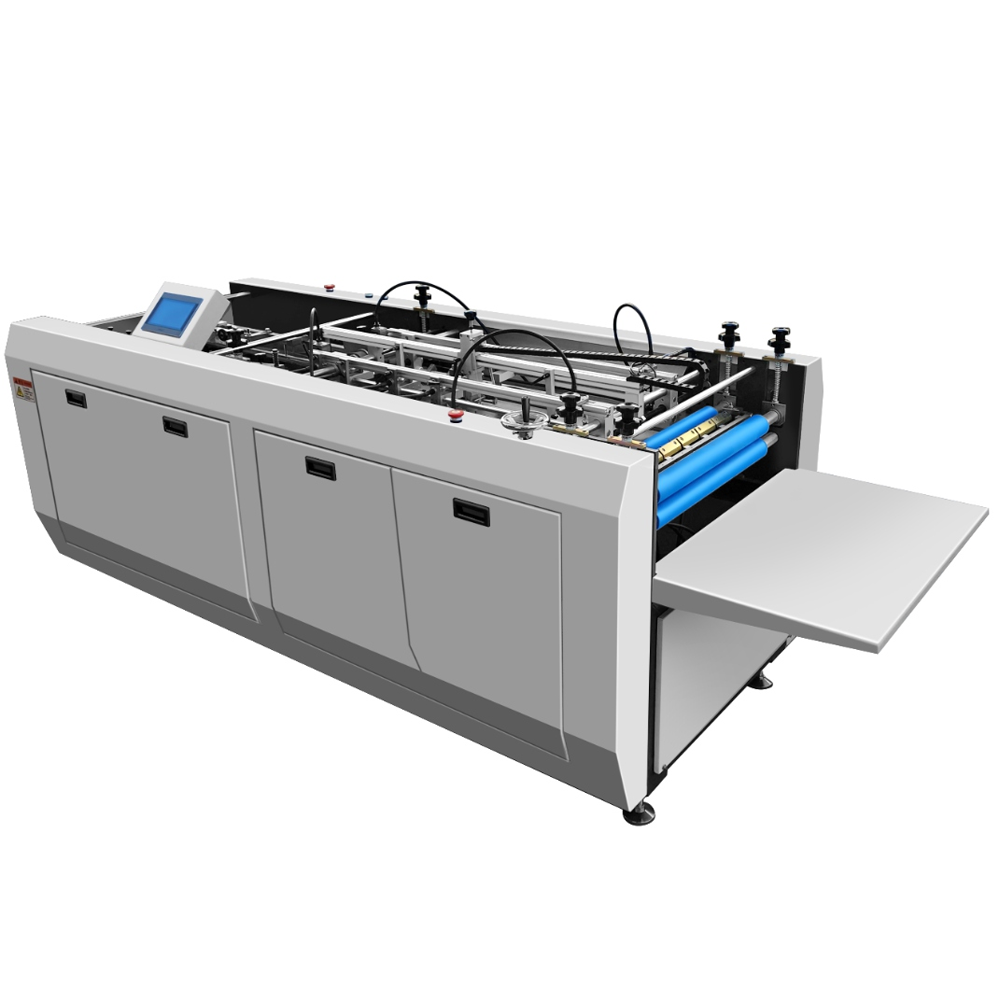

HE-900BF\1200BF\1500BFHardcover Edges Forming Machine

DG900BF\1200BF\1500BF hardcover forming machine is mainly used for the production of bookcase and hardcover of various gift boxes, such as hard file-folder, bookcase, mooncake box, flip box, wine box, cigarette box, jewelry box, folding box etc.

This machine adopts programming control system and cam structure to drive the folding parts and positioning parts which works steadily and stronger folding.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HE-900BF\1200BF\1500BF

DG900BF\1200BF\1500BF hardcover forming machine is mainly used for the production of bookcase and hardcover of various gift boxes, such as hard file-folder, bookcase, mooncake box, flip box, wine box, cigarette box, jewelry box, folding box etc.

This machine adopts programming control system and cam structure to drive the folding parts and positioning parts which works steadily and stronger folding.

型号Model

DG-900BF

DG-1200BF



皮壳尺寸

Hardcover Size

 长度L200-900mm

 长度L200-1200mm



宽度W80-450mm

宽度W80-650mm



厚度T1-4mm

厚度T 1-4mm



生产速度

Output speed

 20-30pcs/min

 20-30pcs/min



机器电压/功率

Machine Voltage/Power

AC220V/50Hz/2.5kw

 AC220V/50Hz/2.5kw



必要气压

Air Pressure

0.6-0.8MPa

0.6-0.8MPa



机器尺寸

Machine Dime nsion

L2500mmxW1450mm*H1100mm  L2500mmxW1450mm*H1100mm  L2500mmxW1450mm*H1100mm  L2500mmxW1450mm*H1100mm  L2500mmxW1450mm*H1100mm L1400mmxW1100mmxH2500mm  L1400mmxW1100mmxH2500mm

L2500mmxW1650mmxH1100mm



机器重量

Machine Weight

800Kg

900Kg

  • Hardcover Book Manufacturing

  • Case Bound Book Production

  • Notebook Cover Forming

  • Photo Album Cover Production

  • Luxury Gift Box Cover Forming

  • Bible & Dictionary Binding

  • Children’s Book Binding

  • Catalog & Magazine Hardcover Production

Why Choose This Machine

  • High Precision Edge Forming for Premium Hardcover Quality

  • Stable Performance for Continuous Production

  • Compatible with Various Hardcover Sizes and Materials

  • Improves Production Efficiency and Reduces Labor Costs

  • Smooth and Neat Edge Folding Effect

  • Durable Machine Structure for Long-term Industrial Use

  • Easy Operation and Simple Adjustment

  • Suitable for Books, Albums, Gift Boxes, and Case Making

  • Supports High-volume Hardcover Manufacturing





Packing & Shipping

Standard export wooden case packaging.



Options for sea, air, or express freight delivery.



Contact us for dimensional and weight details.







After-Sales & Support

User manual and operation guide included.



Warranty and spare parts support available.



Online technical support with factory technicians.
