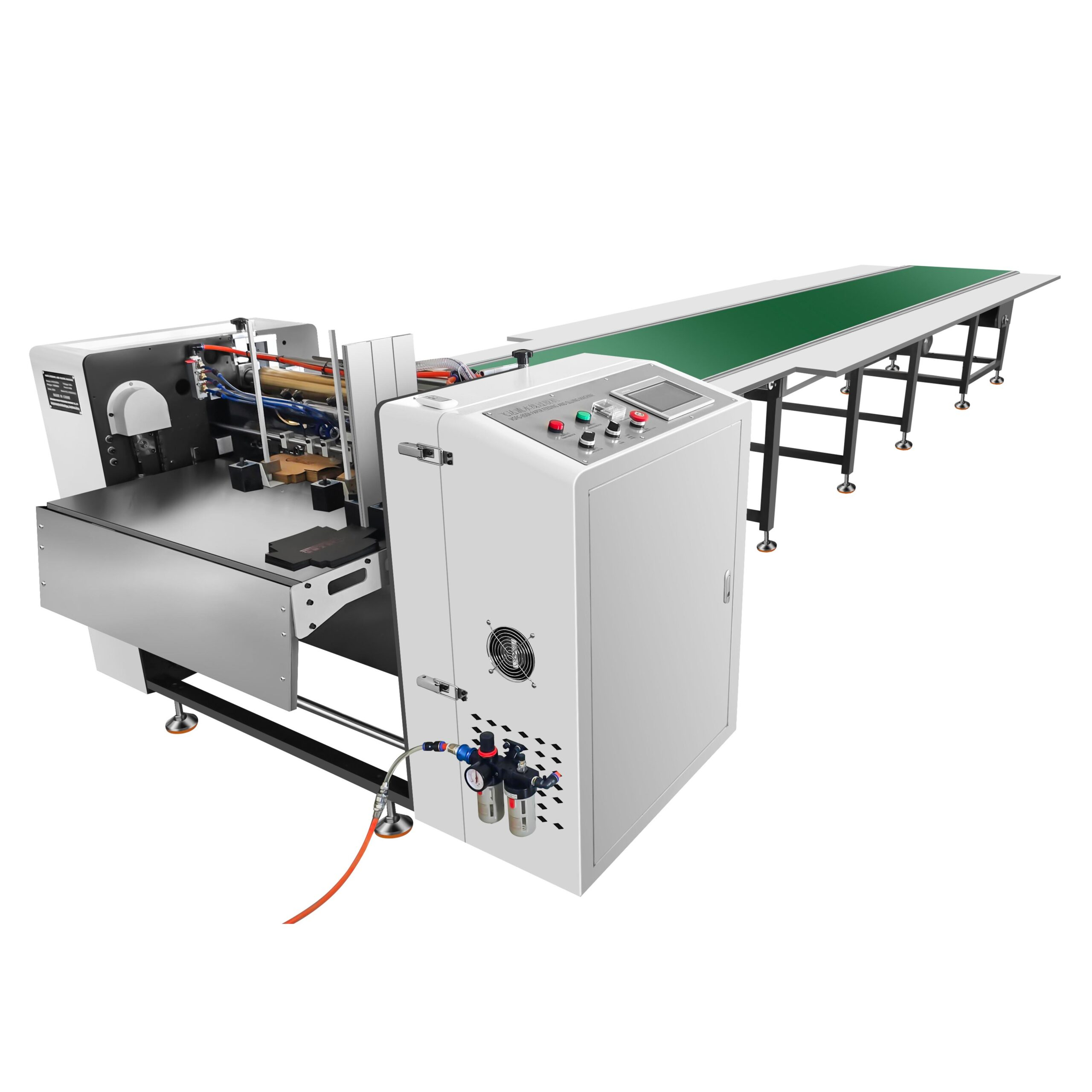

JS-850D Automatic Paper Sheet Feeding and Gluing Machine

This machine is wide used in gluing of various gift boxes and hardcovers making, especially for Box or hardcover sheet-cover, it is with the structures of automatic feeding, automatic gluing system, blowing part, easy to operate and running steadily,
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • JS-850D

This machine is wide used in gluing of various gift boxes and hardcovers making, especially for Box or hardcover sheet-cover, it is with the structures of automatic feeding, automatic gluing system, blowing part, easy to operate and running steadily

产品参数/PARAETERS

型号Model

DG-850C

DG-650C



纸张尺寸

Paper Size

长度L50-1050mm

长度L50-1050mm

宽度W30-780mm

宽度W30-600mm

厚度T80-350gsm

厚度T80-350gsm

生产速度

Output Speed

7-40pcs/min

7-40pcs/min

机器电压/功率

Voltage/Power

AC380V/50Hz/9kw

AC380V/50Hz/9kw

必要气压

Air Pressure

0.6-0.8MPa

0.6-0.8MPa

机器尺寸

Machine Dimension

L7200mmxW1850mmxH1200mm

L7200mmxW1850mmxH1200mm

机器重量

Machine Weight

1350KG

1150KG

Why Choose This Machine

  • Automatic paper feeding and gluing for higher efficiency

  • Stable paper delivery with precise gluing performance

  • Reduces manual labor and production cost

  • Suitable for rigid box and luxury packaging production

  • Easy operation with reliable control system

  • Uniform gluing improves product quality and consistency

  • Durable industrial structure for long-term use

  • Supports efficient and continuous production workflow

  • Ideal solution for packaging manufacturers and printing factories



 Packing & Shipping

Standard export wooden case packaging.



Options for sea, air, or express freight delivery.



Contact us for dimensional and weight details.





 After-Sales & Support

User manual and operation guide included.



Warranty and spare parts support available.



Online technical support with factory technicians.
