SR410|SR412 Automatic Stitching System for High-Volume Booklet Production | One-step of Collating Stitching And Folding 3-side Trimming into Booklets | Modular Stitching Line

SR410|SR412 Automatic Stitching System for High-Volume Booklet Production | One-step of Collating Stitching And Folding 3-side Trimming into Booklets | Modular Stitching Line

Built for Professional Print & Bindery Operations

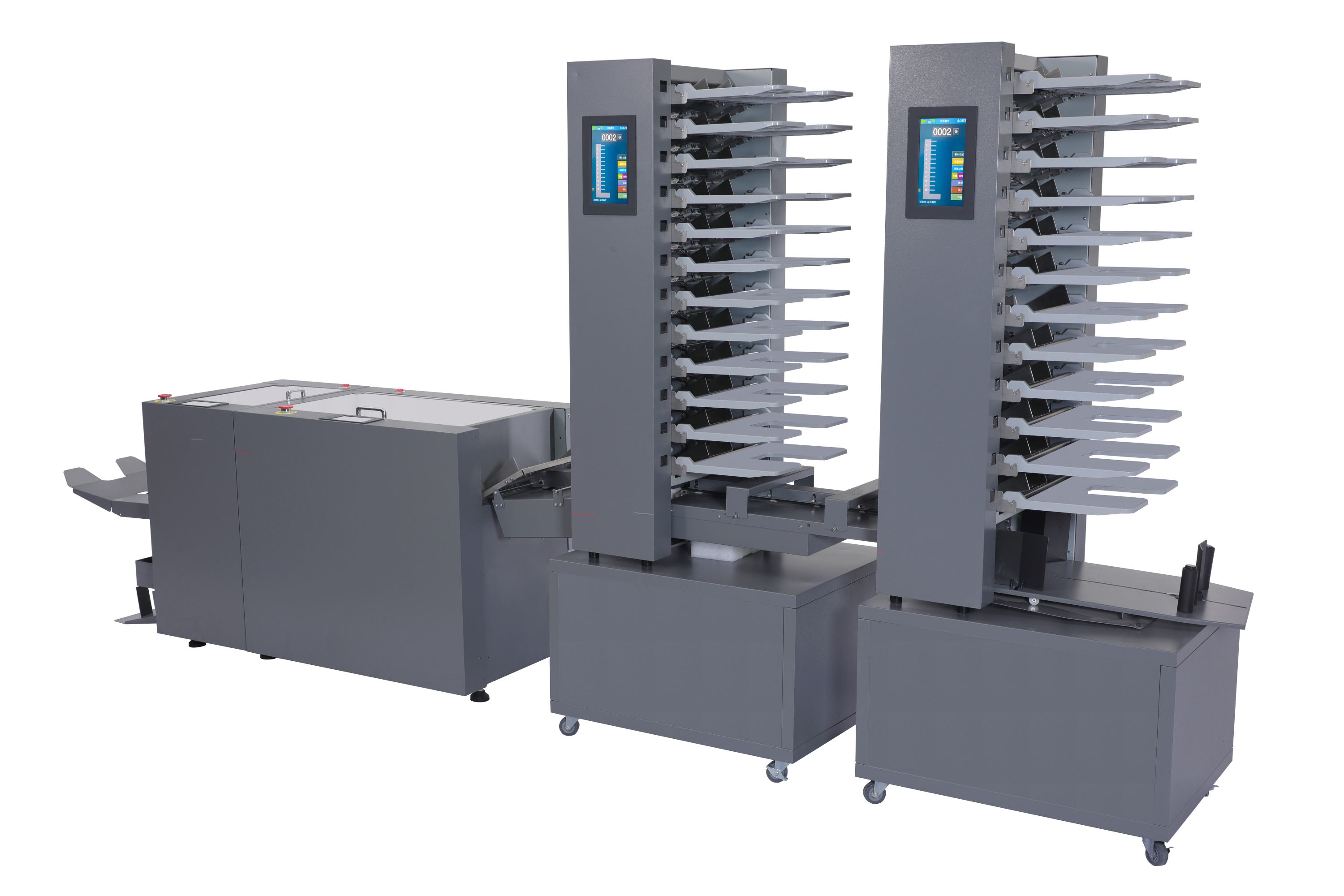

The SR410 / SR412+DFS350+DR35+TR33 Automatic Stitching System is a modular, high-performance post-press solution designed for commercial printing houses and industrial bindery operations.
This system integrates automatic feeding, precise wire stitching, and continuous output, enabling print professionals to achieve higher productivity, lower labor dependency, and consistent binding quality in large-scale booklet and brochure production.

Quantity:
Availability:





Inquire Add to Basket

Model:
SR410 / SR412+DFS380+DR35+TR33
Brand:
befitter
Code:
8440109000

SR410 SR412 Paper Collator Machine Automatic Stitching System

1.One-step of collating, stitching and folding, 3-side trimming into booklets.

2. Wide paper size range: max 330 × 490mm, mini 150 ×120mm。

3. Fast production speed：3500 booklets/ h.

4. Friendly touch screen operation panel, simple operation.

5. Size change over simply by inputting paper size on the screen.

6. All machines’ signals are connected，machine stops if any other machine has error.

7. Not waste paper, booklet maker automatically eject wrong collated sheets.

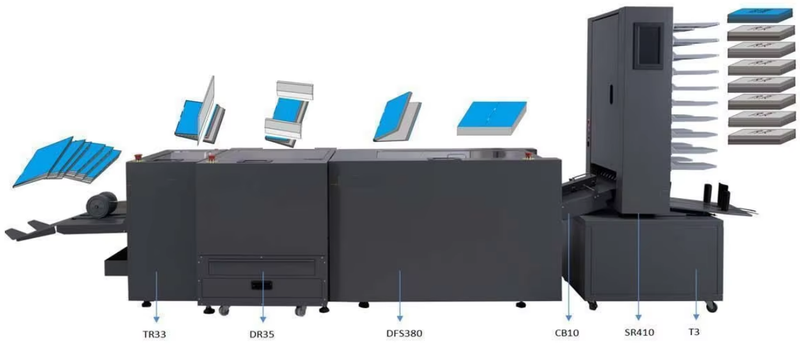

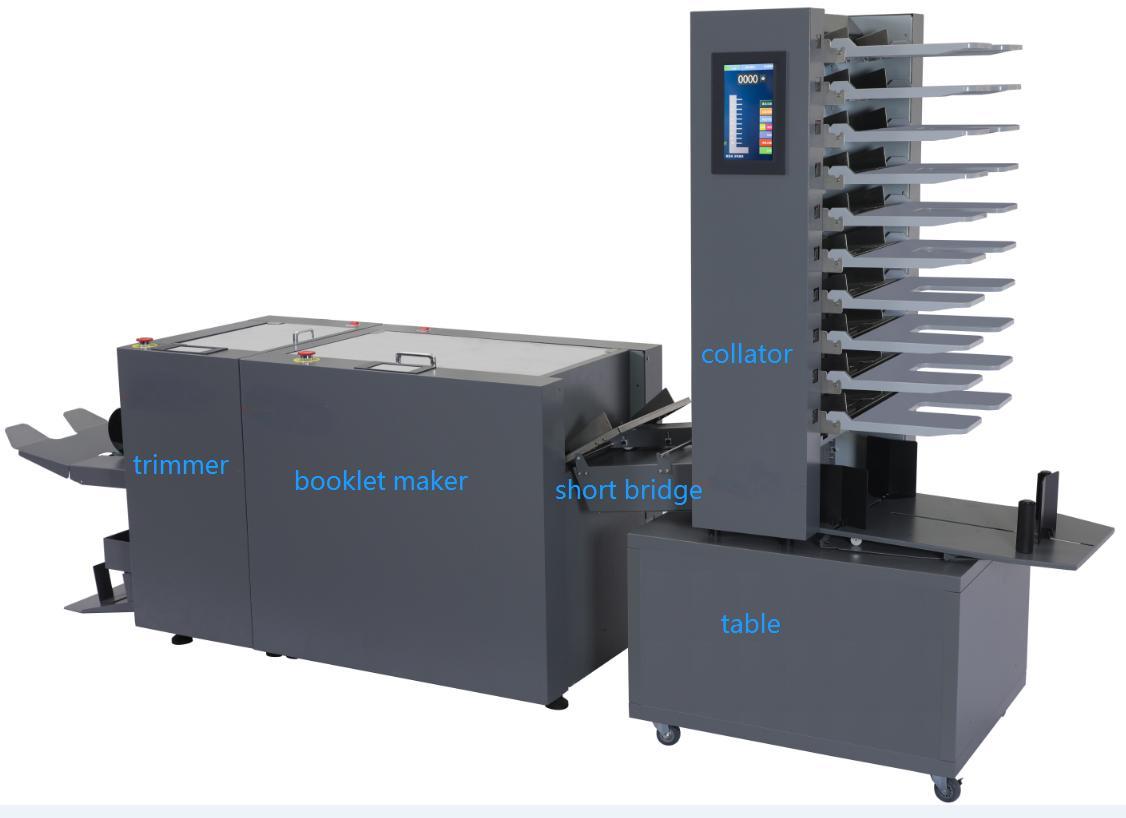

Friction Collating, Saddle Stitching, Trimming System

1.SR410/SR412 10/12-bin collator

2. DFS380 Wire Stitchine Machine

3.DR35 top-bottom trimmer

4.TR33 front-edge trimmer

5.T3 table

6.CB10 short bridge

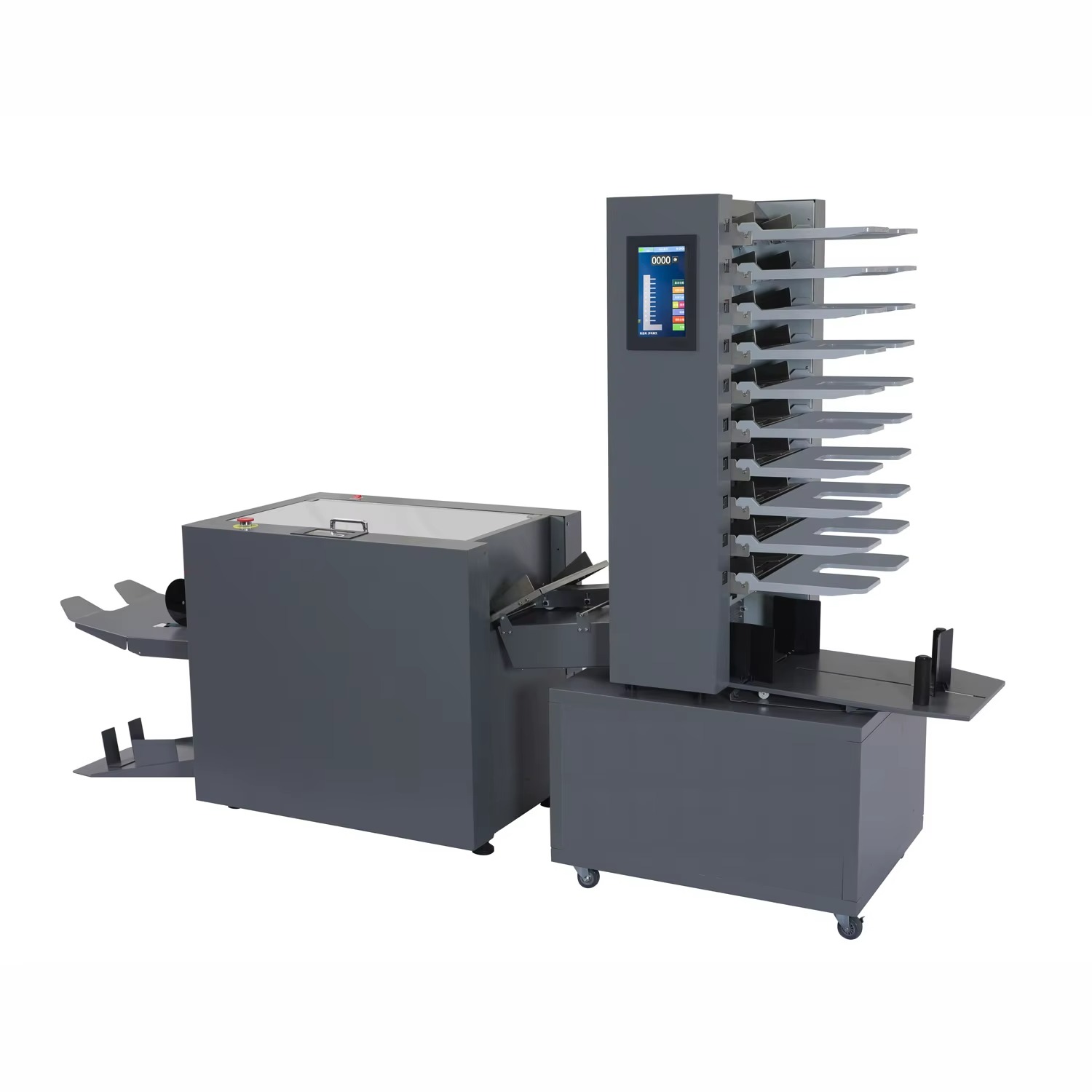

SR410 SR412 Automatic Stitching System for Booklet Production

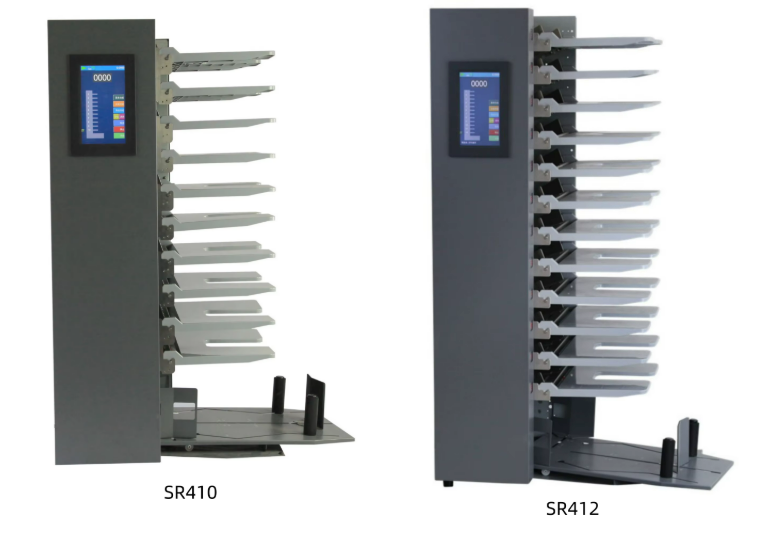

Specification-SR410/SR412 Paper Collator Machine 10/12-bin collator

Model	SR410/SR412
No. of bins	10 bins / 12 bins
Paper Size (L×W）	max 490 × 330 mm
Paper Size (L×W）	mini 120 ×120 mm
Paper Thickness	45-150 gsm
Paper Type	copy paper, NCR paper, coated paper (only for bin No.1 and bin No.10)
Speed	4500 sets/h(A4)
Bin Volume	28 mm (300 sheets 70 gsm)
Stacking Mode	criss cross, straight
Stacking Volume	65 mm (650 sheets, 70 gsm)
Counter	count up, count down
Error Display	Double fee, jam, feed failure, no paper, signal error, stacker full, downstream unit error, back door open.
Power Consumption	110V~220V, 50Hz/60Hz, 150W

Specification-DFS380 Wire Stitchine Machine

Model	DFS380
Stitching Heads Type	wire stitching head
Stitching Mode	saddle stitching，side stitching，fold only
No. of Stitching Heads	0-2
Paper Thickness	60-300 gsm
Paper Size of Saddle Stitching	L 150 to 490 mm
Paper Size of Saddle Stitching	W 120 to 330 mm
Paper Size of Side Stitfching	L 80 to 250 mm
Paper Size of Side Stitfching	W 120 to 330 mm
Stitching Thickness of Saddle Stitching / folding Thickness	25 sheets(2.5mm)
Side Stitching Thickness	China-made stitching head: 40 sheets (4mm)
Speed	3500 sets/h (A4 10 sheets 80g)
Distance between 2 Stitches	adjustable between 40-156 mm
Adjust stitches distance method	1 step: Rotating the knob on the wall.
Power Consumption	110V~220V, 50Hz/60Hz, 150W

Specification-DR35 Top-Bottom Trimmer

Model	DR35
Paper Thickness	60-300gsm
Finished Booklet Width	120 to 320 mm
	120 to 320 mm
Trimming Length	1-35mm
Trimming Thickness	40 sheets(70 gsm)
speed	2600 booklets/h
Machine Size	650L720W850H mm
Power Consumption	110V-220V,50Hz/60Hz,400W

Specification-TR33 Front-Edge Trimmer

Model	TR33
Paper Thickness	60-300 gsm
Finished Booklet Length	73 to 230 mm
Knife	Two knives(upper/lower)
Trimming Length	1-20 mm
Trimming Thickness	50 sheets(70 gsm)
speed	3800 booklets/h
Machine Size	380×580×850 mm
Power Consumption	110V~220V,50Hz/60Hz,150W
