• Print Shops & Digital Printing — trimming printed sheets to finished size, where the programmable backgauge repeats the same cut across a run without re-measuring.

• Offset Printing & Publishing — cutting paper stock and printed signatures down to size, with 80 mm of cutting height handling tall lifts in one pass.

• Packaging & Box Making — cutting cardboard, grey board and card blanks, and the slanted-blade design is specifically easier on thick, dense board.

• Book Binding & Binderies — trimming book blocks, covers and endpapers before or after binding, on stacks up to 80 mm thick.

• Cards, Labels & Tags — cutting business cards, tags, postcards and PVC/ID cards to size, with ±0.2 mm accuracy holding size across the batch.

• Photo & Display Finishing — trimming photos and display print to finished size, with the ball table making large sheets easy to slide into position.

• In-House Print Rooms & Copy Centers — the cutting step that follows the digital press, run by the same operator.

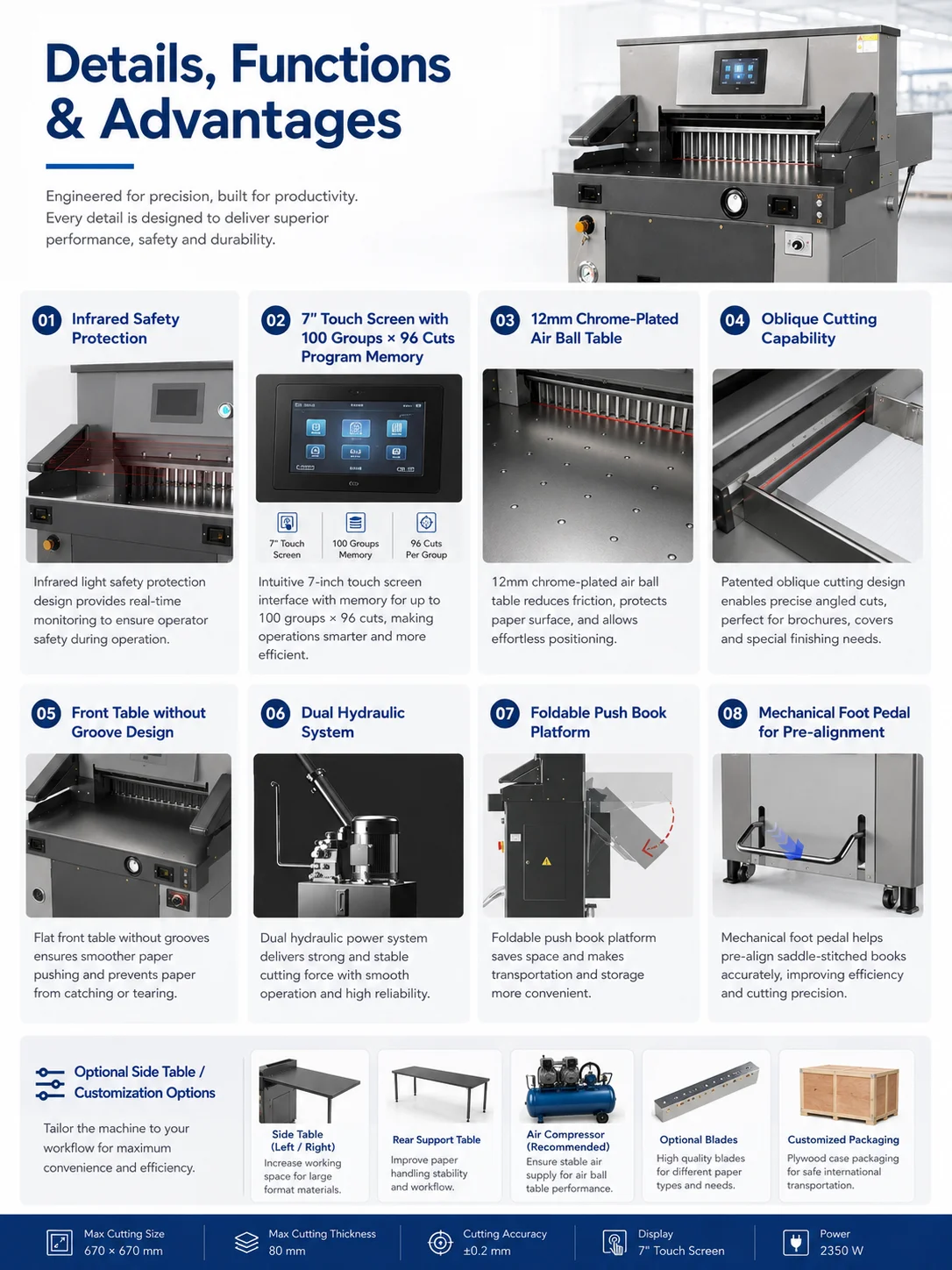

Why Choose This Machine

Dual hydraulic — hydraulic clamp and hydraulic knife, not a mechanical clamp — so the lift is held with even pressure and thick stacks don't shift or fan out mid-cut.

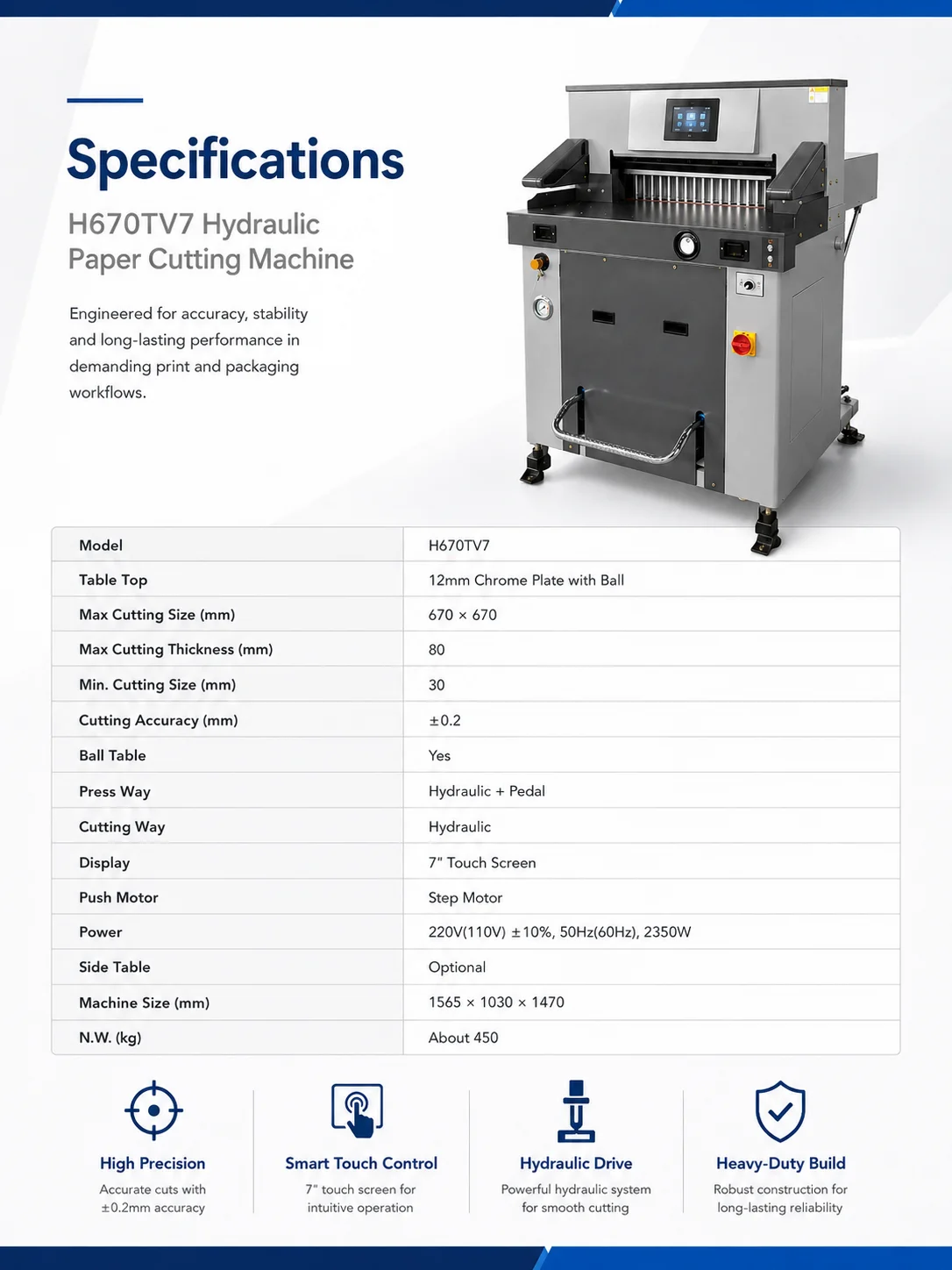

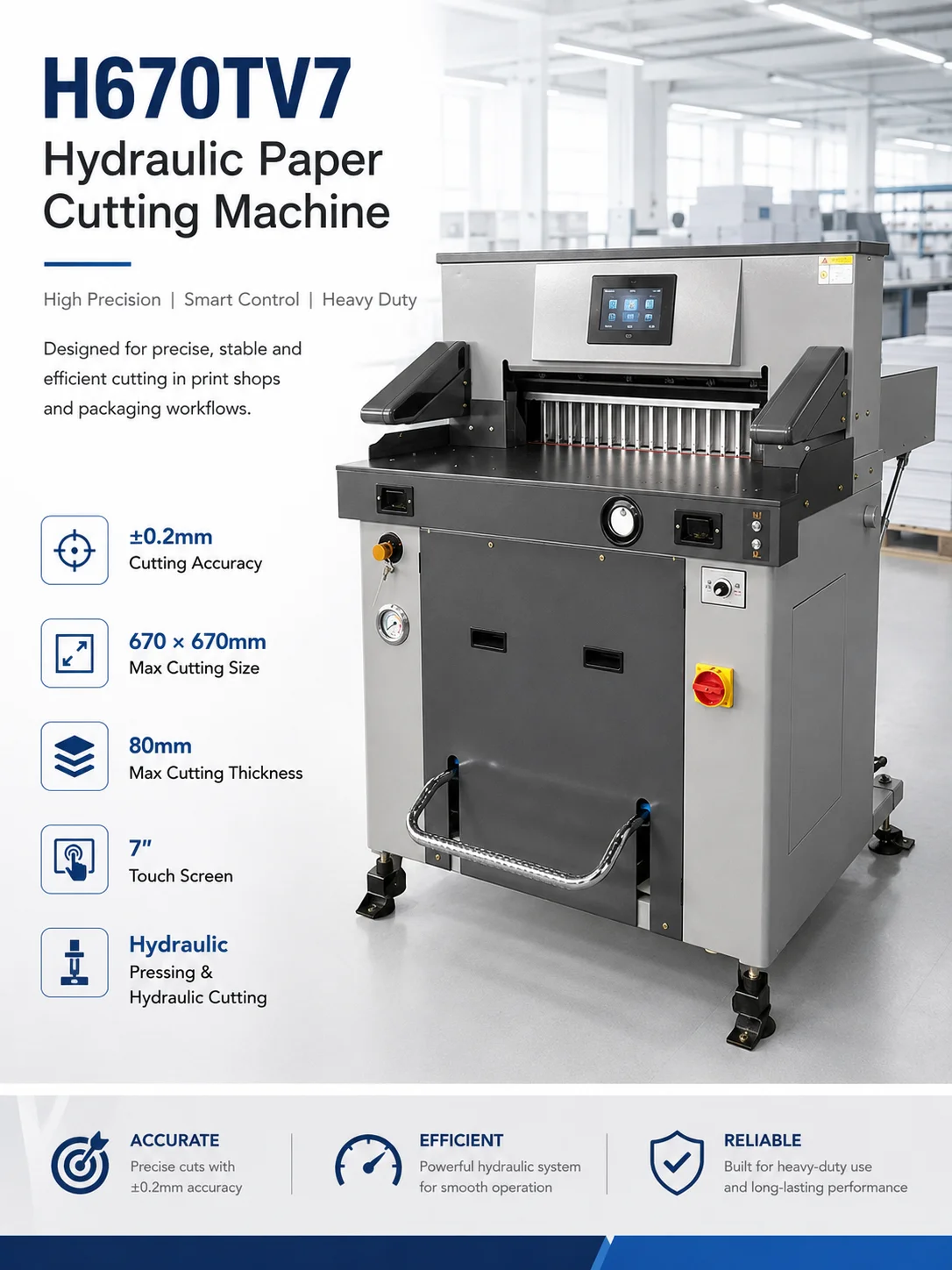

80 mm cutting thickness with a 670 × 670 mm cutting size — takes tall lifts of stock and full-width sheets in one pass, which is the capacity range this class of cutter is bought for.

±0.2 mm cutting accuracy — the top-suspended ball screw and groove-free push platform hold the backgauge steady, so size stays true across a long run.

Programmable with 100 groups × 96 cuts — store repeat jobs and call them back instead of re-setting the backgauge for every cut; three modes (manual, equal division, programmable) cover the everyday work.

7" touch screen with error compensation — the machine corrects cumulative size error from the panel, which is what keeps the hundredth cut as accurate as the first.

Infrared safety curtain plus air switch, emergency stop and rear guard — the machine halts the instant anything crosses the light curtain, and the blade can be adjusted and replaced outside the machine.

Patented slanted-blade cutting design — the blade enters the stock at an angle, cutting thick and dense paper more easily and with less load on the machine.

Ball table on a 12 mm chrome-plated surface — heavy lifts slide into position with a push instead of a lift, which cuts operator fatigue on big sheets.

Electronic handwheel for backgauge positioning with variable speed — creep up on a position precisely, or spin it fast to get there, without touching the screen.

Foot pedal control — the clamp can be operated by foot, leaving both hands free to hold and align the sheet.

Folded push platform and external blade adjustment — narrower footprint for shipping and simpler maintenance on site.

8. Packing & Shipping

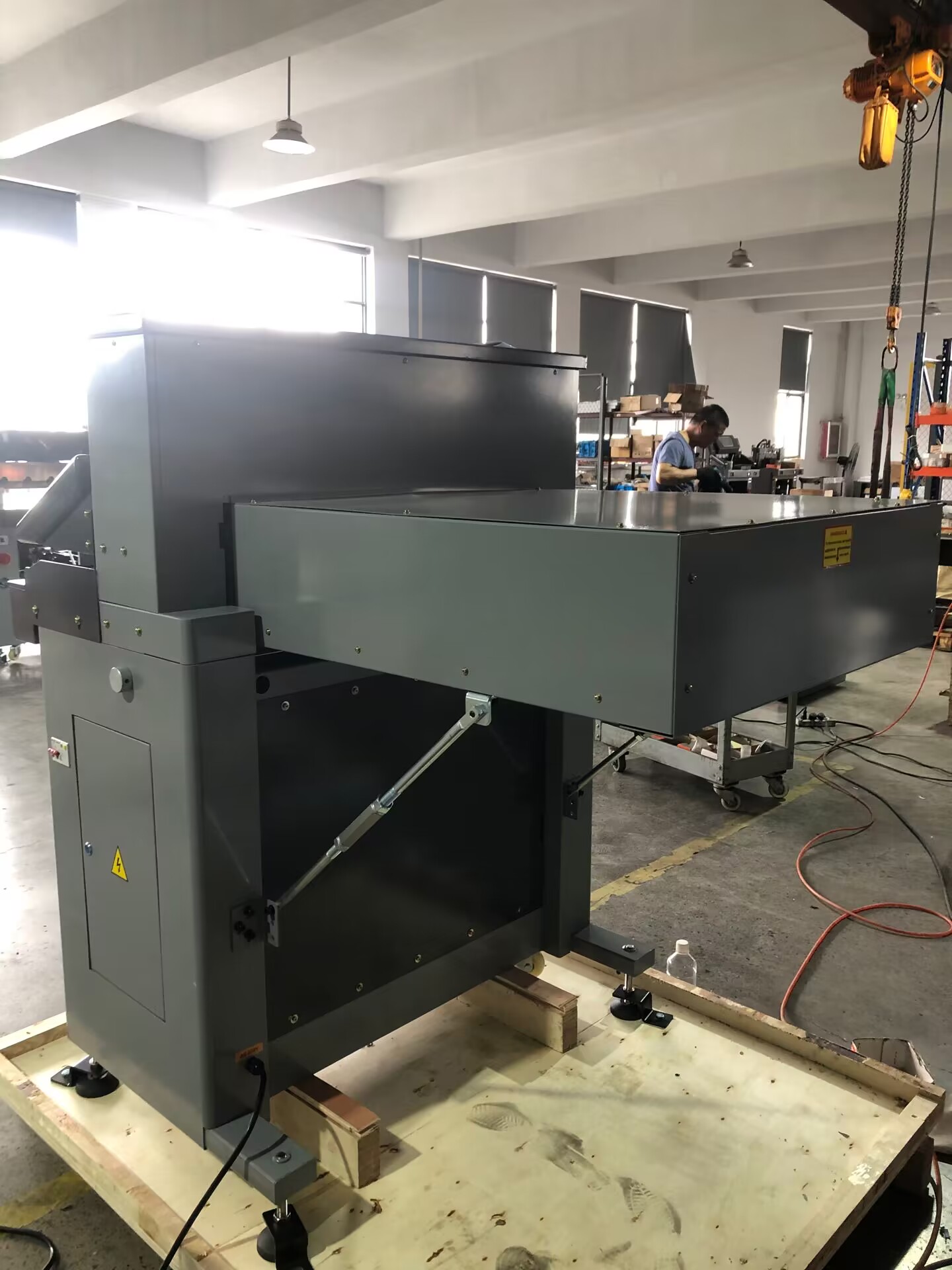

Standard export wooden case packaging, one unit per case.

Sea, air or express freight available to your port or door.

Machine size 1565 × 1030 × 1470 mm, net weight about 450 kg. Crate size 161 × 118 × 170 cm, gross weight 460 kg. Contact us for loading quantities.

Side table is optional — tell us the working layout and we'll quote it with the machine.

9. After-Sales & Support

Every unit is tested before shipment, with a machinery test report and outgoing inspection video provided.

12-month warranty with spare parts supply.

Online technical support directly from factory technicians, plus user manual and operation guide.
