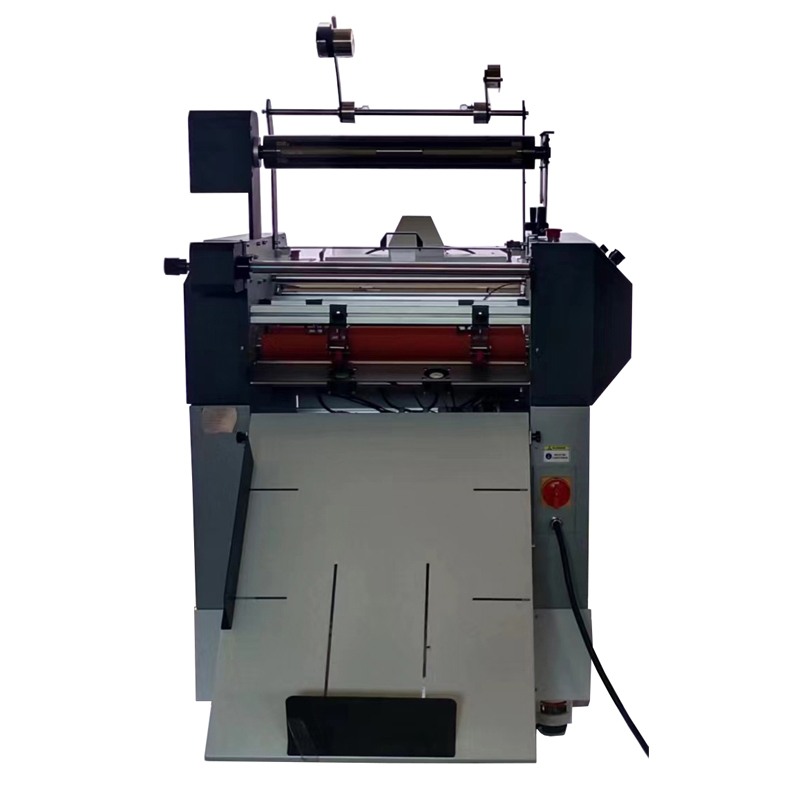

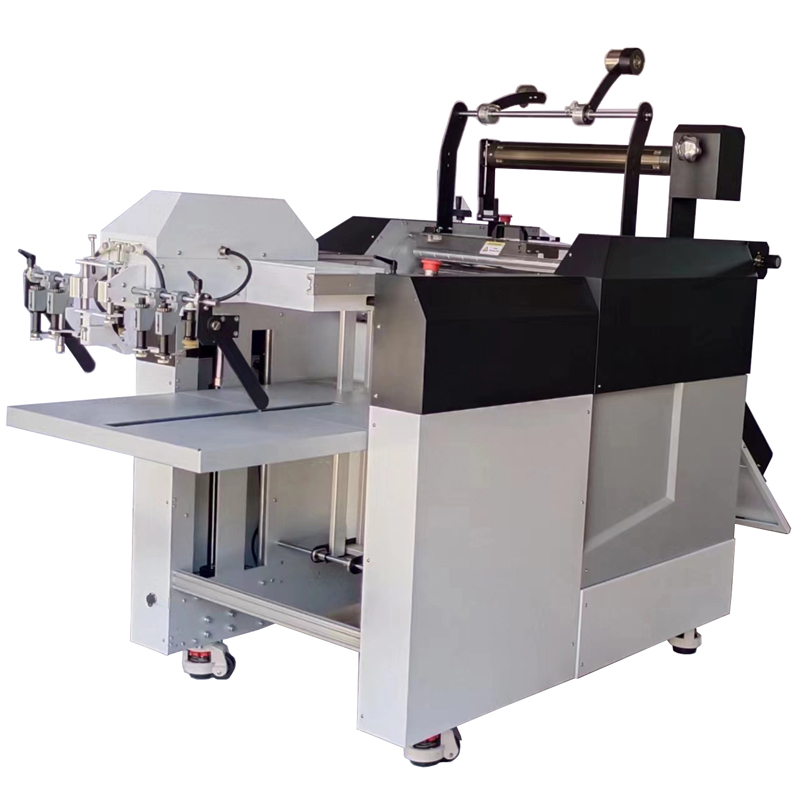

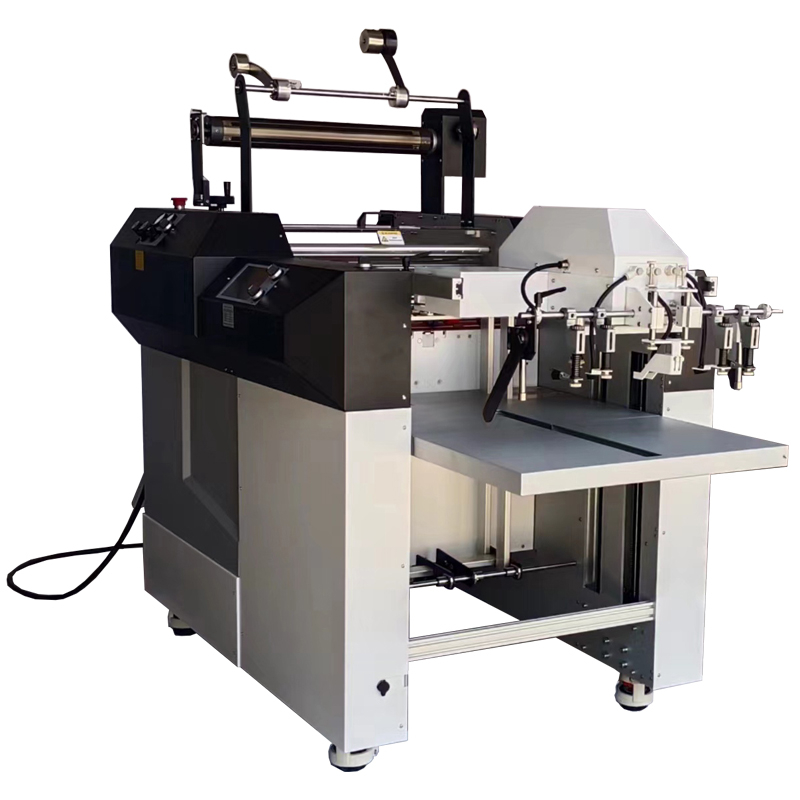

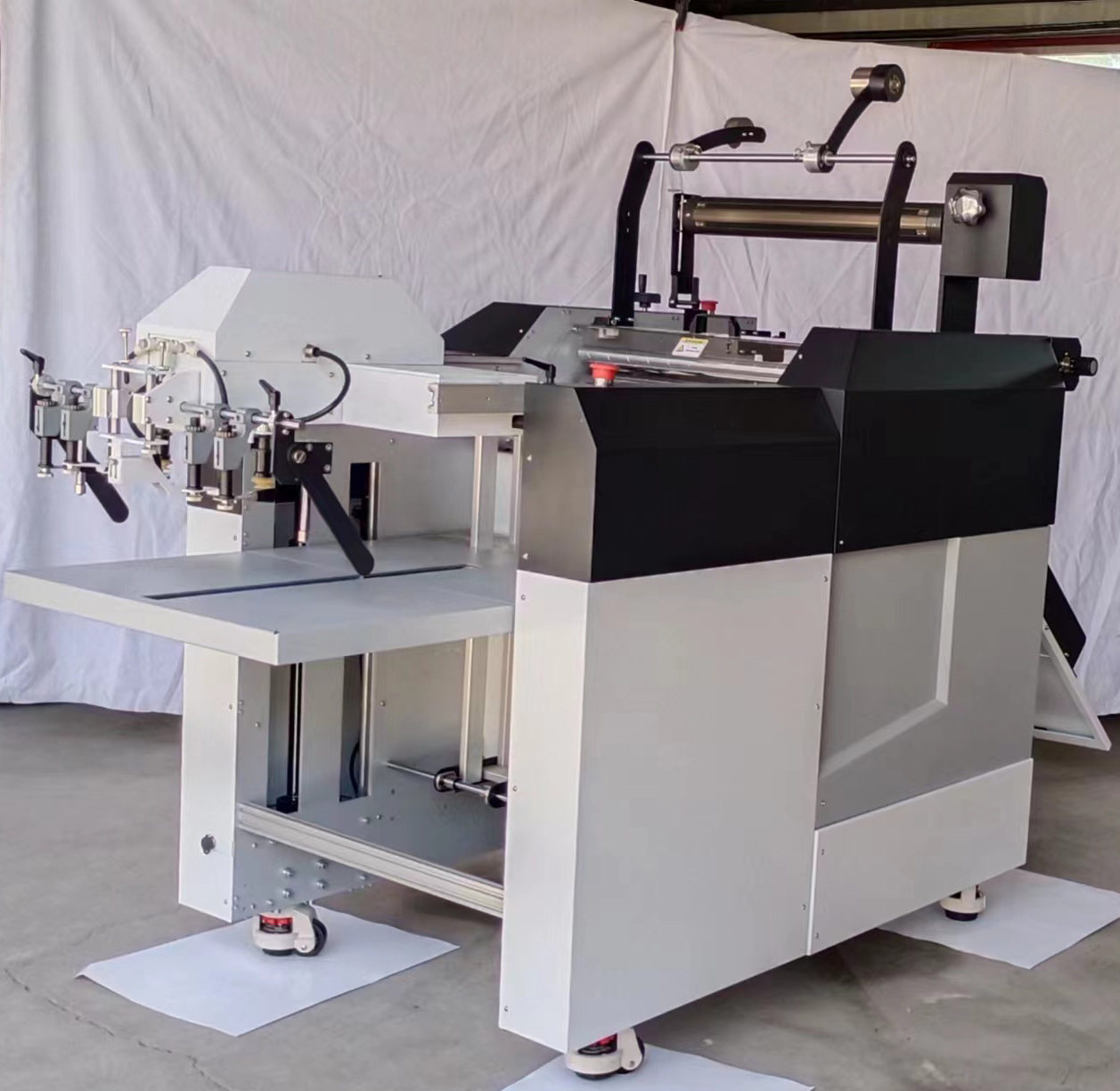

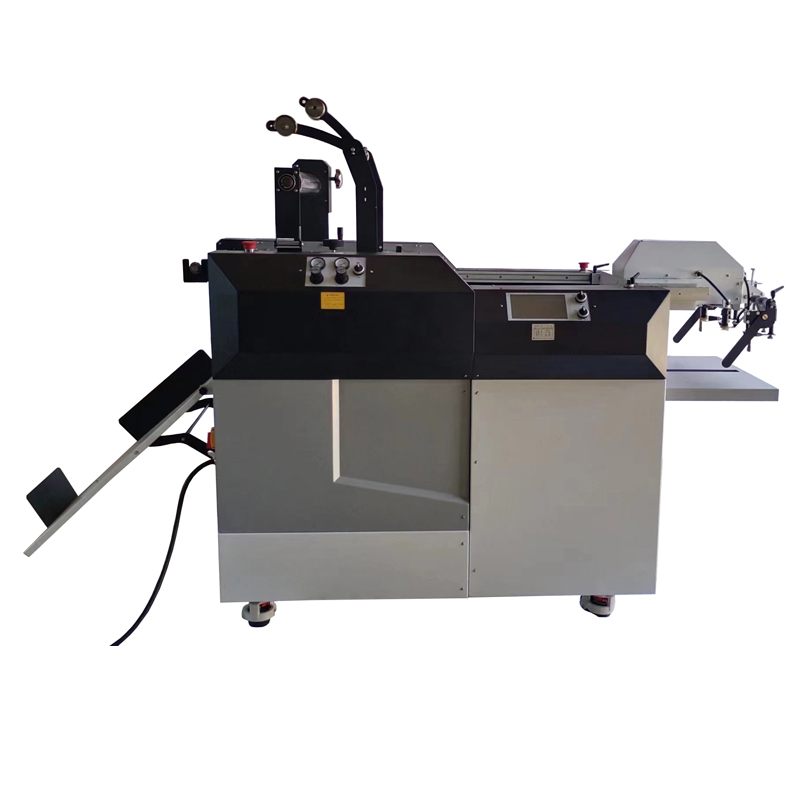

FA-540 Automatic Pneumatic Paper Feeding Hot Laminating Machine

FA-540 Automatic Pneumatic Paper Feeding Hot Laminating Machine

FA-540 fast laminator laminates printed matter, spray-drawing products, packing boxes, books and the like, allowing them to resist water, stain and damage, and providing durability. Featuring compact size, fast and continuous lamination, automatic parting cut, easy operation, economics and utility, this unit is ideal for the post production of various types of printed and packing products.

Quantity:
Availability:





Inquire Add to Basket

Main Features:

Mirror chrome plating roller, oil heating;
Touch screen human-computer interaction display system;
Frequency control system;
Electric hydraulic pressure system, film pressure adjustable;
Full automatic paper feeding control system, can overlap;
Pneumatic automatic cutting system;
Curling-preventing device, preventing laminated paper from curling;
Film slitting device;
Air inflation shaft material roller device；
Bronzing winding device；
Upper point thread cutter device；
Automatic stop function for paper shortage.

preventing laminated paper from curling automatic carboard lamination machine full automatic lamination machine automatic thermal laminating machine automatic feed laminating machine full automat laminating machine suction automatic hot laminating machine lamination machine roll automatic fully automatic thermal laminator machine automatic lamination roll cutting machine

Related Products

DH-13 Fully Automatic Intelligent Photo Paper Hot Roll Laminating Machine

AF-540 PLC Intelligent Control System A2 A3 52cm 20inch Air Suction Automatic Roll Laminating Machine

BFT-380A Fully Automatic Paper Feeding Roll Laminating Machine

VS-450S Fully Automatic Hydraulic Air Suction Feeding Laminating Machine

SL-400A Separate Pneumatic Semi Automatic Roll Laminating Machine

HP-720Z PLC Control Semi Automatic Hydraulic Pressure Laminating Machine

HP-520MFA 250W Anti Curl Function Hydraulic Hot Roll Laminator

H-520MFA Heavy Duty Hydraulic Fully Automatic Laminating Machine

H-13 Hydraulic Pressure Control Fully Automatic Hot Roll Laminating Machine

Max. size of roll film	0.53m ×3000 m
Film thickness range	17Mic～42Mic
Applicable dimension of reel for roll film	Φ75mm
Max. O.D. dimension of roll film	Φ300mm
Applicable thickness of paper core	Laser printing paper	128～450g/㎡
	Printing paper	157～350g/㎡
Max. applicable size of printed matter	540×760mm
Min. applicable size of printed matter	297×420 mm
Capacity of paper table	500mm
Speed regulation range	1～20m/min
Temperature regulation range	80～140℃
Preheating time	20℃At room temperature 10min（100℃）
Operation and display system	Touch screen
Pressurization mode	Hydraulic pressure
Heating mode	Oil heating
Laminating roll diameter	Upper roll	High gloss chromium plating 160mm
	Lower roll	Silicon rubber 100mm
Paper overlap accuracy	±2mm
Rated input power	6500W
Rated input voltage	220～240VAC，50/60Hz
Physical dimensions of machine (L×W×H)	2150×960×1500 mm
Net weight of complete machine	445Kg
Gross weight of machine	552Kg
Machine transport dimensions(L × W × H)	167CM115CM135CM

Max. size of roll film	0.53m ×3000 m
Film thickness range	17Mic～42Mic
Applicable dimension of reel for roll film	Φ75mm
Max. O.D. dimension of roll film	Φ300mm
Applicable thickness of paper core	Laser printing paper	128～450g/㎡
	Printing paper	157～350g/㎡
Max. applicable size of printed matter	540×760mm
Min. applicable size of printed matter	297×420 mm
Capacity of paper table	500mm
Speed regulation range	1～20m/min
Temperature regulation range	80～140℃
Preheating time	20℃At room temperature 10min（100℃）
Operation and display system	Touch screen
Pressurization mode	Hydraulic pressure
Heating mode	Oil heating
Laminating roll diameter	Upper roll	High gloss chromium plating 160mm
	Lower roll	Silicon rubber 100mm
Paper overlap accuracy	±2mm
Rated input power	6500W
Rated input voltage	220～240VAC，50/60Hz
Physical dimensions of machine (L×W×H)	2150×960×1500 mm
Net weight of complete machine	445Kg
Gross weight of machine	552Kg
Machine transport dimensions(L × W × H)	167CM115CM135CM
