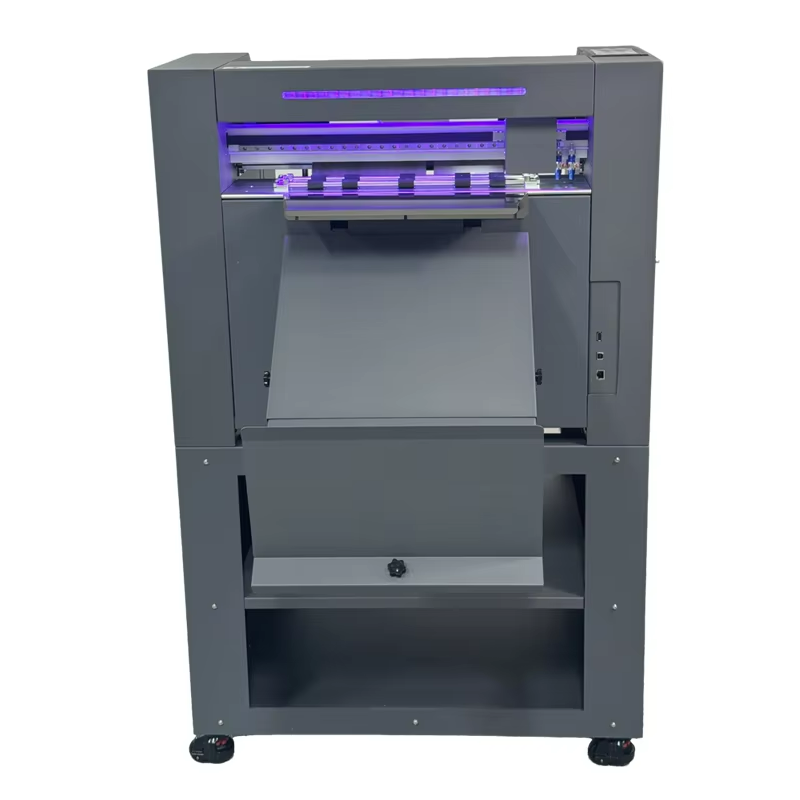

ASF-350MAX Automatic Desktop Sticker Sheet & Label Cutter – High-Precision A3+ Automatic Die-Cutting Machine with CCD Positioning and Suction Auto-Feed

The ASF-350MAX is a professional automatic desktop label and sticker cutting machine designed for precision contour cutting of labels, stickers, packaging inserts, and graphic shapes. Featuring automatic suction feed, CCD positioning, and versatile connectivity, it delivers high speed and reliable performance ideal for startups, print-on-demand sellers, and small to medium production environments.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ASF-350MAX/ASF-530MAX

  • befitter

  • 8441100000

  • AC high speed servo motor 30years service life
  • Air suction 12cm stack label cutting machine
  • Cutting and creasing
  • full cuting or half cuting
  • Support windows and Mac system

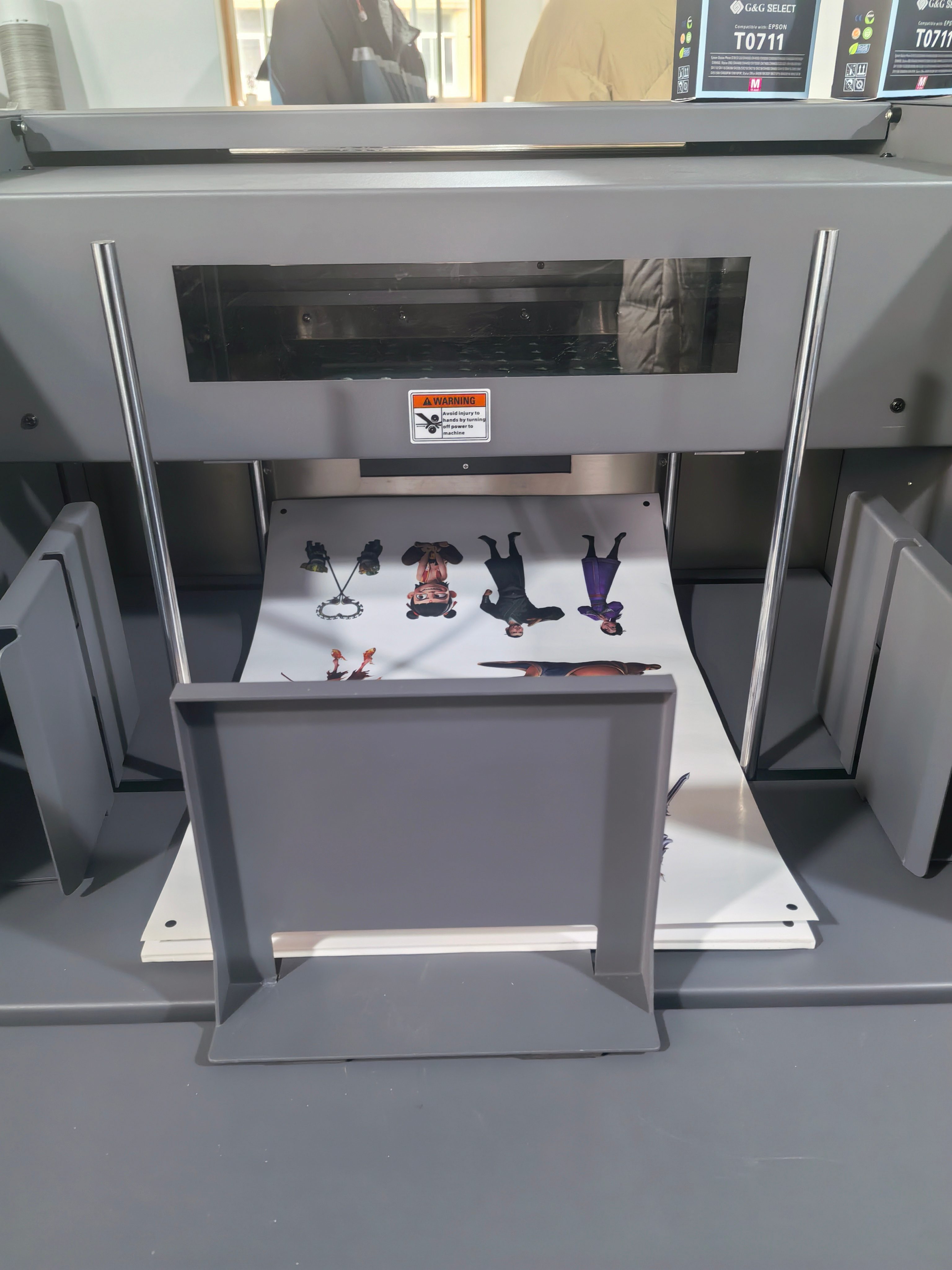

  • Automatic Suction Paper Feeding – fast, consistent sheet supply
  • High-Precision CCD Positioning – accurate contour detection
  • Suitable for A4, A3, A3+ Sticker Sheets

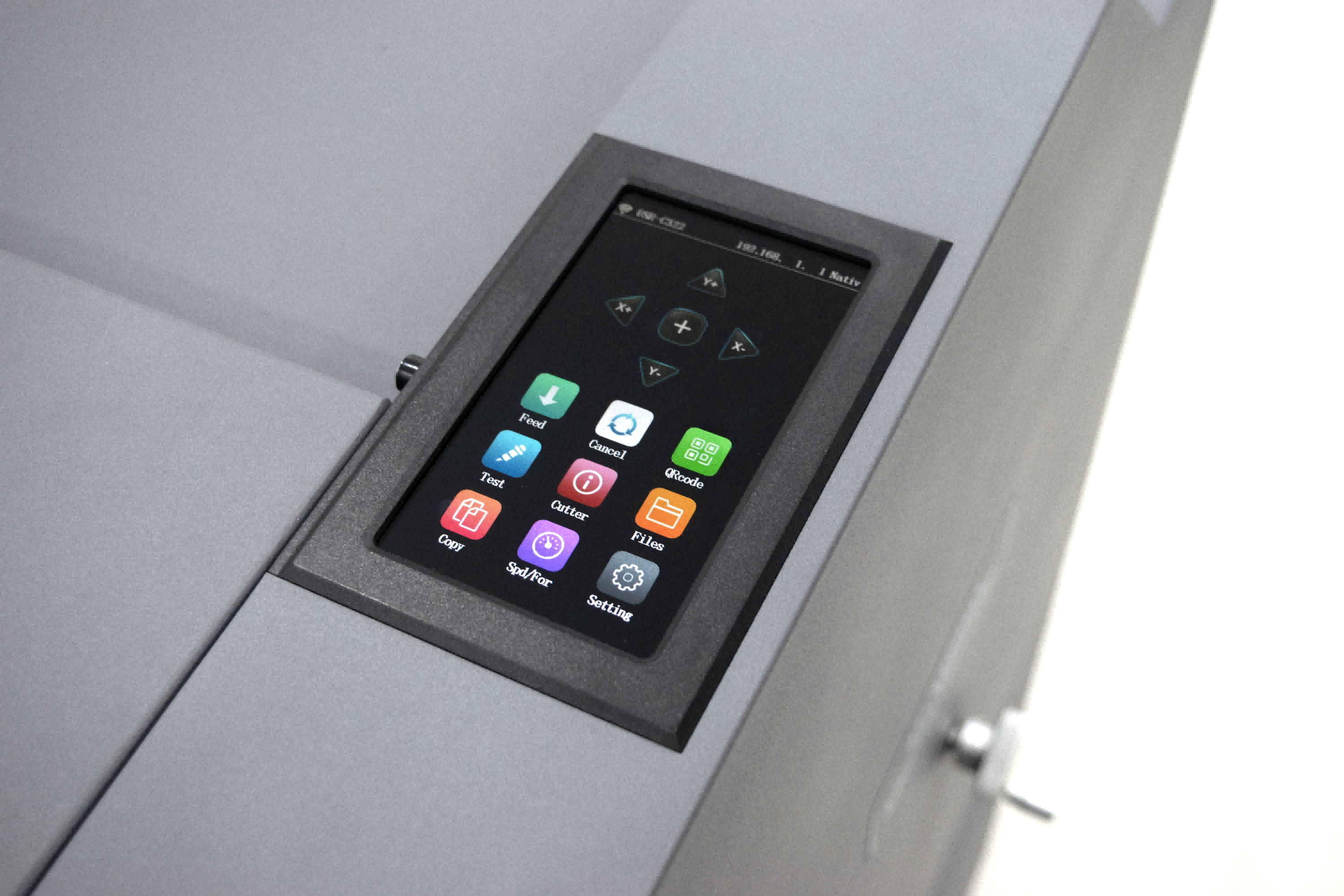

  • 5.1” LCD Touchscreen for intuitive control
  • Multi-Input: USB / U-Disk / LAN / WiFi support
  • Compatible with Windows & Mac (CDR / AI software support)
Model
SF-350max
SF-530max
Functional Features
Adopting a suction-type paper feeding method, with a larger capacity paper bin, effectively preventing the feeding of double sheets, and featuring anti-static material design
Electrical machinery
The adoption of a brand-new AC servo motor for driving ensures a longer motor lifespan.
Configuration
High-precision servo system, automatic paper feeding, automatic CCD positioning scanning and cutting
Ways to fix material
Double row platen
Maximum cutting speed
1800mm/s
Maximum cut
1000 gf
Effective cutting area
350x600mm
530*740mm
Positioning method
CCD camera positioning
Applicable to material rulerinch
A4, A3, A3+
A4, A3, A3+,B4, B3,B2
Machine Precision
0.005 mm (5µm)
Programming Resolution
HP-GL: 0.025mm
Repeatability
0.1mm
Machine input interface
USB2.0 (Full Speed) / U disk (offline) / network cable/Wifi
Motherboard Memory
256MB
Command language
HP-GL
Number of tools
Single head

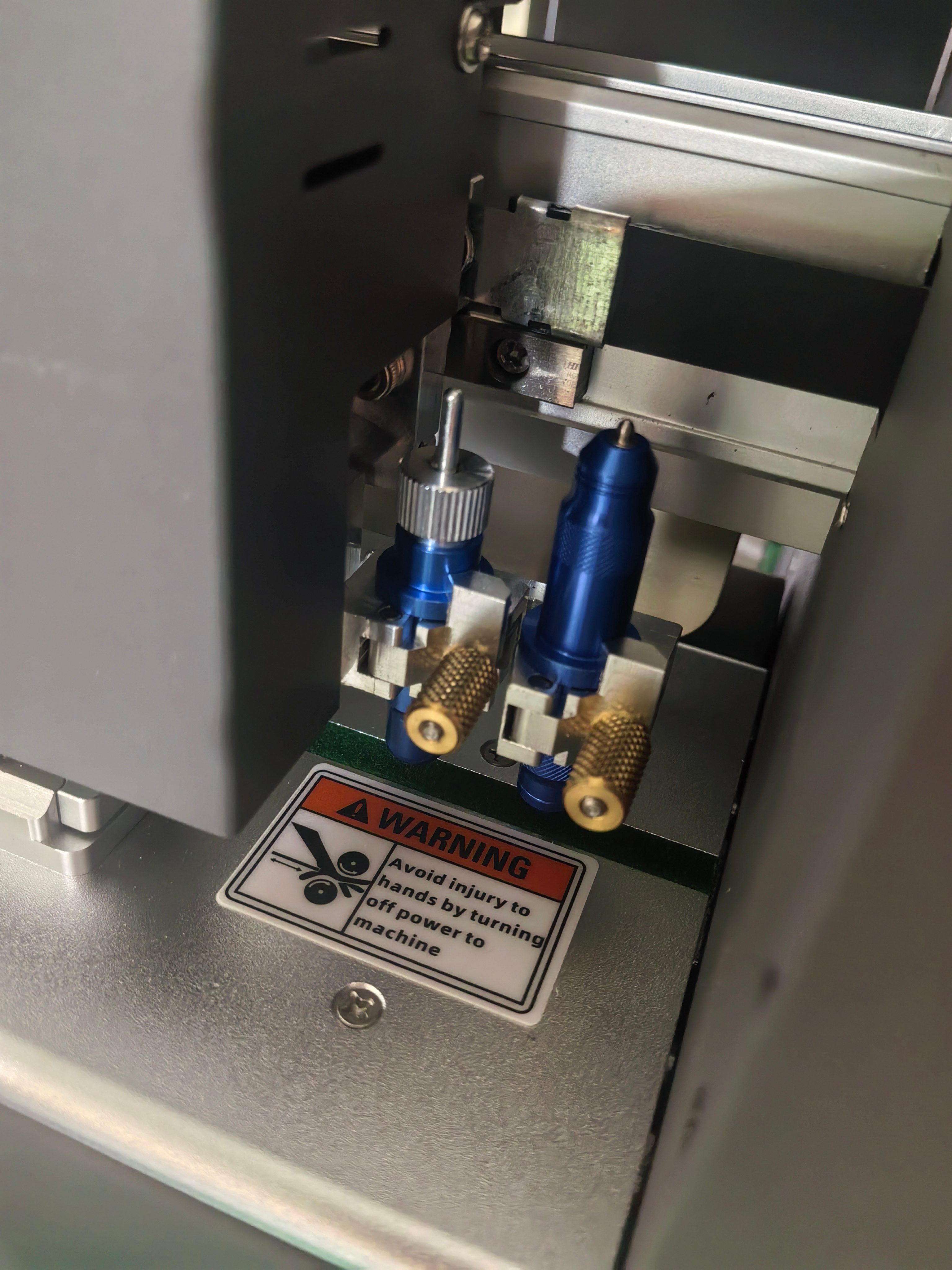

Tool Type
Cutting tools, indentation knives
Control Panel
5.1 inch LCD touch screen
Power
100 to 240 V AC, 50/60 Hz (auto switching)    Max. 200VA (machine),
machine operating environment
Ambient temperature: 10 to 35 degrees C (35 to 95 degrees F)
Humidity
35 to 75% RH (non-condensing)
Land size
775x600x1205mm
900x700x1205mm
Package size
750x680x1020mm
800x780x1200mm
Gross / Net weight
150kg / 130kg
180kg / 150kg
Compatible operating systems and software
Windows and Mac, support CDR, AI plug-in mode


  • Sticker shops & online sellers

  • Custom label production

  • Packaging inserts & graphic die-cutting

  • Small print houses & creative studios


ASF-350MAX Automatic Desktop Sticker Sheet & Label Cutter – High-Precision A3+ Automatic Die-Cutting Machine with CCD Positioning and Suction Auto-Feed-Application

label cutter SF-350

Q1. What file formats does this machine support?
A: The machine supports common vector files exported from CorelDRAW and Adobe Illustrator, such as AI and CDR (via plug-ins).


Q2. Does it support offline operation?

A: Yes. Cutting files can be uploaded via USB or U-Disk, allowing the machine to operate independently without a computer.


Q3. Can the machine run unattended for long periods?

A: Yes. With automatic sheet feeding and CCD contour positioning, the machine can run unattended once the cutting jobs are properly loaded.
