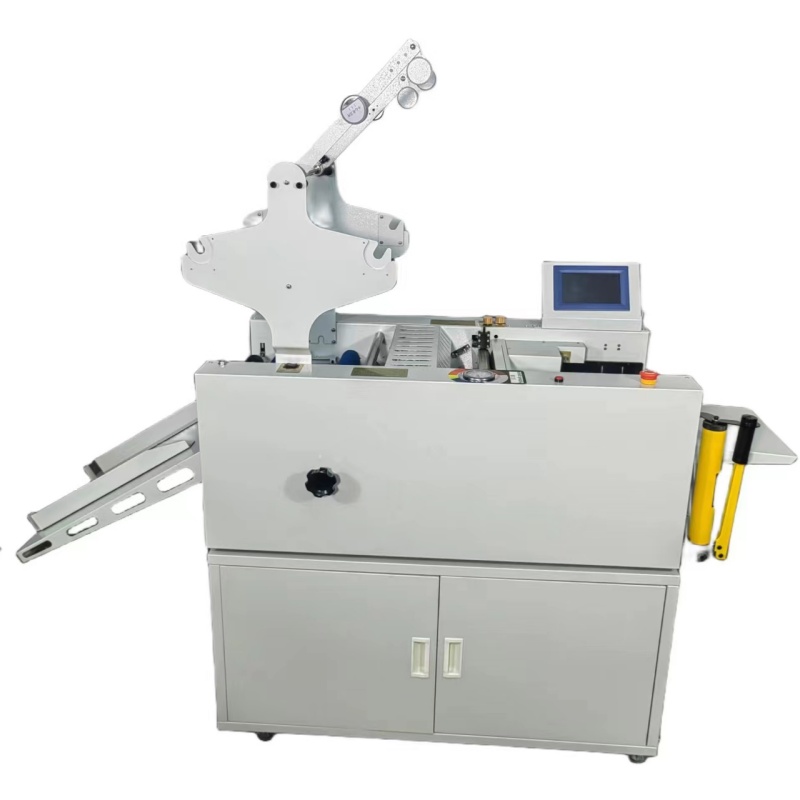

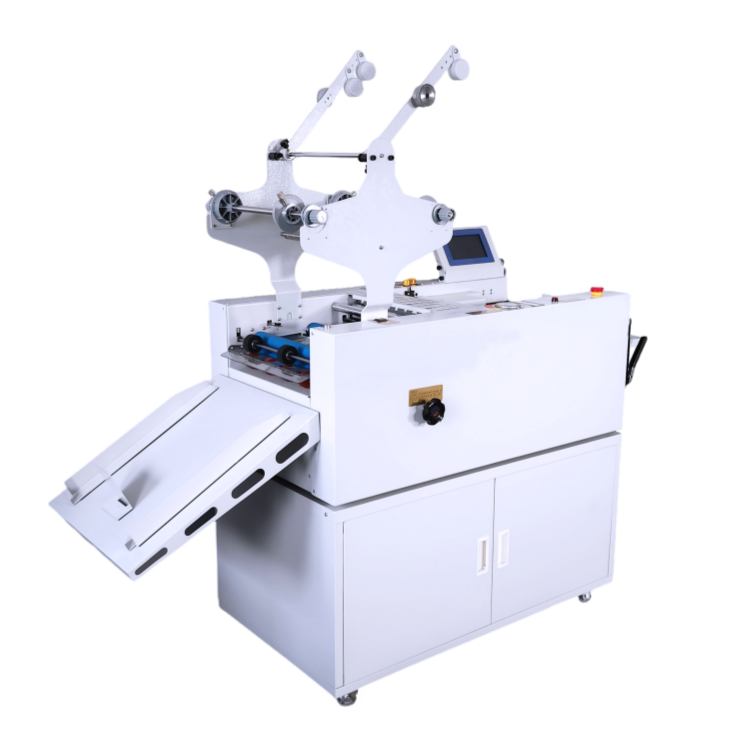

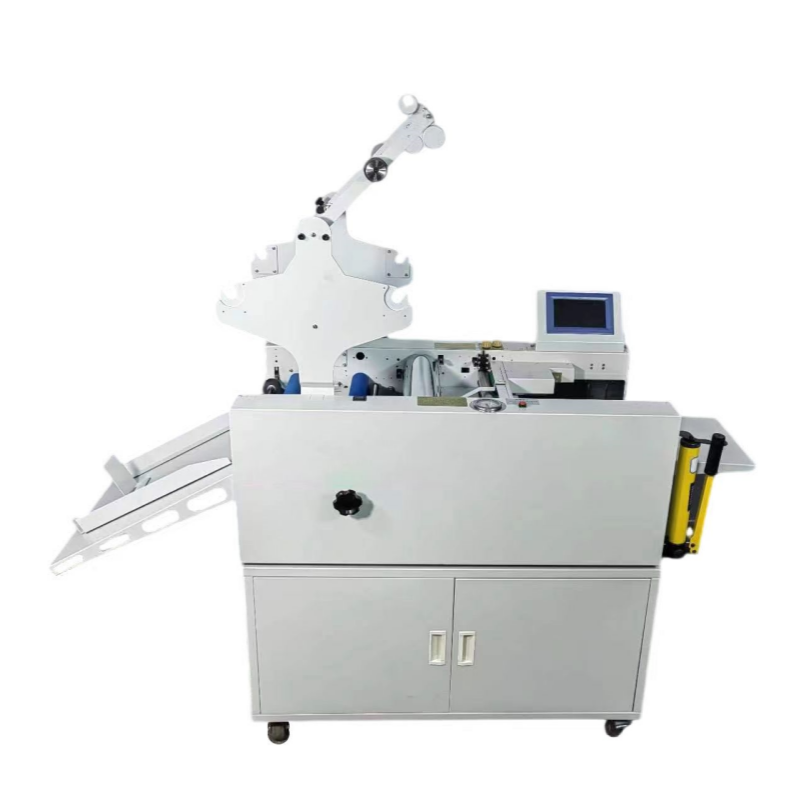

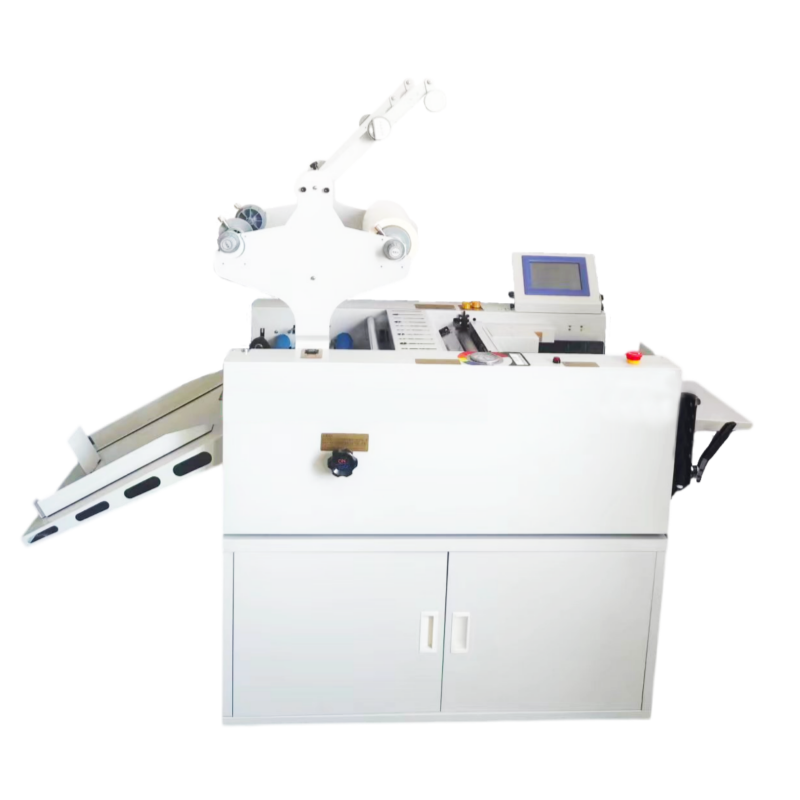

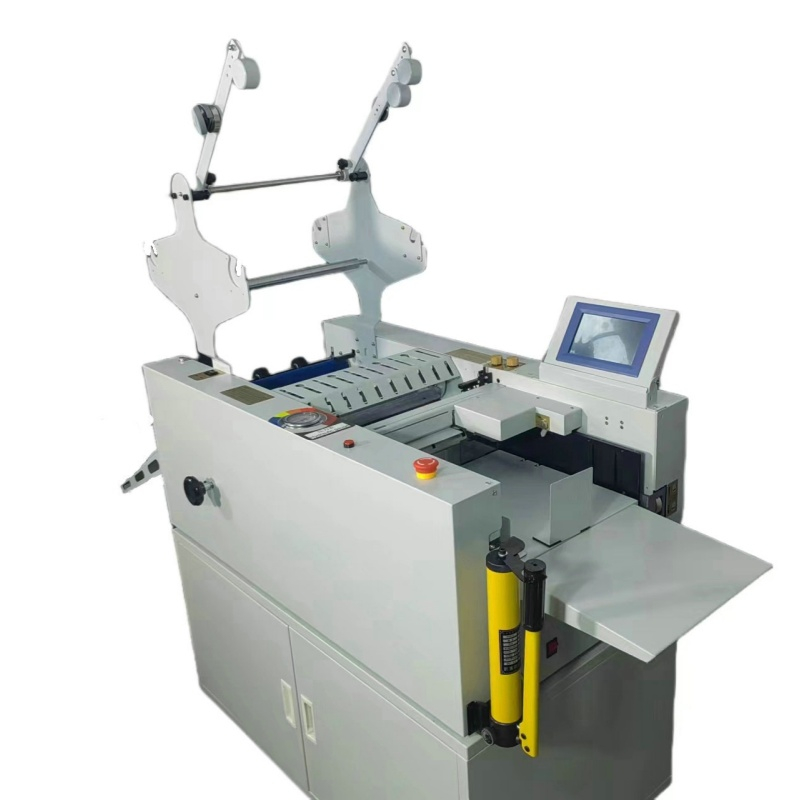

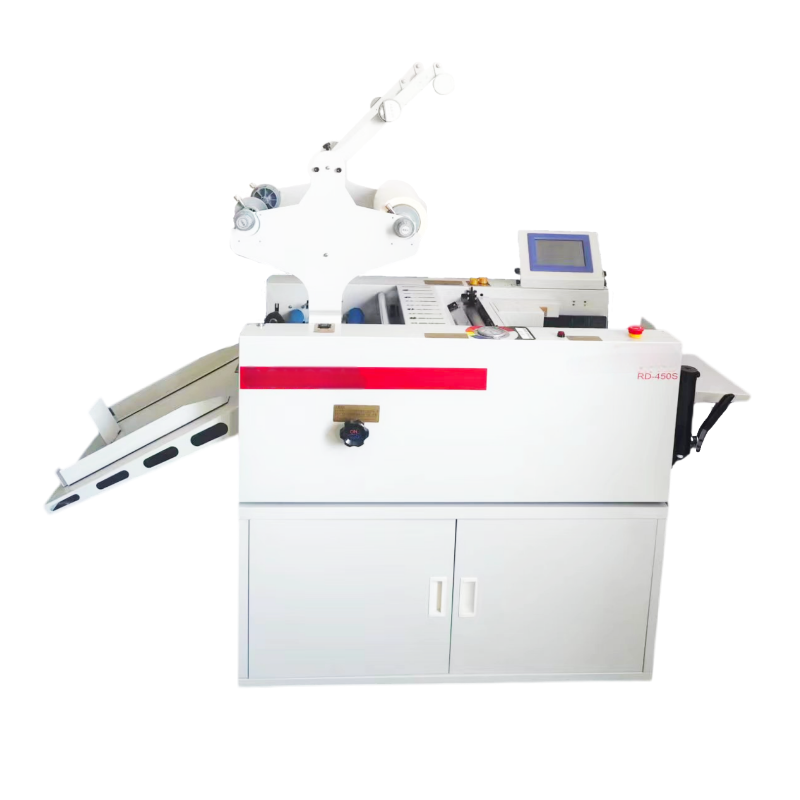

VS-450S Fully Automatic Hydraulic Air Suction Feeding Laminating Machine

Our company is a set of design, manufacturing, installation, commissioning,maintenance one-stop service professional post-press equipment manufacturing innovative technology enterprises, the company focuses on the field of digital post-pressequipment. Fully automatic laminating machine can reach 5 m/min per hour. Its uniqueblowing and suction function can help you quickly and automatically separate and feedpaper, saving time and effort. Automatic digital edging function is adopted to make itmore intelligent and convenient for users to adjust edging distance. The machine issuitable for the minimum width 148x210mm, the maximum width 330x480mm, fully meetyour common specifications of laminating business requirements.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Main Features:


  • Super 7 -inch color touch screen, the interface graphic is simple and easy to operate

  • Start at one click, automatically enter paper, put on side, cover the membrane, pull off, collect paper

  • High -precision stepping drive machine, edge accuracy ± 0.5mm

  • 90mm stack paper table, you can store 500 sheets of 200g copper paper version at one time

  • The solenoid valve pressure preservation technology,ensure that the pressure is not dropped during work

  • New electric anti -roll device, completely solve the phenomenon of double -sided scraping

  • Support minimum paper 148x210mm, maximum 330X3000mm

  • The size is smaller, solving the embarrassment of the tight space of the graphic advertising company

  • Double -film shaft design, easily change the film



Product Parameters:


Item

VS-450S

Feeding way

Air suction feeding

Diameter of metal roller

ȹ105mm

Speed

1-5m/min

Laminating width

148x210mm~330x630mm Customizable length up to 1.2 meters

Laminating thickness

100g-400g

Stack paper thickness

90mm

Core adaptor

1" and 3 "

Optional foil collection bar

Yes

Anti- curl function

electric

Overlap function

Digital

Overlap precision

±0.5mm

Separating

Electric

Pressure control

Hydraulic

Heating way

Electricity

Applicable Industries

Manufacturing Plant, Printing Shops, Advertising Company

Voltage

AC220V,1500W

Dimension(L*W*H)

1470X710X1550mm

Weight

170kg
