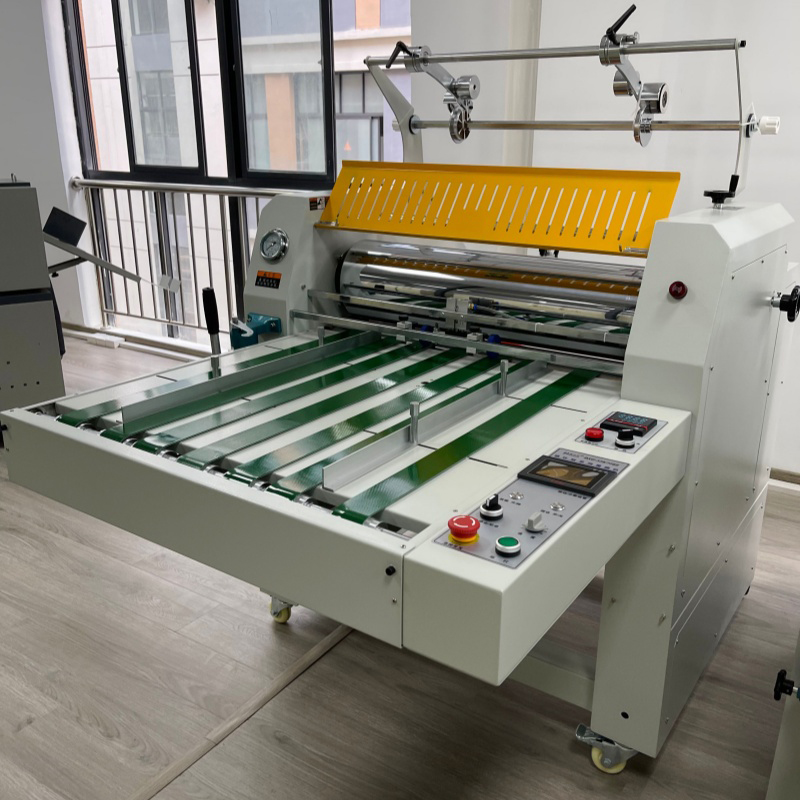

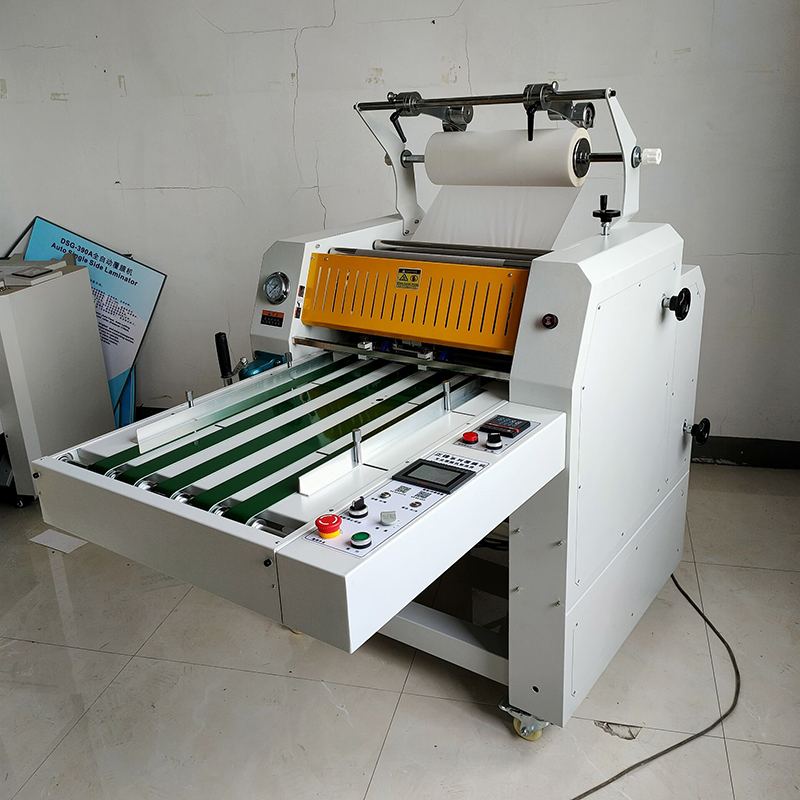

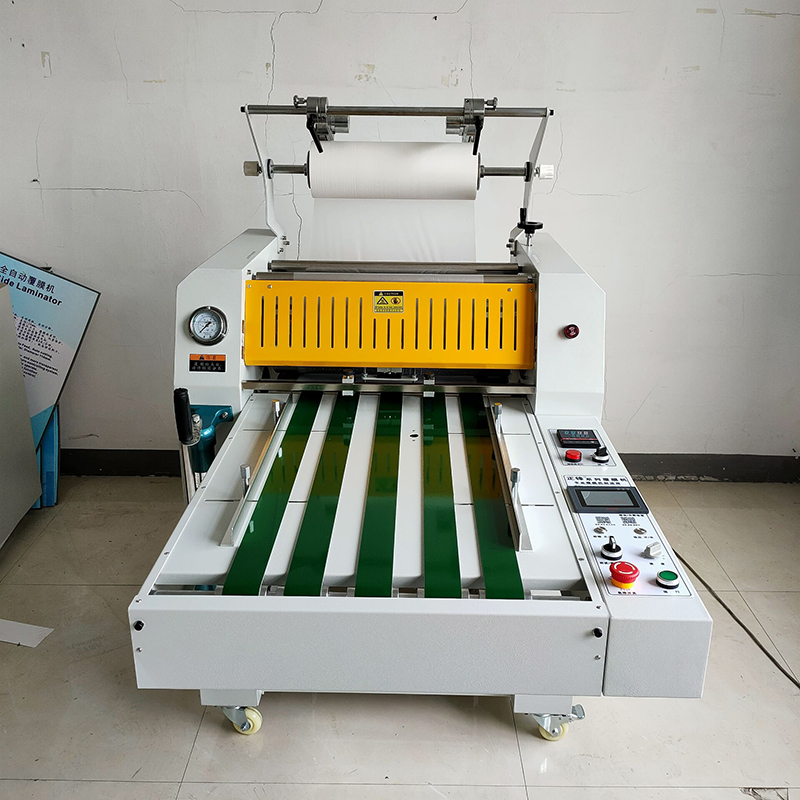

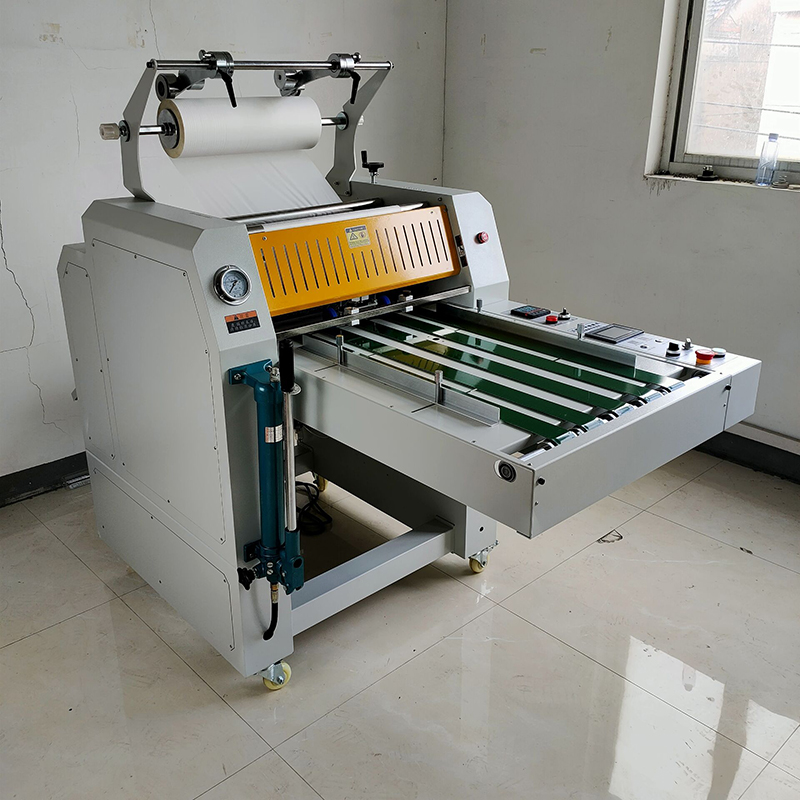

HP-720Z PLC Control Semi Automatic Hydraulic Pressure Laminating Machine

HP-720Z laminating machine with a 720mm A1 semi-automatic single or double-sided hydraulic roll laminating machine with automatic cutting, the HP-720Z is a top-of-the-line choice for those seeking a reliable and efficient laminating solution. Its hydraulic pressuring system and automatic lamination capabilities make it a standout choice in the market.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

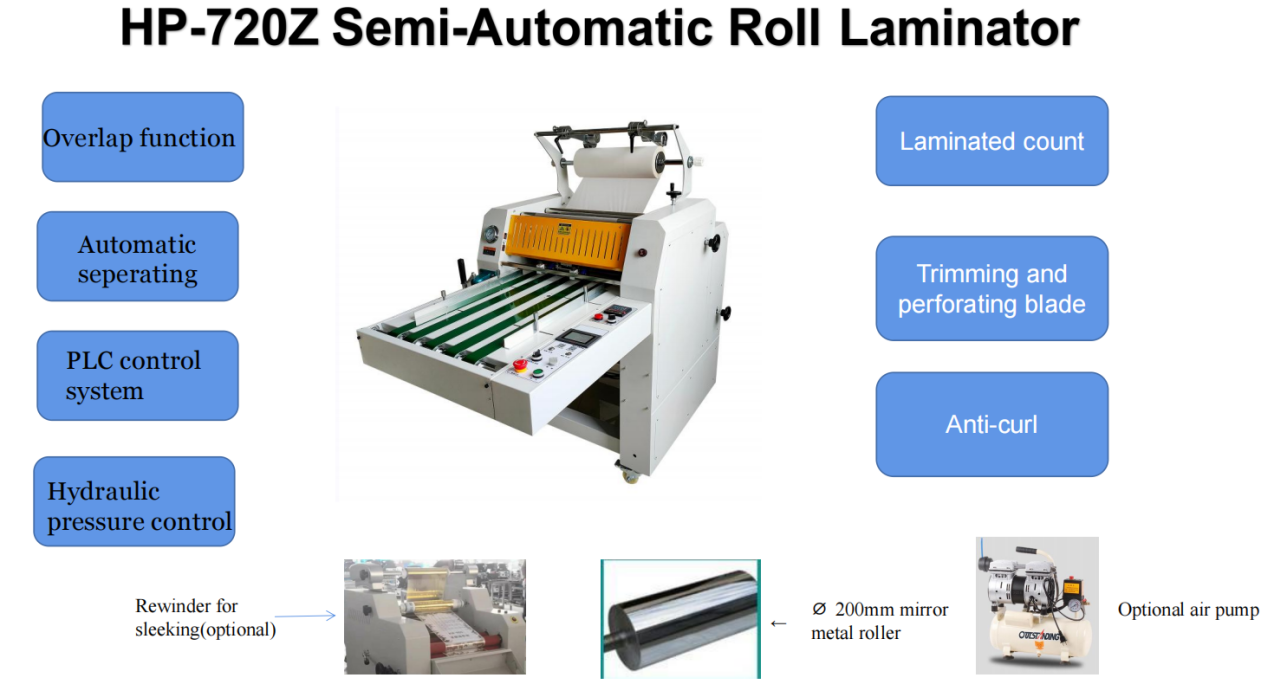

Main Features:


  • HP-720Z laminating machine is PLC control touch screen display system;

  • With convey belt, manual feed,auto seperate(pneumatic seperate), with overlap function(the overlap size can be setted);

  • Speed and temperature adjustable;

  • Hydraulic control system, Shockproof pressure indicator;

  • Single side anti-curl, with film cutter and perforating cutter;

  • With 200mm diameter steel roller, and 100mmdiameter bottom slicone roller;





Product Parameters:


Model HP-720Z
Max laminating width 720mm
Laminating speed 0-15m/min
Up steel roller diameter 200mm
Fix Film Diameter 280mm
Laminating thickness 120-400gsm
Max. heating temperature 160degree
Heating method Infrared heating
Heating power 3500W
Motor power 250W
Machine weight( GW/NW) 481KG/431KG

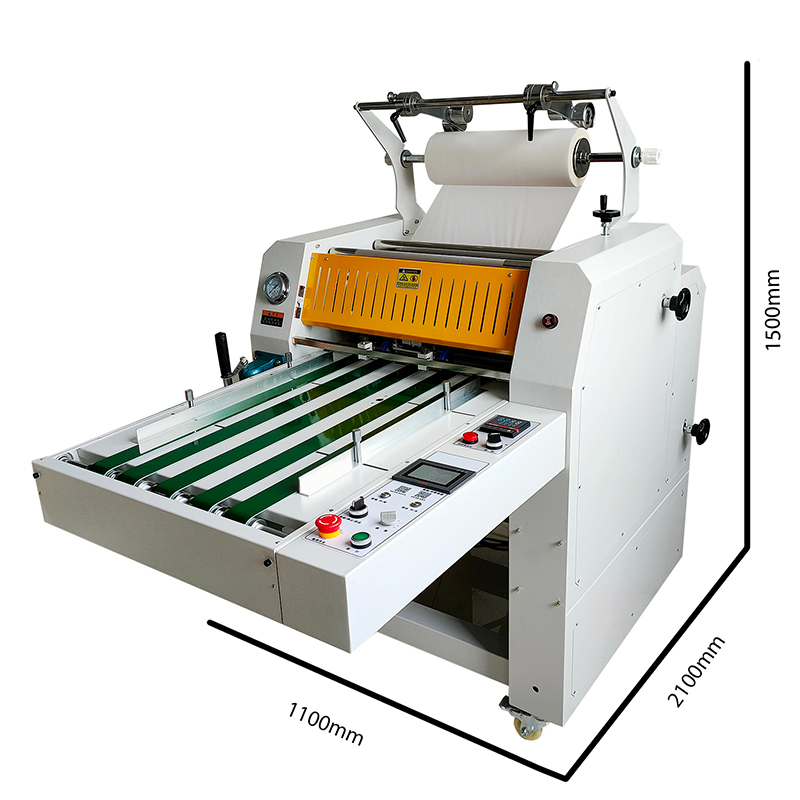

Dimension 2100*1100*1500mm
Package 1700*1220*1350mm
Power supply AC 220,110V/50,60HZ
