• Rigid Box & Gift Box Making — applies an even film of white latex to grey board and wrap paper before assembly, so box panels bond flat without lumps or dry spots.

• Hardcover & Case Making — coats board and cover stock for book cases and hardcover assembly, the job the wider 600 and 700 mm units are sized for.

• Paper Box & Carton Production — gluing paperboard and carton blanks in short to medium runs, with the width matched to the panel size.

• Cardboard & Mounting Board — coating heavier board and mounting stock, where the roller lays down a consistent layer instead of the streaky coat a brush leaves.

• Leather, Cloth & Specialty Stock — spreads cold glue on leather, fabric and other flexible materials used in box wrapping and binding.

• Print Finishing & Packaging Workshops — the general-purpose glue station in a finishing lineup, feeding the folder, binder and box line.

• Wallpaper & Wide Sheet Pasting — pasting wide paper sheets and wallpaper, where a controlled film beats hand brushing.

Why Choose This Machine

Three working widths in one range — 380, 600 and 700 mm, so the machine matches the panel you run instead of forcing a second pass on wide board.

Wheel gluing across the full width — the roller applies a consistent coat edge to edge, avoiding the streaks and bare patches that hand brushing leaves behind.

Speed adjustable from 0 to 26 m/min — match the feed rate to the material and how wet the glue needs to be, instead of working around one fixed speed.

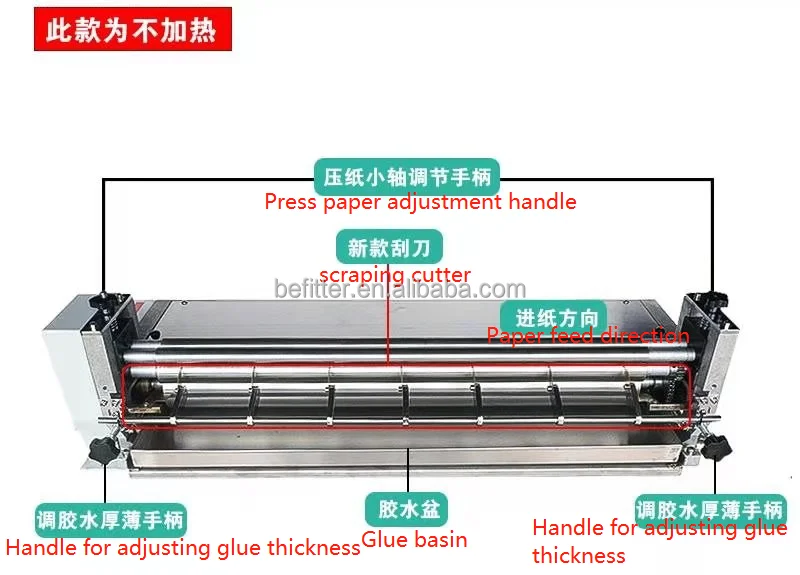

Adjustable glue film — dial the coating to the material, so thin paper and thick grey board each get the right layer rather than one fixed, wasteful coat.

Handles 0.1–10 mm material thickness — everything from light paper through heavy board and leather passes between the rollers.

Cold glue, no heating required — runs white latex (polyethylene glue) at room temperature, which suits heat-sensitive stock and cuts warm-up time entirely.

Corrosion-resistant build in stainless steel and aluminum alloy — the glue-contact parts resist white latex, so the machine holds up to daily use and cleans easily.

Rolling bearings and a speed-regulating motor — quiet, stable transmission with fewer vibration marks in the coat, and the machine runs on a standard socket.

Light 120 W draw — costs a fraction of what heated gluing units pull, and needs no special wiring.

Compact desktop units from 38 to 55 kg — sit on a bench and move where the work is, which matters in shops where floor space is the constraint.

8. Packing & Shipping

Standard export wooden case packaging, one unit per case.

Sea, air or express freight available to your port or door.

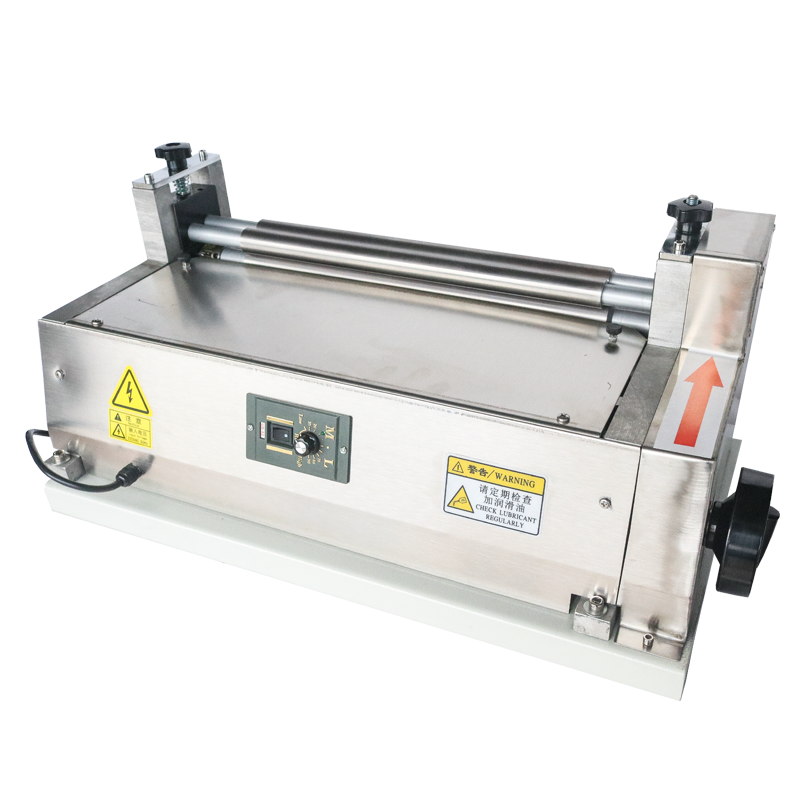

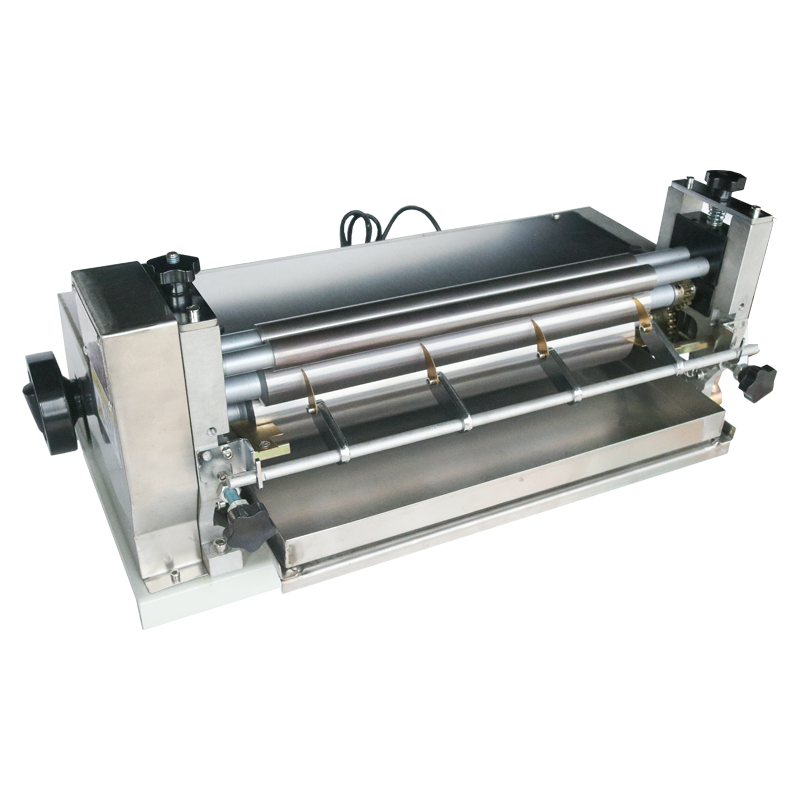

Machine dimensions and net weight, by model: JS-380A 680 × 410 × 300 mm, 38 kg; JS-600A 880 × 410 × 300 mm, 48 kg; JS-720A 980 × 410 × 300 mm, 55 kg. Contact us for crate dimensions, gross weight and loading quantities.

9. After-Sales & Support

Every unit is tested before shipment, with a machinery test report and outgoing inspection video provided.

12-month warranty with spare parts supply.

Online technical support directly from factory technicians, plus user manual and operation guide.
