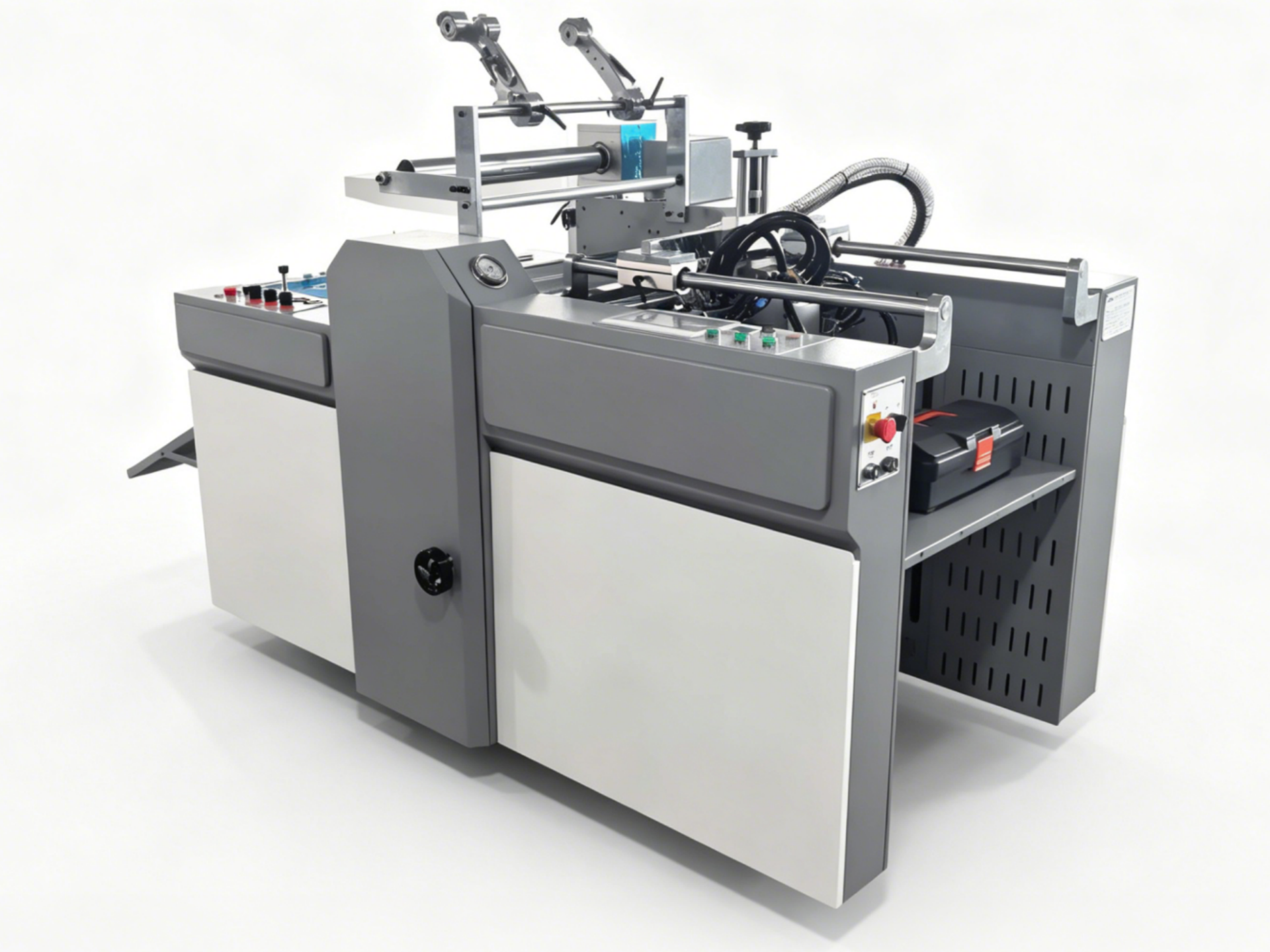

Why Choose This Machine

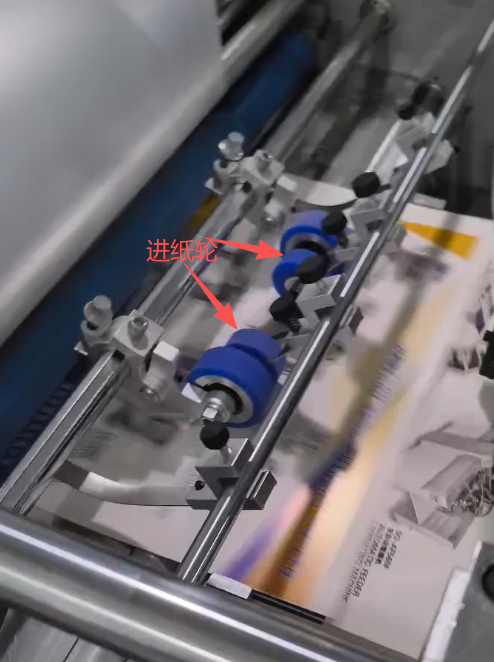

Feida air-suction auto feeding (vacuum pump standard) — sheets are separated and fed automatically off a 550 mm pile, so one operator can run several machines instead of standing at the infeed.
Hydraulic pressure, electrically controlled — pressure is set and adjusted from the panel rather than by hand, and holds consistently across a run on 125–500 gsm coated and printed stock.
Inovance PLC with HMI touch screen — speed, temperature and pressure are set on screen and repeat between jobs, so results don't depend on which operator is running the shift.
30 m/min working speed — production output that keeps pace with a small-format press rather than office-grade throughput.
Ø200 mm chrome-plated steel upper roller with Ø165 mm silicone lower roller — the large upper roller plus internal oil heating at 80–140 °C spreads heat and pressure evenly across the full 760 mm width, and the chrome surface resists film build-up.
Overlap accuracy of ±2 mm — sheets come out stacked in register, so the next cutting or folding step doesn't need re-jigging.
550 mm feed pile height — a tall stack loads in one go, cutting reloading downtime on long runs.
Pneumatic separating with edge trimmer and perforating blade — film is cut cleanly at the sheet edge, so there's no web to tear apart afterwards.
Automatic stop when out of paper — the machine halts rather than running film onto a bare roller while nobody is watching.
Anti-curl device — laminated sheets come out flat instead of curling, so they can go straight to the next operation.
Runs on 220 V or 380 V, 10 kW, single-sided — supply spec is set to destination, so it can be ordered for either line voltage. Preheats in about 10 minutes.

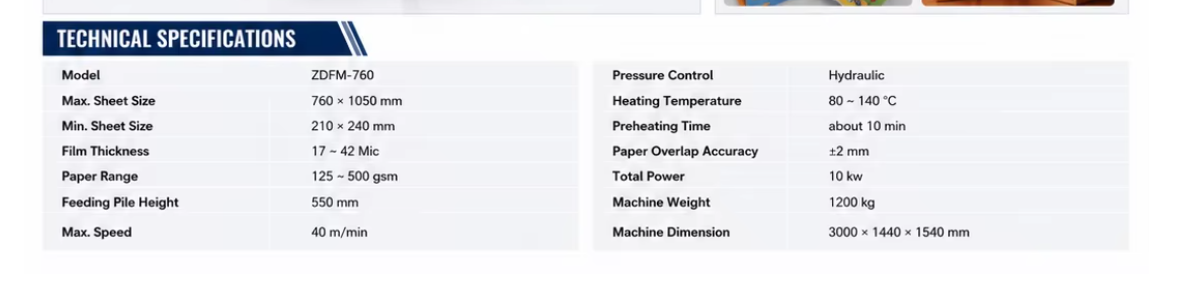

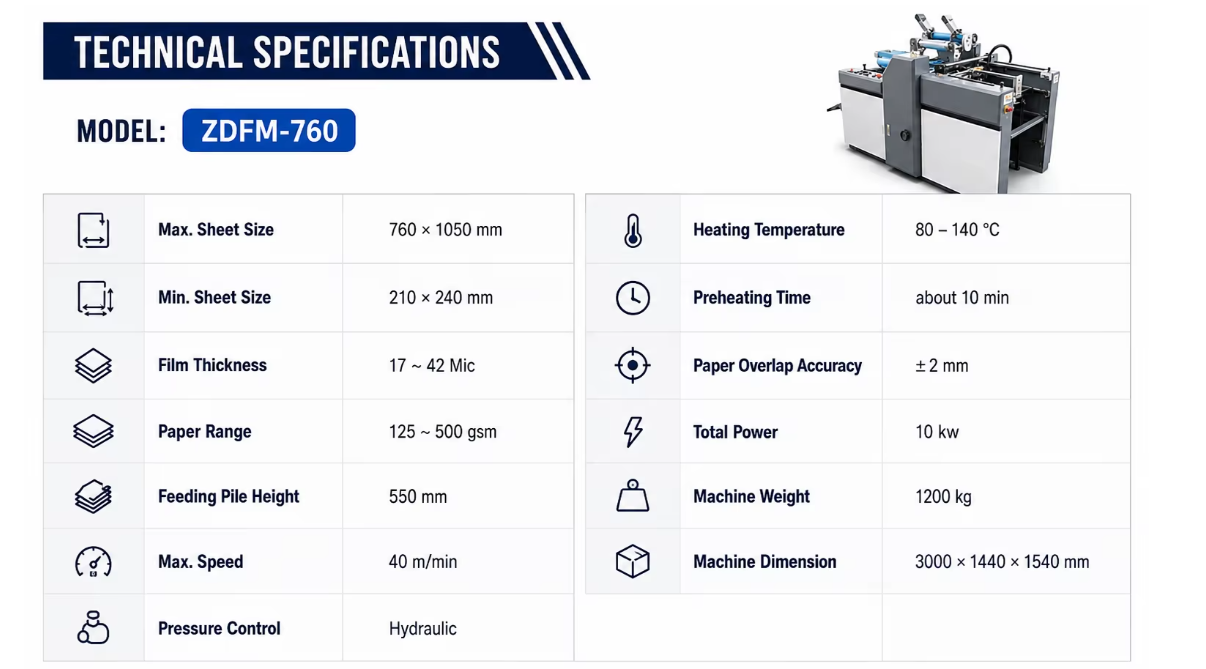

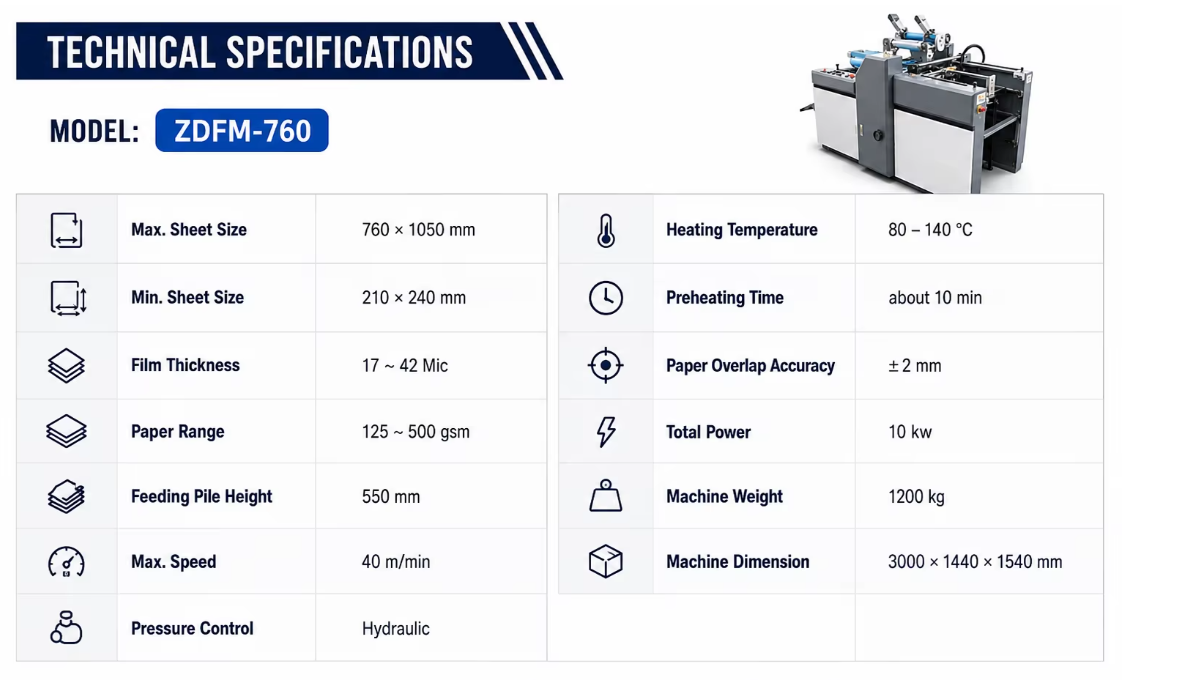

760 × 1050 mm maximum sheet, 210 × 240 mm minimum, 125–500 gsm — light text stock through heavy cover board on one machine, on BOPP thermal or pre-coated film from 17 to 42 μm.
8. Packing & Shipping
Standard export wooden case packaging, one unit per case. Sea, air or express freight to your port or door. Gross weight 1200 kg; machine dimensions 3000 × 1440 × 1540 mm. FOB, CFR, CIF and EXW terms accepted, T/T, L/C or Western Union. Note: the crate size currently published on our Made-in-China page (230 × 150 × 170 cm) is smaller than the machine itself — it needs to be re-measured before any quotation or booking.
9. After-Sales & Support
Every unit is tested before shipment, with a machinery test report and outgoing inspection video provided. Spare parts supply with a 12-month warranty, online technical support from factory technicians, English manual and installation videos. Note: our own website states a 2-year warranty while the Made-in-China listing says 12 months — these need to be reconciled before this text goes out.
