• Stickers & Self-Adhesive Labels — contour cutting of adhesive labels and stickers, with CCD positioning following the printed mark points so cut lines register to the artwork.

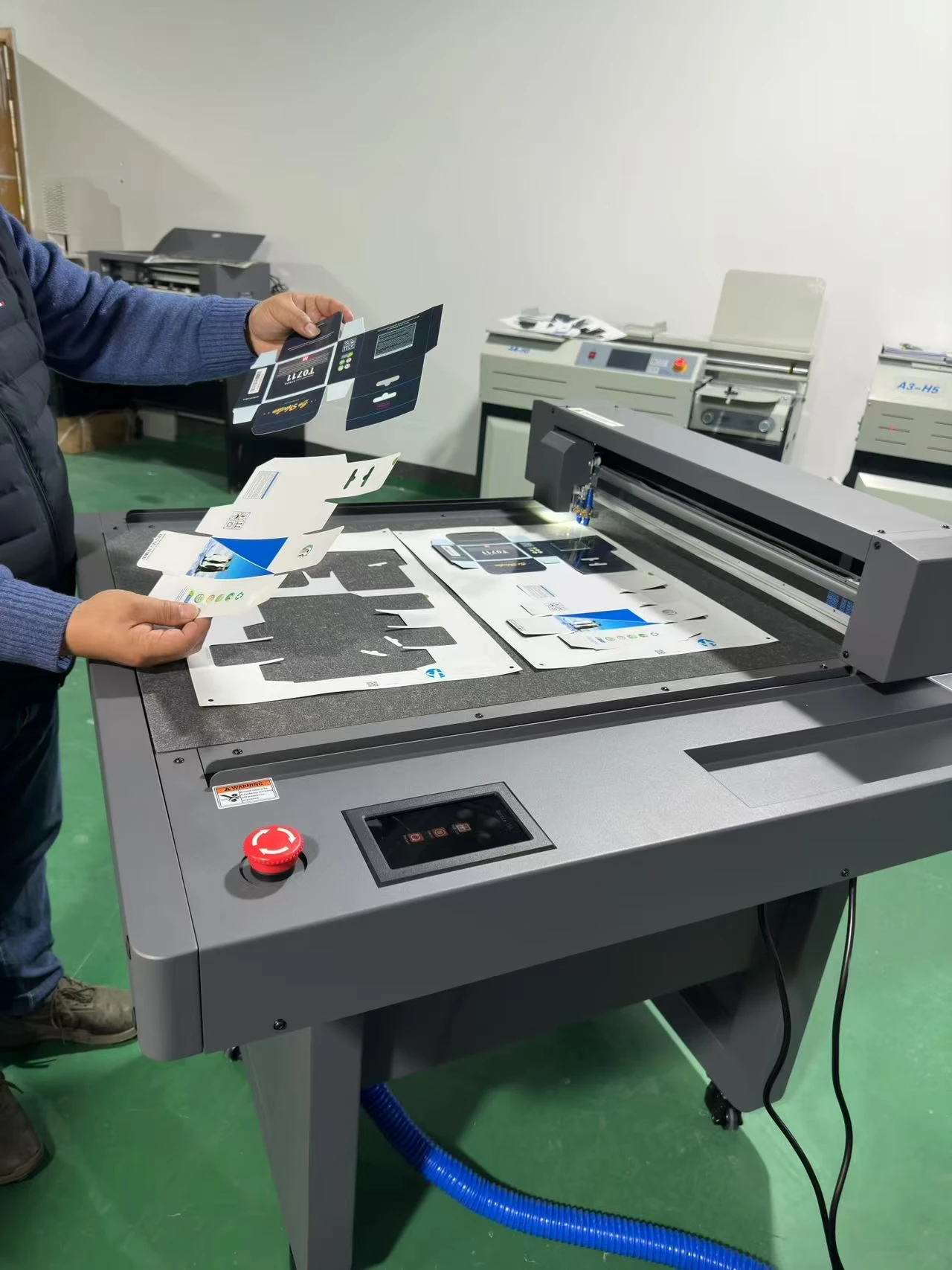

• Cardboard & Packaging Samples — cutting and creasing cardboard into box blanks and prototypes; the creasing tool scores the fold lines, so a sample can be folded on the machine rather than hand-scored.

• Cards, Tags & POP Displays — cards, retail tags and point-of-sale display pieces in small batches, cut from the sheet without a die.

• PVC, PET & Industrial Films — PVC, PET, heat-insulation material, dust-proof material and EMI shielding materials, which the vacuum table holds flat while cutting.

• Signage & Retail Graphics — short-run signage, window decals and promotional graphics cut to size on demand.

• Photobook & Presentation Covers — covers and insert sheets cut from A4, A3 and larger formats, with two sheets processed at a time.

• Label Printers, Packaging Converters & Design Studios — the on-demand cutting station that replaces a die for short runs and samples.

Why Choose This Machine

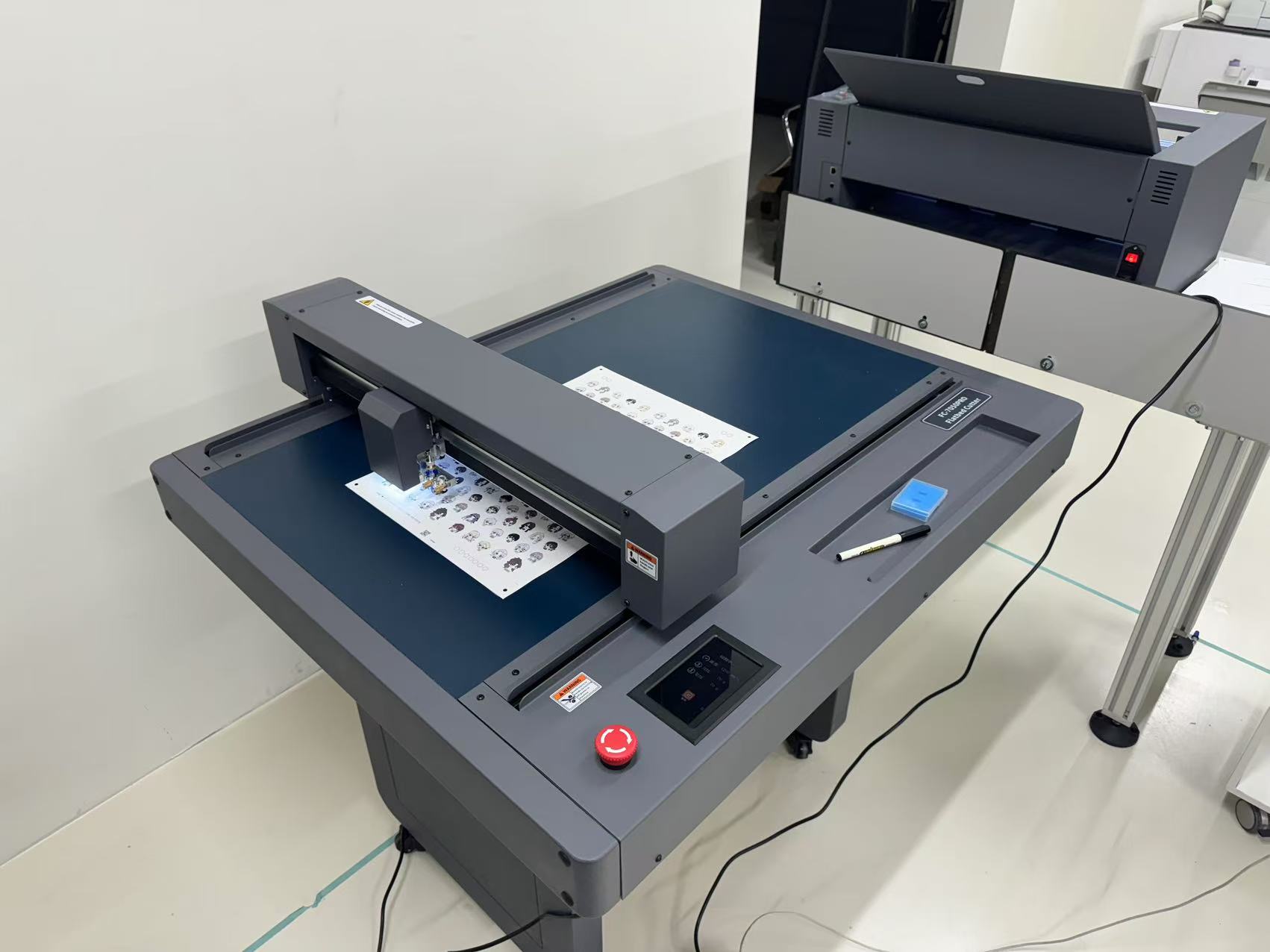

CCD camera positioning — a high-resolution camera reads the 5 mm circular mark points on the sheet, and it works on colored and transparent materials, which is what makes printed-then-cut label work register properly.

0.005 mm mechanical resolution with 0.1 mm repeatability — fine enough for intricate sticker contours and precise packaging creases, and it repeats on the next sheet.

Vacuum suction table on the full 1200 × 900 mm bed — the material is held flat and pulled down, so thin film and large sheets don't lift or shift mid-cut.

High-precision servo drive at up to 1,200 mm/s — production speed for short runs, with three working modes to trade speed against accuracy as the job needs.

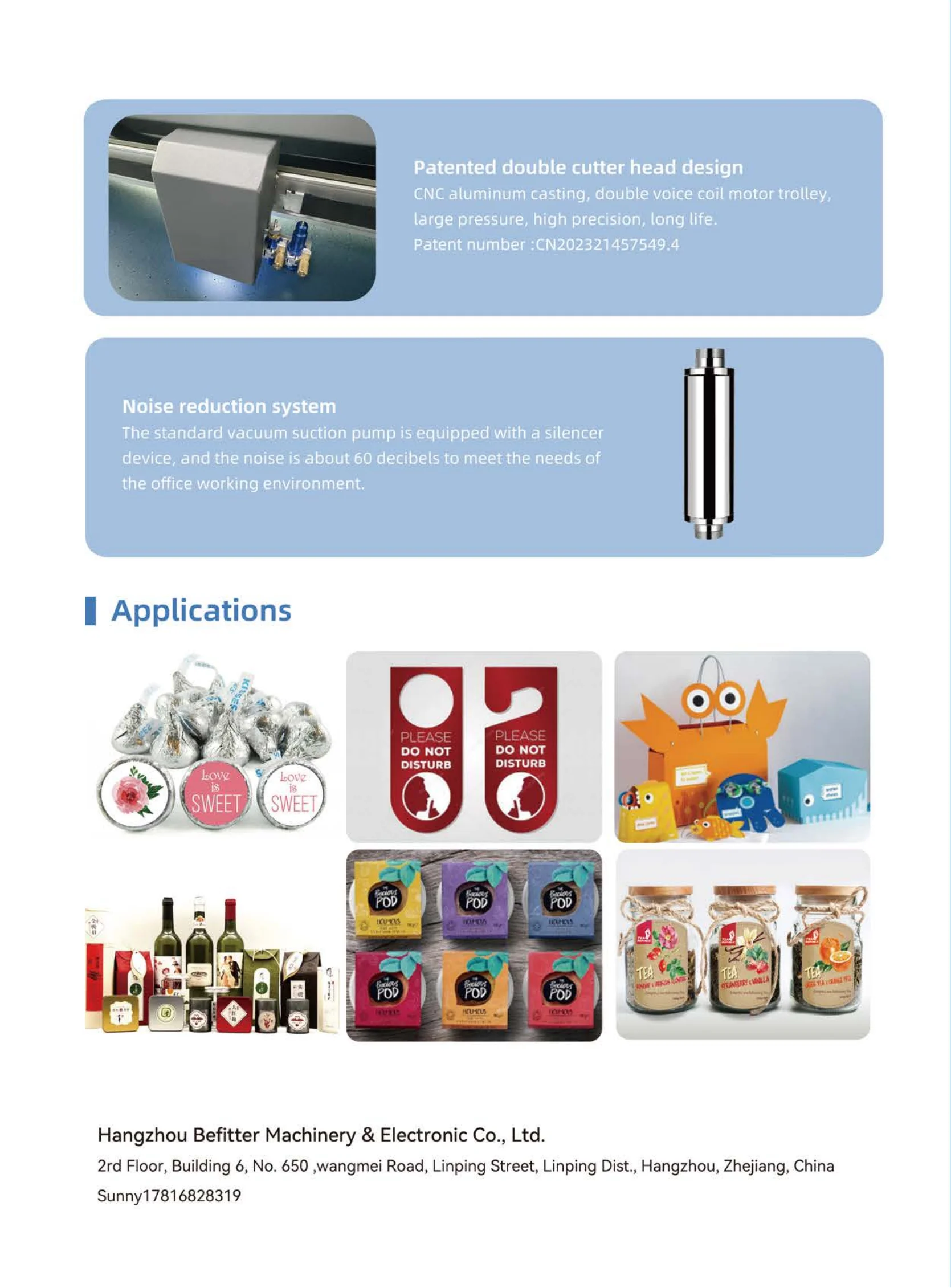

Double tool head with blade, pen and creasing tools — cutting, drawing and scoring on one machine, which is what lets it produce foldable packaging samples rather than just cuts.

QR code mode — the machine reads a 2D code printed on the material and pulls the matching cut file itself, cutting the time spent selecting files between jobs.

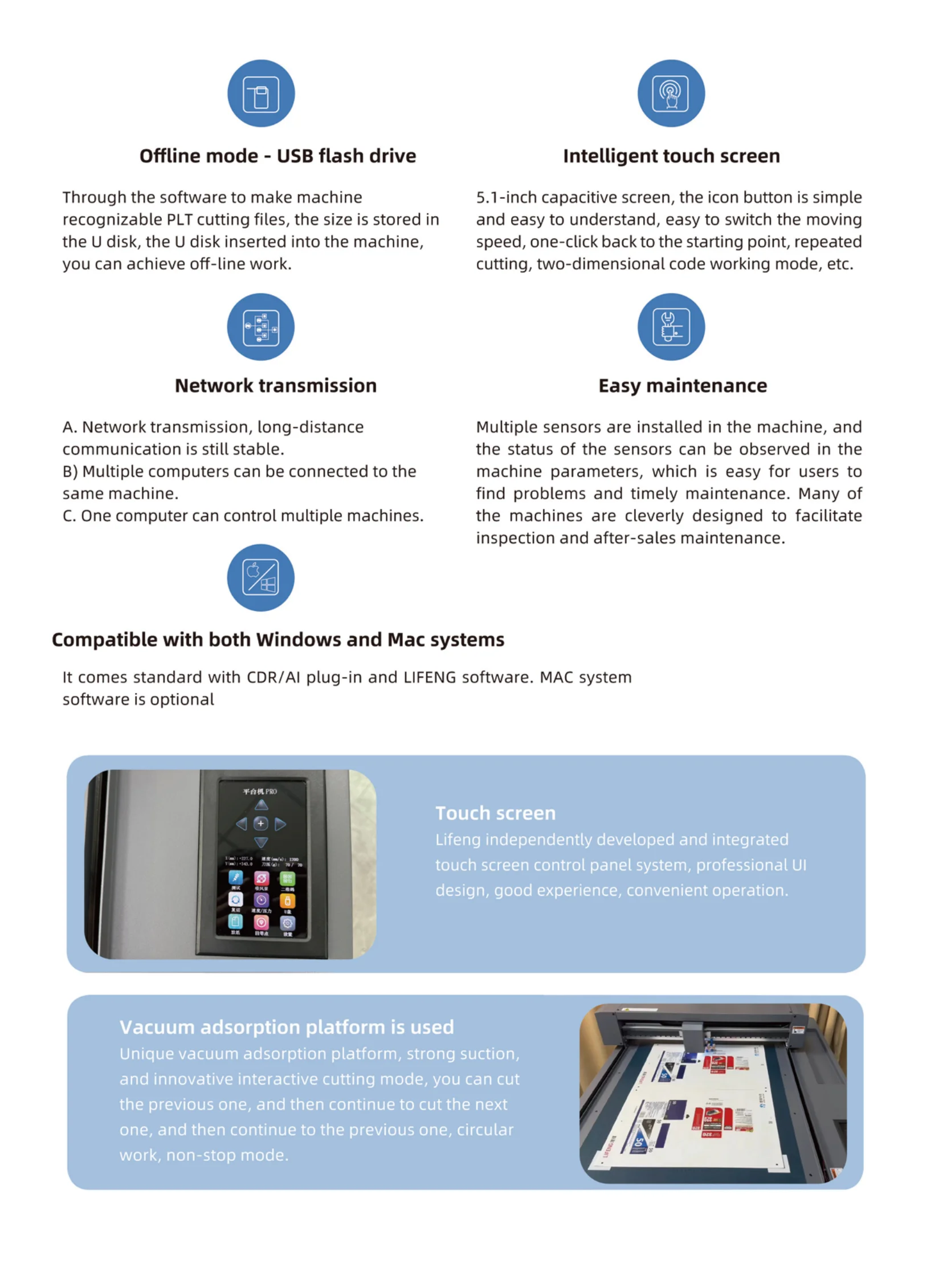

Offline USB operation plus network transmission — run from a U-disk at the machine, or push jobs over Ethernet; multiple computers can share one machine, or one computer can drive several.

5.1" LCD touch screen — speed, repeat cutting, return-to-origin and QR mode are set from the panel, so the operator doesn't need to be at a PC.

32 MB onboard memory with HP-GL and 0.025 mm programming resolution — handles complex multi-contour files on the machine.

Works with Windows and Mac, with CDR and AI plug-ins included — drops into an existing design workflow instead of needing a dedicated RIP.

100–240 V auto-switching supply — runs on either market's power without a transformer.

Sensor monitoring built in — the machine reports the state of its sensors in the parameters menu, which makes faults easier to find and maintenance quicker.

8. Packing & Shipping

Standard export wooden case packaging. The machine and the vacuum pump ship as two separate crates.

Sea, air or express freight available to your port or door.

Machine dimensions 150 × 130 × 106 cm, net weight 136 kg (gross 150 kg). Vacuum pump net weight 20 kg (gross 21 kg).

Power note: the vacuum pump runs separately from the machine and draws up to 550 W of its own. Please confirm the site supply covers both units.

9. After-Sales & Support

Every unit is tested before shipment, with a machinery test report and outgoing inspection video provided.

12-month warranty with spare parts supply.

English manual and installation videos supplied, with online technical support directly from factory technicians.
