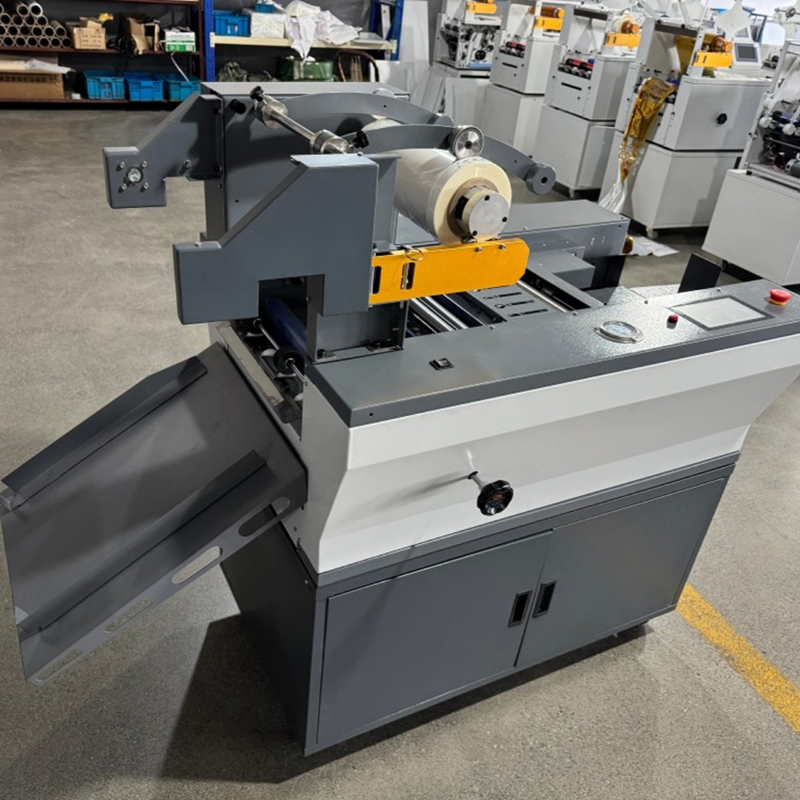

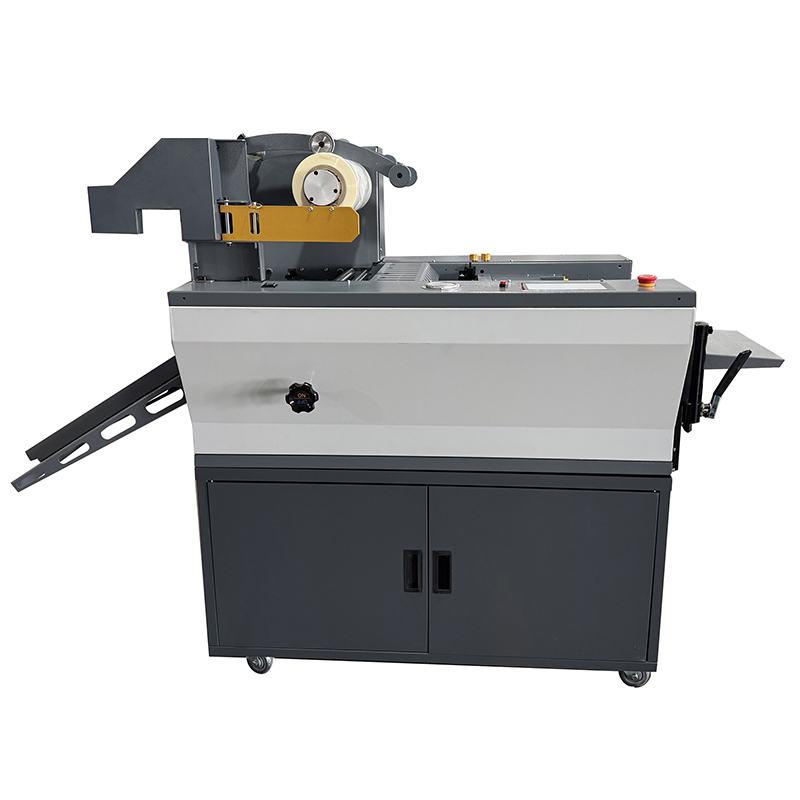

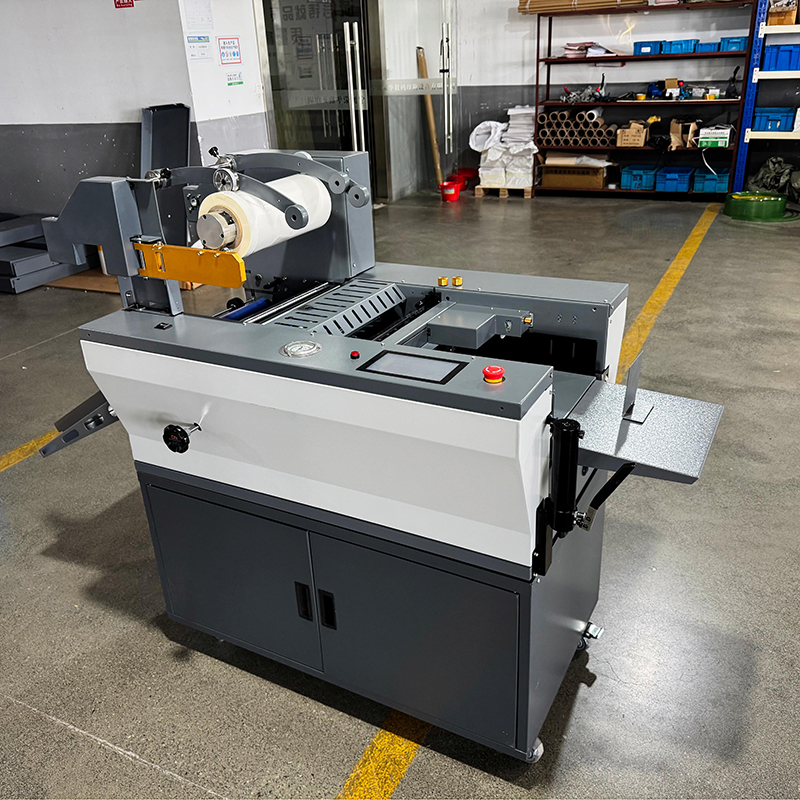

H-13 Hydraulic Pressure Control Fully Automatic Hot Roll Laminating Machine

Fully automatic Automatic paper feeding and blowing to remove static electricity; Automatic segmentation and pull-off, no need to set the paper length, no need calculation for making a bridge between each paper.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Main Features:


  • Fully automatic Automatic paper feeding and blowing to remove static electricity; Automatic segmentation and pull-off, no need to set the paper length, no need calculation for making a bridge between each paper

  • multifunctional applications H-13 can be used as at aditional laminating machine, a professional foiling machine, or a cold laminating machine, and has a waste discharge function for the old laminating base paper. The entire rocessing process is fully automated without need for intervention

  • Anti-curl technology Our unique anti-curl technology, with a control button, ensures that whatever you laminate--a menu, a book cover or a sheet of business cards--comes out flat with no curl or uplift.

  • No need compressed air Manually control the tension of the shaft, no need for additional compressed air ,making operation more convenient and less limited by working environment.

  • Smooth paper feeding The paper feeding is smooth and the problem of electrostatic adhesion is solved

  • Hydraulic pressure control More pressure available, makes laminating quality perfect for any jobs

  • User-friendly machine design The hollow design of the machine base allows for convenient placement of sheets, films, and tools. Universal wheels atthe bottom, it is easy to move the machine,very friendly for printing shops who have limit space

  • Safer heating method Using electric heating tubes for heating is safer than traditional oil pressure heating and avoids the risk of explosion

  • Film slitting function Equipped with film slitting knife, the film width can be adjusted according to customer demand

  • Fingertip Control Easy navigation touch screen, easy to understand operation




Product Parameters:


Model

H-13

Min. Paper Size

130×200mm

Max. Paper Size

330×800mm

Working Mode

Single-sided hot stamping/laminating

Heating Method

Electric tube heating

Warm-up Time

5-10 minutes

Max Laminating Speed

5m/min

Foil Temperature

50-90°C

Hot Lamination Temperature

Room temperature to 150°C

Paper Thickness

125gsm-400gsm

Mirror Roller Diameter

110mm

Film Core Diameter

3 inch

Film Diameter

280mm

Max Film Width

340mm

Display Control

7" LCD touch screen panel

Pressure Control

Hydraulic control

Paper Feeding Mode

Automatic suction paper feeding

Paper Collection

Paper collecting tray

Perforation Function

Yes

Anti-curl Technology

Yes

Separating Function

Automatic

Electric Power

1600W

Working Voltage

220-240V, 50-60HZ

Net Weight

190kgs

Gross Weight

241kgs

Machine Dimensions (L×W×H)

1865×800×1600mm
