BFT-380A Fully Automatic Paper Feeding Roll Laminating Machine

Different temperature control system of up and bottom rollers, adjustable temperature(room temp-160degree), speed for various film thickness and different material.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • BFT-380A

  • Befitter

  • 84729090


Main Features:


  • Auto Feed, Auto paper bursting after lamination

  • Non-contact infrared temperature measurement technology, more precise temperature control, better lamination finlshing;

  • Different temperature control system of up and bottom rollers, adjustable temperature(room temp-160degree), speed for various film thickness and different material;

  • LCD display, touch button operation:

  • Anti-curl single side lamination, electric adjustment for De-curling system;

  • DC geared motor, bigger torque ang power, and also prolong its service life;

  • Six grade pressure adjustment for various requirement;

  • Large paper stacking capacity

  • No paper, automatic stopping

  • Adjustable roller pressure enable different paper thickness

  • External spring type feeding table enable different size paper feeding

  • Blocking roller prevent multi-feed

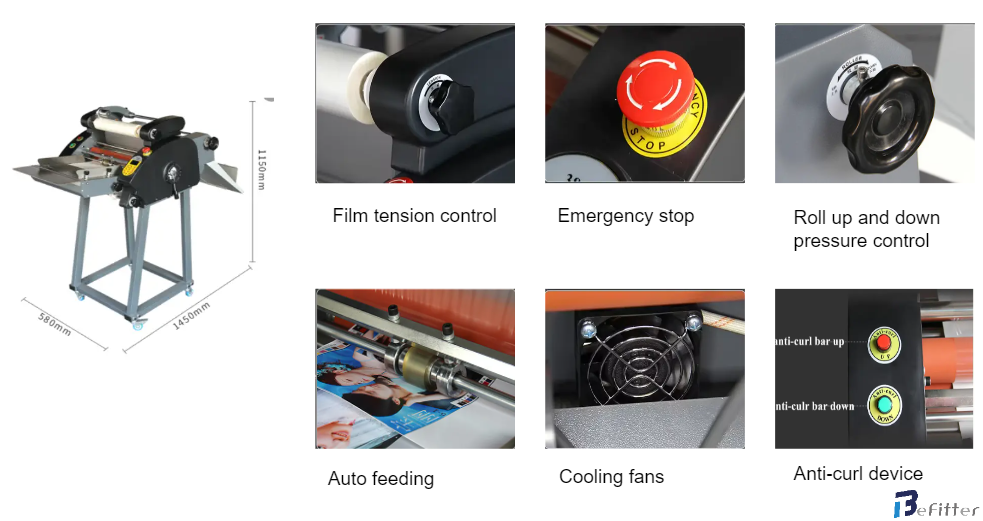

lamination machine



Product Parameters:


TModel BFT-380A
Max. laminating width 340mm
Max paper feeding width 340mm
Max. paper feeding length 50mm
Max. paper thickness 0.3mm
Max. paper stacking thickness 40mm
Max. laminating film thickness Up to 250mic
Laminating speed Up to 3m/min, 9 levels
Max. laminating thickness 7mm
Max. working temperature 160ºC
Optional film core size 25/58/76mm
Power supply AC 100V; 110V; 220-240V; 50/60Hz
Power consumption 1100W
Machine dimensions 880*630*460mm
Net Weight 90kg
Packing Size 960*700*650mm
Gross Weight 125KG

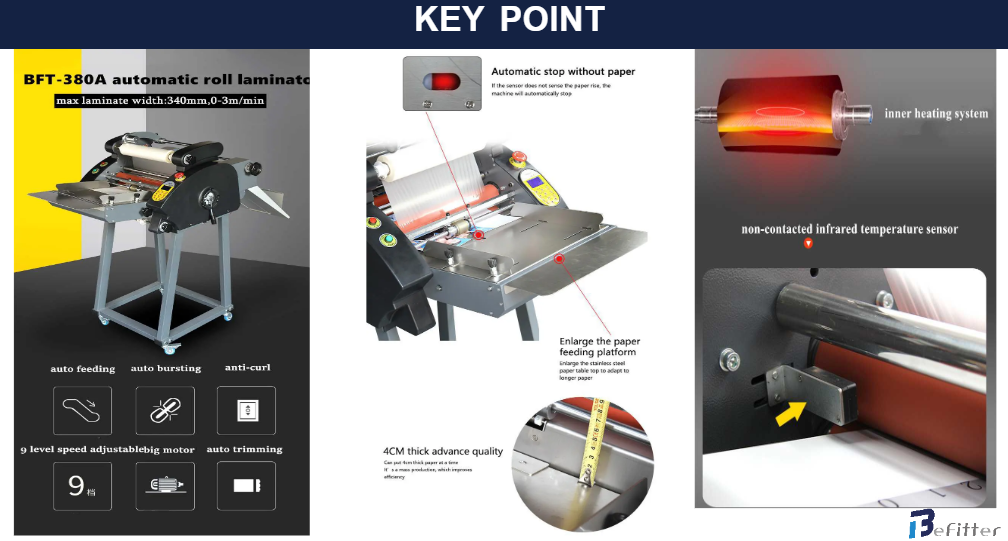

laminators lamination machine
