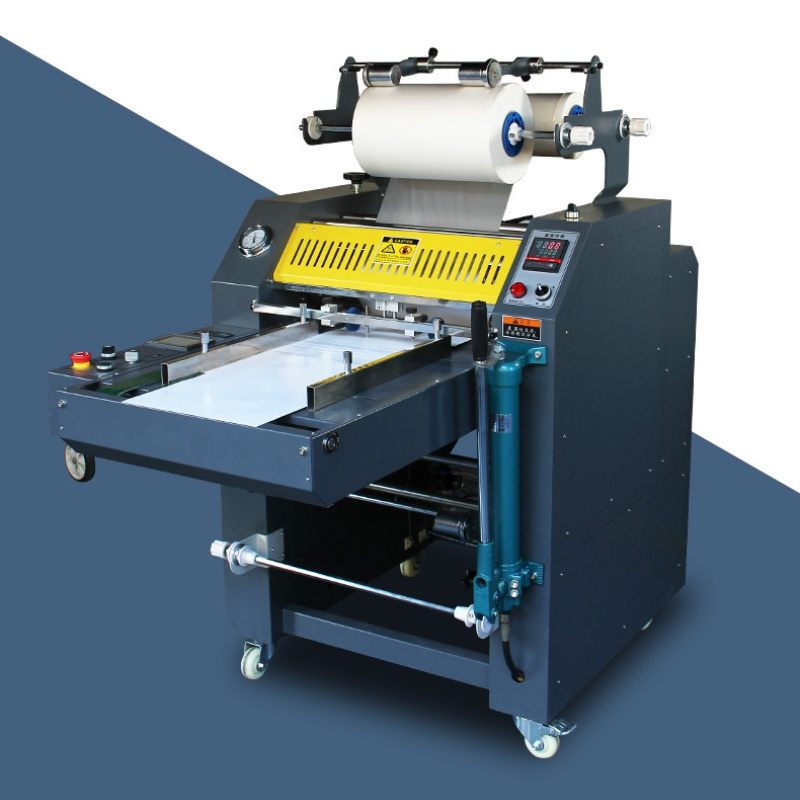

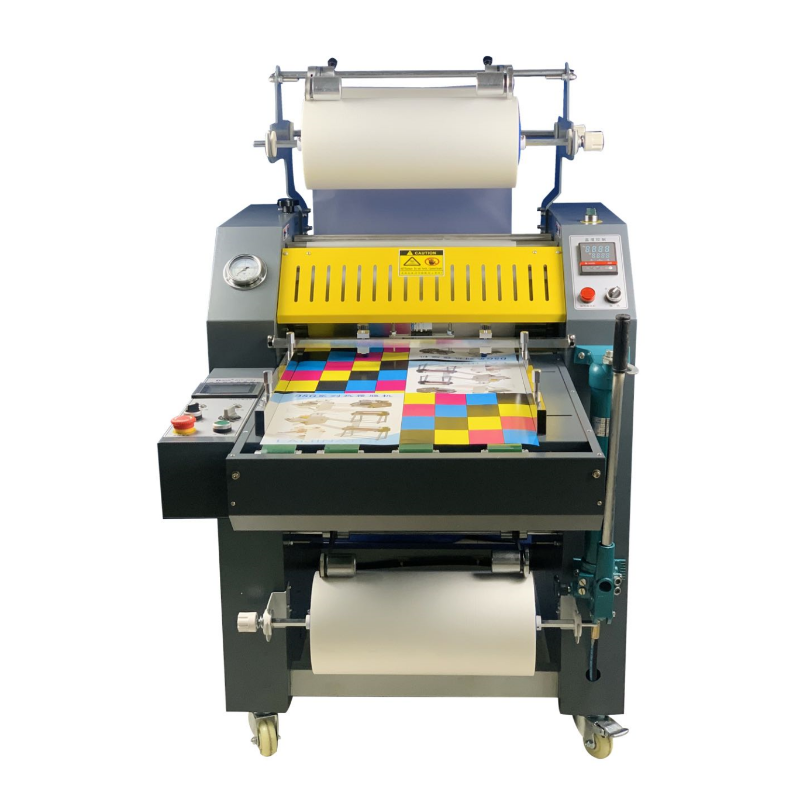

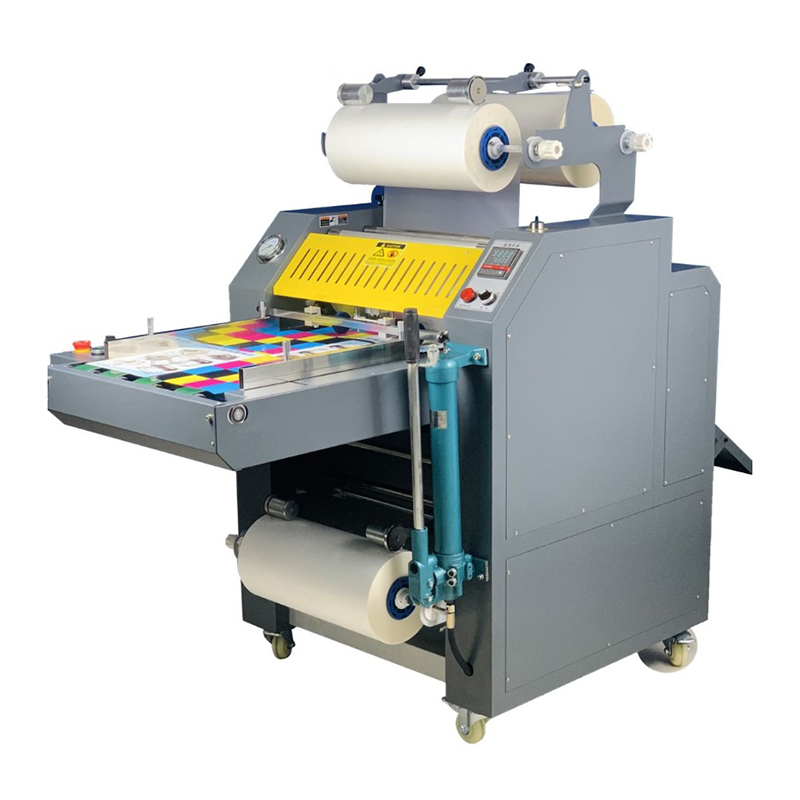

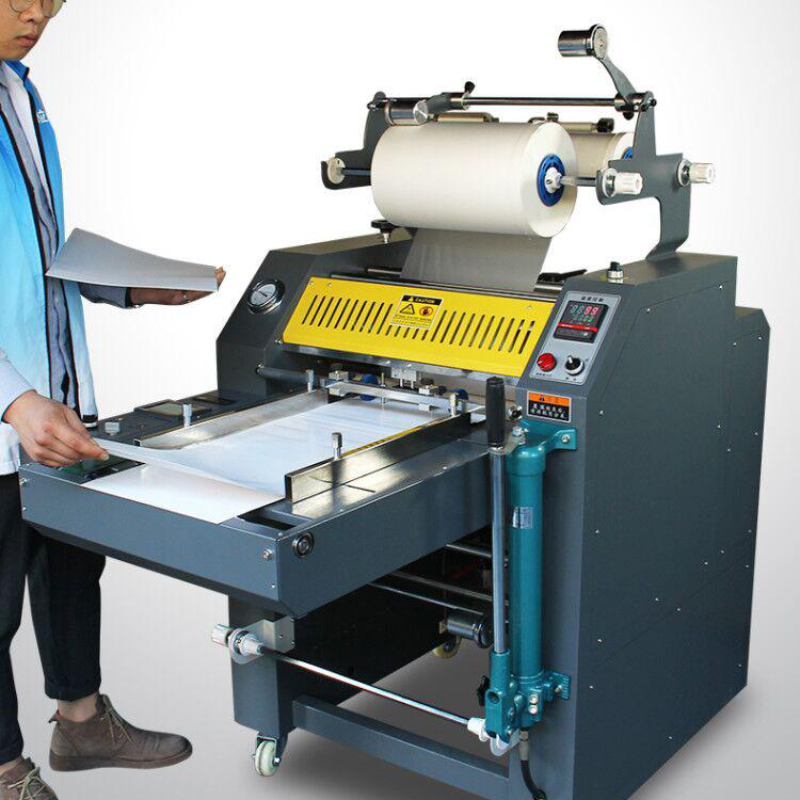

H-520MFA Heavy Duty Hydraulic Fully Automatic Laminating Machine

The H-520MFA hydraulic laminator is a compact and economical laminator. It adopts manual feeding, hydraulic system, automatic lamination, and automatic paper separation design. The hydraulic system provides large pressure to ensure good lamination quality. The excellent lamination performance completely solves the problem of snow spots in traditional lamination. While improving product quality, it also greatly reduces users' production costs.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Main Features:


  • 20mm ultra-thick tube wall mirror steel roller, high heat storage, uniform temperature, intelligent temperature control, safe and reliable.

  • Frequency conversion speed regulation, 400W gearbox speed reduction motor.

  • Manual pump hydraulic control system, shock-proof pressure display meter, and real-time pressure display.

  • Single-sided anti-curl, equipped with trimming cutter and dotted toothed knife.

  • Automatic paper feeding of synchronous conveyor belts, and automatic rolling of finished products.

  • Equipped with a dot-moving foot switch to facilitate membrane distraction.

  • The diameter of the steel roller is 200mm, and the diameter of the lower rubber roller is 135mm.

  • The rubber roller material is made of imported non-stick glue and high-temperature resistant silicone rubber



Product Parameters:


Model

H-520MFA

Laminating Width

520mm

Laminating Speed

0-15M/min

Rollers Diameter

200mm

Max.heating temperature

160℃

Heating Method

Infrared Heating by Hot Air

Heating Power

3900W

Motor Power

400W

Power Supper

AC220V/50,60HZ

Weight

480KG

Dimension

2000x950x1500mm
